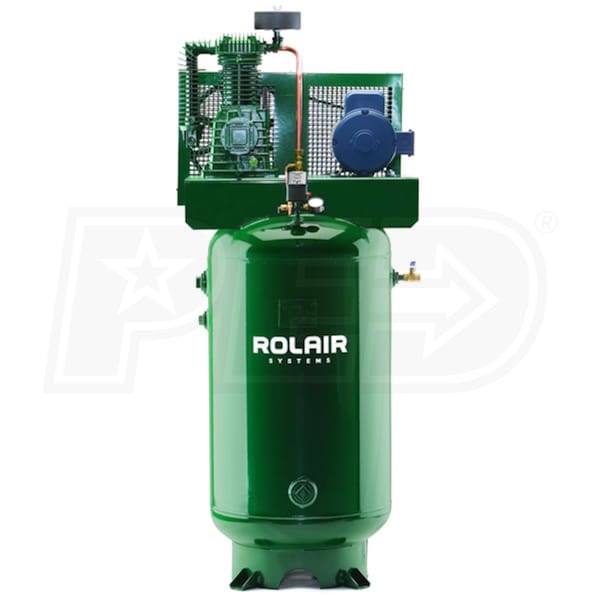

Rolair 5-HP 80-Gallon Dual-Voltage Two-Stage Air Compressor (208-230V 1-Phase)
Model:
V5180K30B-19
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
18
Tank Size
80
- 5 HP Air Compressor Runs On 208-230V Single Phase Power
- Easy to wire into your shop or garage
- Two Stage, 900 RPM Splash Lubricated Pump
- Two stage power for high demand applications
- Cast iron cylinders for durability
- Aluminum head & crankcase for faster heat dissipation
- Swedish Lammelar Reed Valves
- High quality for best performance & reliability
- Start/Stop Operation
- Pressure switch can be set for 145-175 PSI settings
- Automatic Unloading Device
- Load-less starts save wear & tear on your unit
- Easy-To-Read Pressure Gauge
- Marked 0-300 PSI in 5lb. graduations
- Totally Enclosed Multiple V-Belt Steel Belt Guard
- Protects the belt drive, and you
- Intake Filter/Silencer
- Replaceable element reduces noise
- Magnetic Starter Included On This Model
- No need to buy an additional starter
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
V5180K30B-19
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
25.6
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
495 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
30 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
UPC
662865521085
