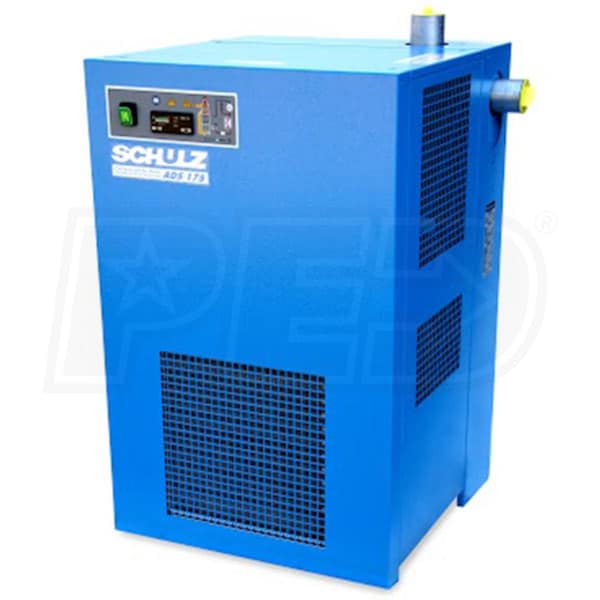

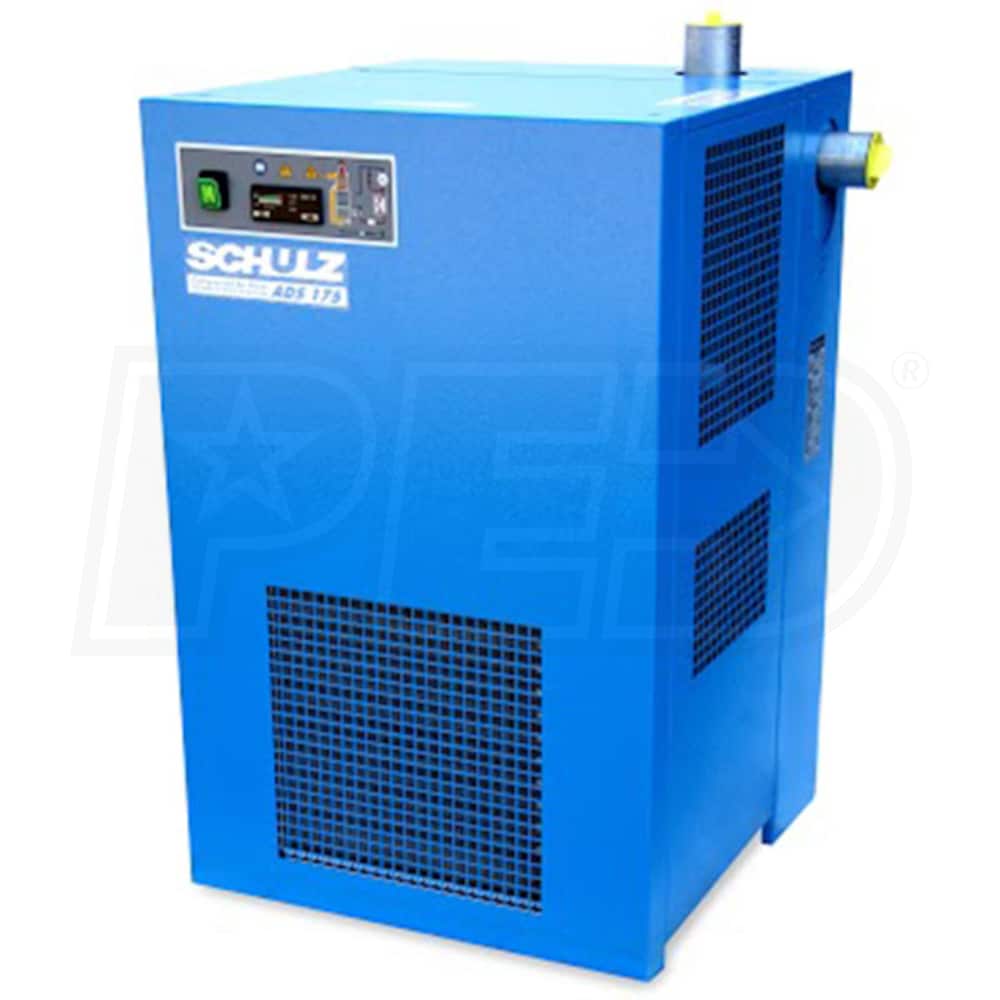

Schulz ADS 175 Non-Cycling Refrigerated Air Dryer (175 CFM 115V 1-Phase)

Model:

ADS-175

Write a Review
$2,850.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Schulz ADS 175 Non-Cycling Refrigerated Air Dryer (175 CFM 115V 1-Phase)
Schulz ADS 175 Non-Cycling Refrigerated Air Dryer (175 CFM 115V 1-Phase)
Model: ADS-175
$2,850.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Refrigerated

Air Dryer CFM

175


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Excellent Performance
  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum
  • Energy Efficient Sizing
  • Matches the compressor's displacement, saving energy

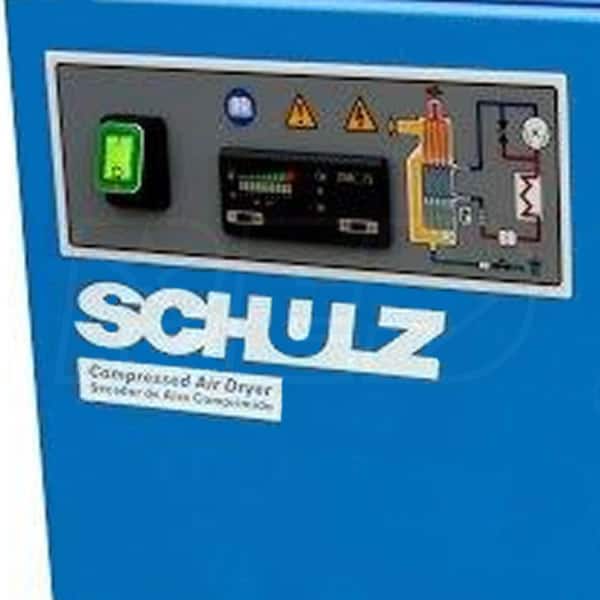

  • Electronic Controller
  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe
  • High-Efficiency Compressor
  • Circulates the refrigerant through the system
  • Totally New Design
  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 115V, single phase circuit
  • Environmentally Friendly Refrigerant
  • R407c is effective & easier on the environment
  • Compact Footprint
  • Conveniently sized 23x22x25
  • Weighs only 119 pounds; easy to install
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ADS-175
Motor
Voltage
115 Volt AC
Phase
1-Phase
Filter
High Efficiency
Yes
Air Dryer
Air Dryer CFM
175
Max PSI
203
Max Inlet Temp. Rating
100
Max Ambient Temp. Rating
113
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
119 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
23 Inches
Product Width
22 Inches
Product Height
25 Inches
Power Type
Electric
