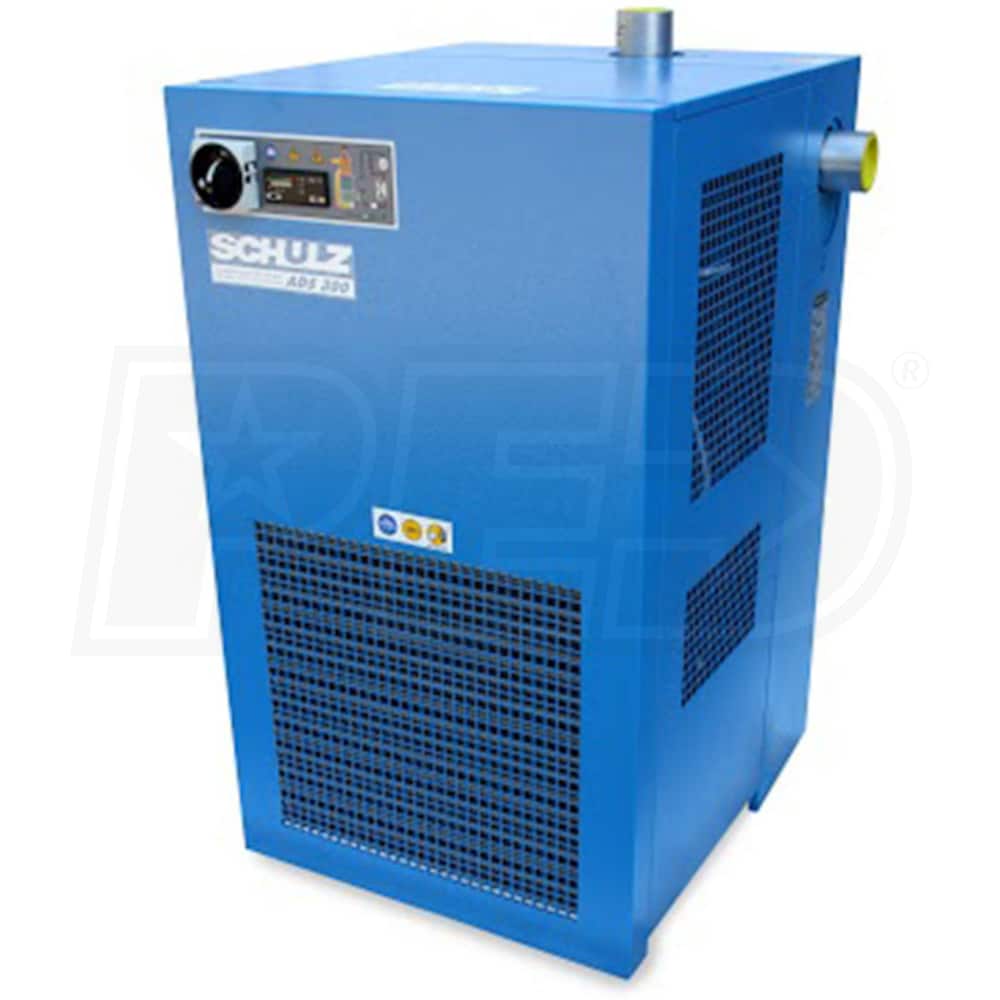

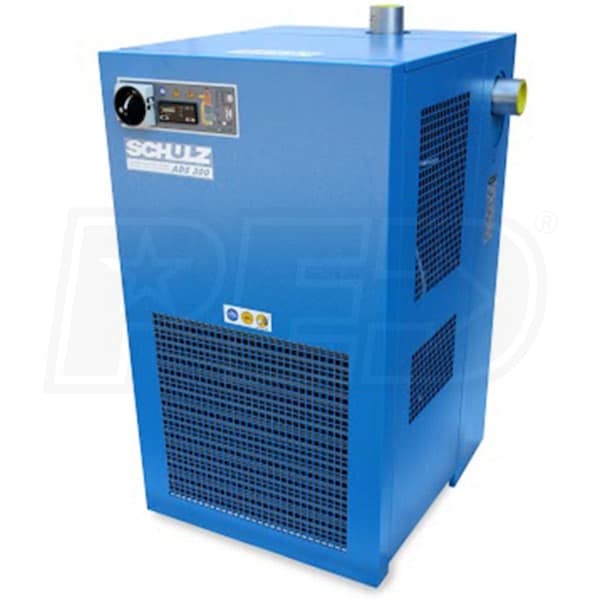

Schulz ADS 300 Non-Cycling Refrigerated Air Dryer (300 CFM 230V 1-Phase)
Model: ADS-300
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$4,350.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Refrigerated
Air Dryer CFM
300
Style
Refrigerated
Air Dryer CFM
300


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Excellent Performance
  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum
  • Energy Efficient Sizing
  • Matches the compressor's displacement, saving energy
  • Electronic Controller
  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe
  • High-Efficiency Compressor
  • Circulates the refrigerant through the system
  • Totally New Design
  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 230V, single phase circuit
  • Environmentally Friendly Refrigerant
  • R407c is effective & easier on the environment
  • Compact Footprint
  • Conveniently sized 25x22x39
  • Weighs only 207 pounds; easy to install
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Filter
High Efficiency
Yes
Air Dryer
Air Dryer CFM
300
Max PSI
203
Max Inlet Temp. Rating
100
Max Ambient Temp. Rating
113
Non-Cycling
Yes
Inlet Fittings
2"
Outlet Fittings
2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
207 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
22 Inches
Product Height
39 Inches
Power Type
Electric
Style
Refrigerated
Air Dryer CFM
300
Style
Refrigerated
Air Dryer CFM
300


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Excellent Performance
  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum
  • Energy Efficient Sizing
  • Matches the compressor's displacement, saving energy
  • Electronic Controller
  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe
  • High-Efficiency Compressor
  • Circulates the refrigerant through the system
  • Totally New Design
  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 230V, single phase circuit
  • Environmentally Friendly Refrigerant
  • R407c is effective & easier on the environment
  • Compact Footprint
  • Conveniently sized 25x22x39
  • Weighs only 207 pounds; easy to install
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Filter
High Efficiency
Yes
Air Dryer
Air Dryer CFM
300
Max PSI
203
Max Inlet Temp. Rating
100
Max Ambient Temp. Rating
113
Non-Cycling
Yes
Inlet Fittings
2"
Outlet Fittings
2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
207 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
22 Inches
Product Height
39 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Filter
High Efficiency
Yes
Air Dryer
Air Dryer CFM
300
Max PSI
203
Max Inlet Temp. Rating
100
Max Ambient Temp. Rating
113
Non-Cycling
Yes
Inlet Fittings
2"
Outlet Fittings
2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
207 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
22 Inches
Product Height
39 Inches
Power Type
Electric
