Product Description
+−
Style
N/A
Style
Air Dryer CFM
60
Air Dryer CFM
60
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features

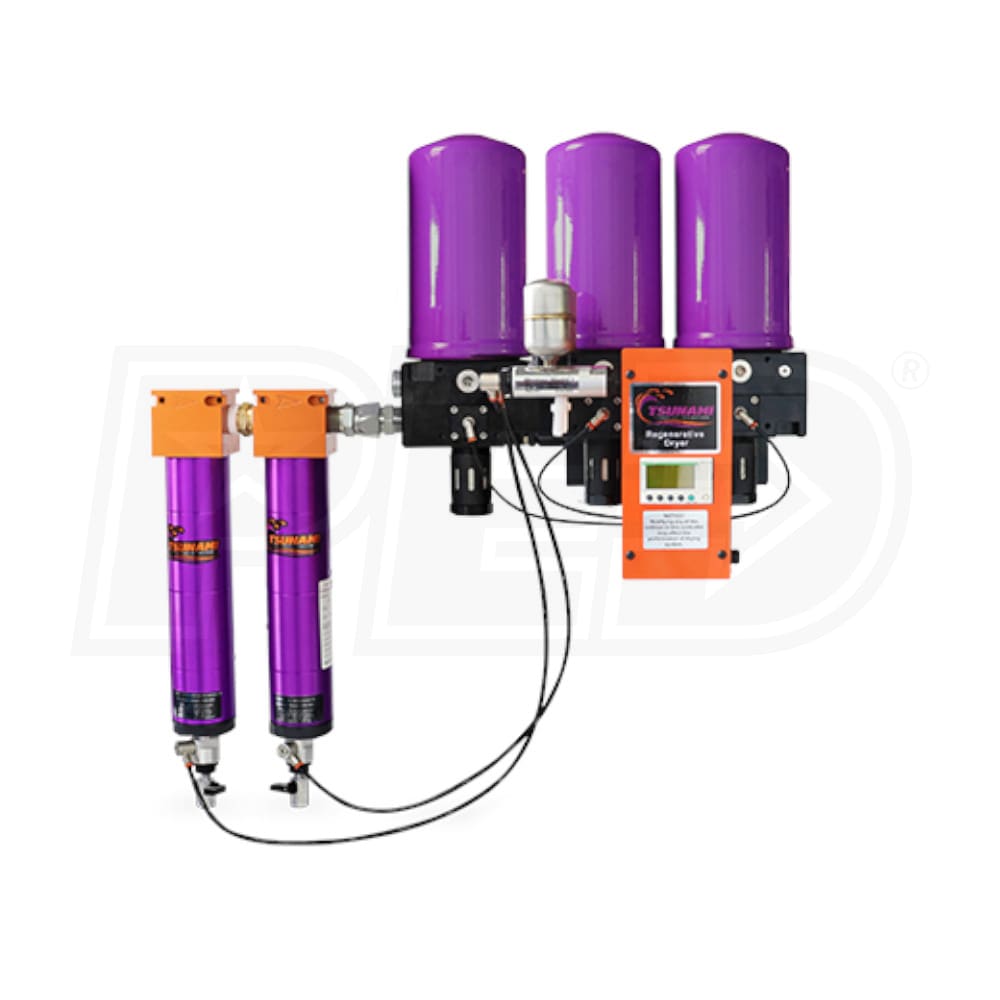

- Tsunami 60 CFM Regenerative Dryer System
- Delivers very dry, clean air down to -40°F dew point
- Handles up to 150°F inlet air temperature
- Molecular Sieve Media
- Doesn't break down like desiccant silica gel dryers
- Typical life span is 3 to 5 years before it needs replacement
- Lowest operating cost & maintenance of any dryer
- Compact, Expandable Design

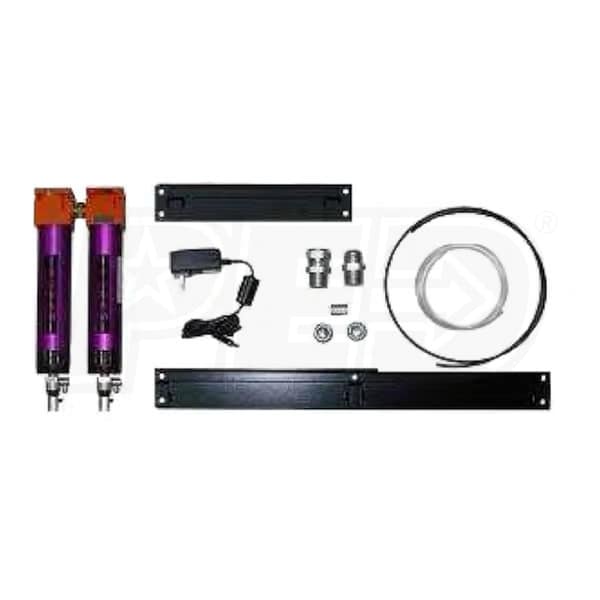

- Comes complete with pre-filter, auto drains, & mount bracket
- Installs in minutes between receiver tank and piping
- Great for mobile operations; auto paint, powder coating, etc.
- LED Display
- Indicates when maintenance is needed on oil filter element
- Programmable Logic Controller (PLC)
- Controls the cycling of the dryers for efficient operation
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- 1" Inlet & Outlet Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 110 volt outlet
Specifications
Engine
HP
15
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
60
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
1.1 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
23 Inches
Product Width
12 Inches
Product Height
31 Inches
Power Type
Electric
Style
N/A
Style
Air Dryer CFM
60
Air Dryer CFM
60
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tsunami 60 CFM Regenerative Dryer System
- Delivers very dry, clean air down to -40°F dew point
- Handles up to 150°F inlet air temperature
- Molecular Sieve Media
- Doesn't break down like desiccant silica gel dryers
- Typical life span is 3 to 5 years before it needs replacement
- Lowest operating cost & maintenance of any dryer
- Compact, Expandable Design
- Comes complete with pre-filter, auto drains, & mount bracket
- Installs in minutes between receiver tank and piping
- Great for mobile operations; auto paint, powder coating, etc.
- LED Display
- Indicates when maintenance is needed on oil filter element
- Programmable Logic Controller (PLC)
- Controls the cycling of the dryers for efficient operation
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- 1" Inlet & Outlet Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 110 volt outlet
Specifications
Engine
HP
15
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
60
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
1.1 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
23 Inches
Product Width
12 Inches
Product Height
31 Inches
Power Type
Electric
Product Specs
+−
Specifications
Engine
HP
15
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
60
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
1.1 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
23 Inches
Product Width
12 Inches
Product Height
31 Inches
Power Type
Electric
