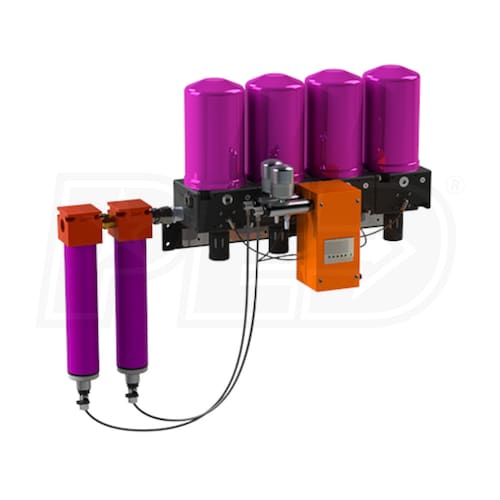

Tsunami 1" Ultra Series 20-HP Regenerative Air Dryer (80 CFM)

Model:

21999-0720

Recommended
Write a Review
$5,375.56
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Tsunami 1
Tsunami 1" Ultra Series 20-HP Regenerative Air Dryer (80 CFM)
Model: 21999-0720
$5,375.56
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

N/A

Air Dryer CFM

80


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Tsunami 80 CFM Regenerative Dryer System
  • Delivers very dry, clean air down to -40°F dew point
  • Handles up to 150°F inlet air temperature
  • Molecular Sieve Media
  • Doesn't break down like desiccant silica gel dryers
  • Typical life span is 3 to 5 years before it needs replacement
  • Lowest operating cost & maintenance of any dryer
  • Compact, Expandable Design

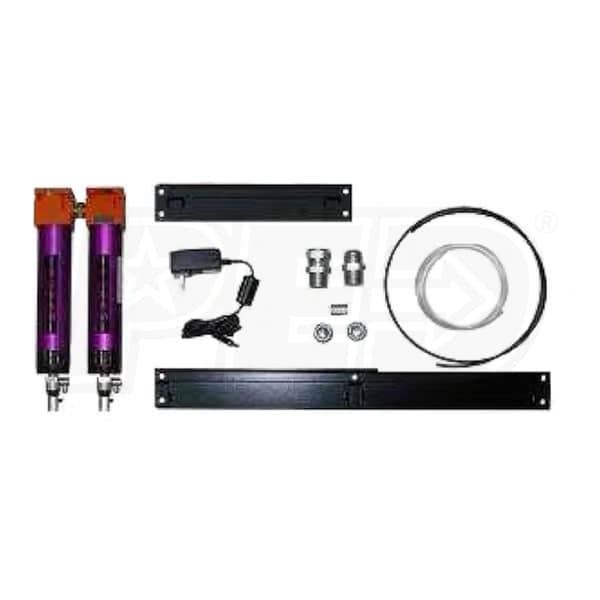

  • Comes complete with pre-filter, auto drains, & mount bracket
  • Installs in minutes between receiver tank and piping
  • Great for mobile operations; auto paint, powder coating, etc.
  • LED Display
  • Indicates when maintenance is needed on oil filter element
  • Programmable Logic Controller (PLC)

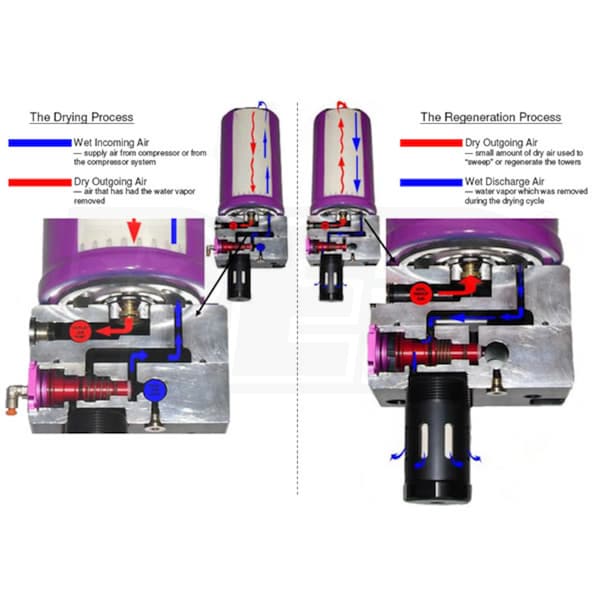

  • Controls the cycling of the dryers for efficient operation
  • Moisture Minder Pneumatic Drains
  • Automatically eliminates water & oil in the filter sumps
  • 1" Inlet & Outlet Connectors
  • Maximum inlet pressure is 175 PSI
  • Requires connection to 110 volt outlet
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

21999-0720
specs product image PID-11627
Engine
HP
20
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
80
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
110 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
23 Inches
Product Width
12 Inches
Product Height
31 Inches
Power Type
Electric
