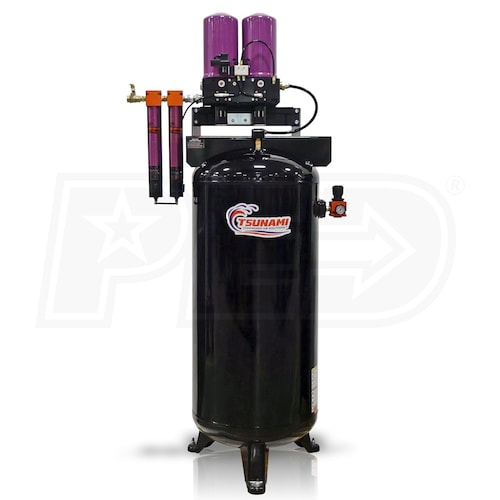

Tsunami Pure-10T Series 10-HP 60-Gallon Tank Mounted Regenerative Air Dryer (40 CFM) w/ Moisture Minder Pneumatic Drain (120V)
Model: 21999-0955
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
N/A
Style
Tank Size
60
Gallons
Air Dryer CFM
40
Tank Size
60 Gallons
Air Dryer CFM
40
Features
Features
- Tsunami 40 CFM Tank Mounted Regenerative Dryer System
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
- Compact, Expandable Design
- Comes complete with pre-filter, auto drains, & mount bracket
- Great for mobile operations; auto paint, powder coating, etc.
- Stage 1: Water Separator
- Water and particulates are removed down to 10 micron
- Stage 2: Oil Coalescing Filter
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- 1/2 " Inlet & 1/2” Tank Outlet NPT Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 120-volt outlet
- Handles up to 150°F inlet air temperature
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- 60-Gallon Air Tank
- Allows compressed air system to increase capacity by storing
- Ready-to-use air w/ regulator and pressure gauge
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Tank Orientation
Vertical
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Air Dryer CFM
40
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
190 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
72 Inches
Product Depth
36 Inches
Product Width
24 Inches
Power Type
Electric
Style
N/A
Style
Tank Size
60
Gallons
Air Dryer CFM
40
Tank Size
60 Gallons
Air Dryer CFM
40
Features
Features
- Tsunami 40 CFM Tank Mounted Regenerative Dryer System
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
- Compact, Expandable Design
- Comes complete with pre-filter, auto drains, & mount bracket
- Great for mobile operations; auto paint, powder coating, etc.
- Stage 1: Water Separator
- Water and particulates are removed down to 10 micron
- Stage 2: Oil Coalescing Filter
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- 1/2 " Inlet & 1/2” Tank Outlet NPT Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 120-volt outlet
- Handles up to 150°F inlet air temperature
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- 60-Gallon Air Tank
- Allows compressed air system to increase capacity by storing
- Ready-to-use air w/ regulator and pressure gauge
