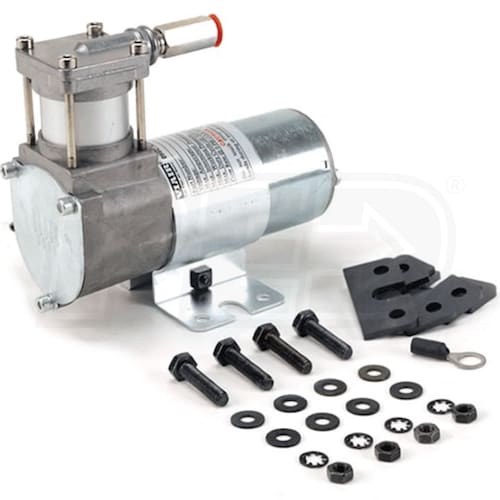

VIAIR 98C 12-Volt 130-PSI Air Compressor Kit (10% Duty Cycle @ 100 PSI) w/ Omega Mounting Bracket
Model: 00098
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
DC Compressors
CFM
.54
CFM Rated @ 90 PSI
Tank Size
0
Gallons
Grade
Consumer
CFM
.54 CFM Rated @ 90 PSI
Tank Size
0 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Dependable 12-Volt Permanent Magnetic Motor
  • A light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank
  • Check valve is included; use of a pressure switch & 12V relay is recommended
  • 10% At 100 PSI Duty Cycle
  • Work for up to 6 minutes on, 54 minutes off per hour
  • 12 amp maximum 12-volt amp draw; 20 amp recommended fuse
  • Quickly & efficiently puts out 1.53 CFM flow at zero PSI head pressure; .54 CFM @ 90 PSI
  • Compact & Versatile
  • Weighs only 2.55 pounds, measures 5.6″L x 3.1″W x 4.7″H
  • Run in a well ventilated area, works best with engine running
  • Recommended torque for 1/8" fittings is 10-11 ft.lbs.
  • Omega Bracket Mounting Hardware & Vibration Isolators Included
  • Use thread sealant for proper installation, teflon tape not recommended
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Magnetic Starter
Yes
Amp Draw
12
Pump
CFM
.54
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
130 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
10%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
2.55 Pounds
Consumer Warranty
1 Year
Product Length
5.6 Inches
Product Width
3.1 Inches
Product Height
4.7 Inches
Power Type
Electric
UPC
818114000980
Additional Model Numbers
98, 00098
Grade
Consumer
Style
DC Compressors
CFM
.54
CFM Rated @ 90 PSI
Tank Size
0
Gallons
Grade
Consumer
CFM
.54 CFM Rated @ 90 PSI
Tank Size
0 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Dependable 12-Volt Permanent Magnetic Motor
  • A light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank
  • Check valve is included; use of a pressure switch & 12V relay is recommended
  • 10% At 100 PSI Duty Cycle
  • Work for up to 6 minutes on, 54 minutes off per hour
  • 12 amp maximum 12-volt amp draw; 20 amp recommended fuse
  • Quickly & efficiently puts out 1.53 CFM flow at zero PSI head pressure; .54 CFM @ 90 PSI
  • Compact & Versatile
  • Weighs only 2.55 pounds, measures 5.6″L x 3.1″W x 4.7″H
  • Run in a well ventilated area, works best with engine running
  • Recommended torque for 1/8" fittings is 10-11 ft.lbs.
  • Omega Bracket Mounting Hardware & Vibration Isolators Included
  • Use thread sealant for proper installation, teflon tape not recommended
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Magnetic Starter
Yes
Amp Draw
12
Pump
CFM
.54
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
130 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
10%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
2.55 Pounds
Consumer Warranty
1 Year
Product Length
5.6 Inches
Product Width
3.1 Inches
Product Height
4.7 Inches
Power Type
Electric
UPC
818114000980
Additional Model Numbers
98, 00098
Product Specs
+
Specifications
Motor
Voltage
12 Volt DC
Magnetic Starter
Yes
Amp Draw
12
Pump
CFM
.54
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
130 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
10%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
2.55 Pounds
Consumer Warranty
1 Year
Product Length
5.6 Inches
Product Width
3.1 Inches
Product Height
4.7 Inches
Power Type
Electric
UPC
818114000980
Additional Model Numbers
98, 00098
