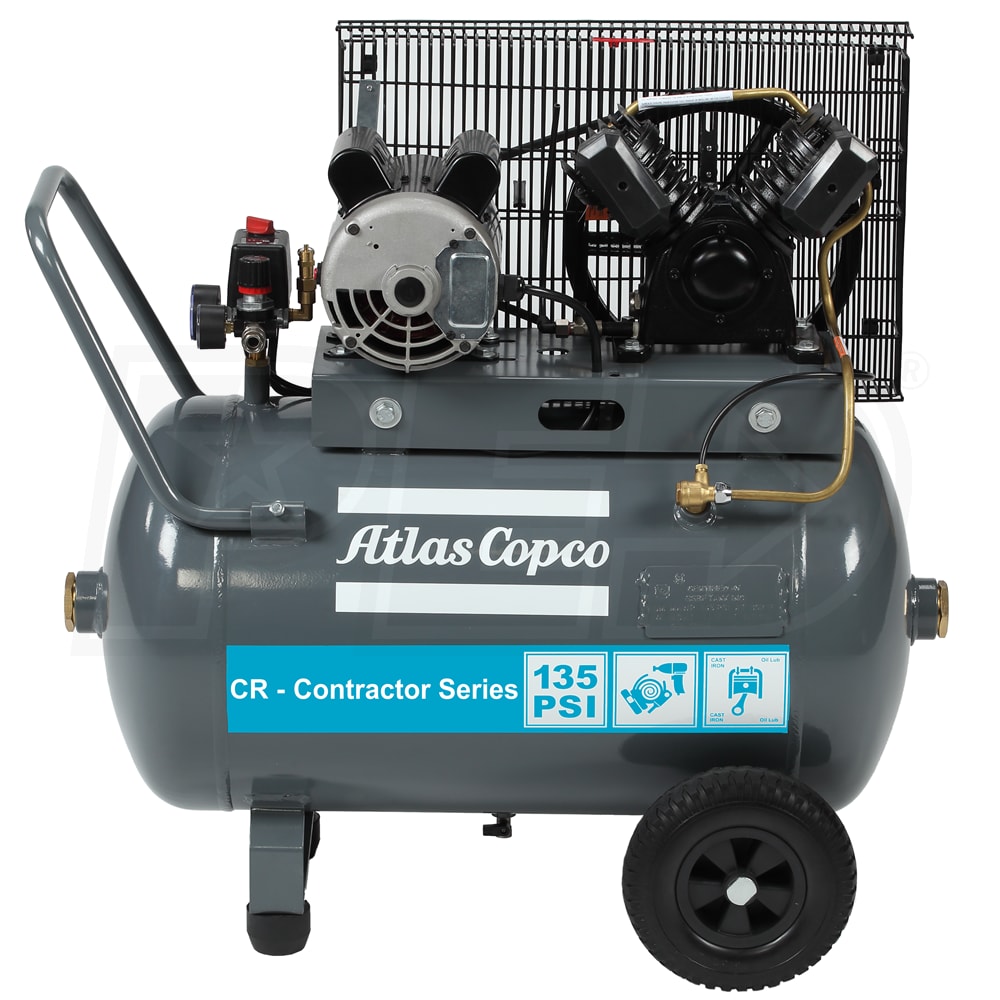

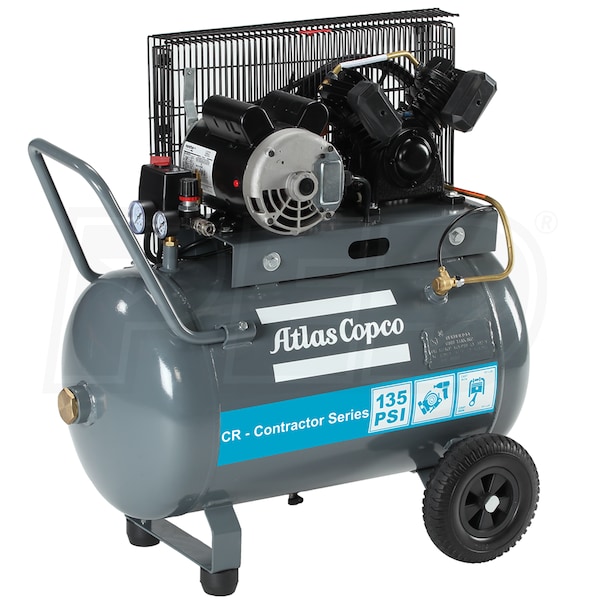

Atlas Copco CR2-SS Contractor 2-HP 23-Gallon Single-Stage Air Compressor (115V 1-Phase)
Model: 1129740046
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
3.4
CFM Rated @ 100 PSI
Tank Size
24
Gallons
Grade
Commercial
CFM
3.4 CFM Rated @ 100 PSI
Tank Size
24 Gallons
Features
Features
- Newly Designed Single-Stage Portable CR Contractor Series
- Provides affordable compressed air in a small, lightweight package
- Perfect for contractors, automotive shops and light manufacturing
- Splash Lubricated Cast Iron Pump
- Oil sight gauge simplies readings
- More durable & longer service life than aluminum pumps
- Minimizes vibration, improves cooling, extends compressor life
- Low-Profile Design
- Semi-pneumatic wheel handles rough terrain with ease
- Front grab-handle for easy loading & transport
- Belt Drive w/ Heavy Gauge Wire Belt Guard
- Provides more power, easy to maintain
- Fully enclosed belt guard and ASME safety valves
- Durable ODP Single-Phase Motor
- Runs cooler to prevent overheating
- Open drip proof motors tend to be slightly more efficient because windings are cooler
- Full Cast-Iron Construction
- Can handle the most demanding conditions
- Ensures durability and reliability for the most demanding applications
- 23-Gallon Air Tank w/ Front Mounted Controls
- Dual gauges so you can check tank & tool pressure at a glance
- 1/4" air outlet with a quick connector for fast hose changes
- Air pressure switch allows air compressor to run at its most efficient capacity with on/off button
- Standard 2-Year Bumper To Bumper Warranty
- No start-up kit required
- Covers defect in materials & workmanship
Specifications
Engine
HP
2
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
3.4
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
140 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
150 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
33 Inches
Product Height
33 Inches
Power Type
Electric
Grade

Style

CFM
3.4
CFM Rated @ 100 PSI
Tank Size
24
Gallons
Grade
Commercial
CFM
3.4 CFM Rated @ 100 PSI
Tank Size
24 Gallons
Features
Features
- Newly Designed Single-Stage Portable CR Contractor Series
- Provides affordable compressed air in a small, lightweight package
- Perfect for contractors, automotive shops and light manufacturing
- Splash Lubricated Cast Iron Pump
- Oil sight gauge simplies readings
- More durable & longer service life than aluminum pumps
- Minimizes vibration, improves cooling, extends compressor life
- Low-Profile Design
- Semi-pneumatic wheel handles rough terrain with ease
- Front grab-handle for easy loading & transport
- Belt Drive w/ Heavy Gauge Wire Belt Guard
- Provides more power, easy to maintain
- Fully enclosed belt guard and ASME safety valves
- Durable ODP Single-Phase Motor
- Runs cooler to prevent overheating
- Open drip proof motors tend to be slightly more efficient because windings are cooler
- Full Cast-Iron Construction
- Can handle the most demanding conditions
- Ensures durability and reliability for the most demanding applications
- 23-Gallon Air Tank w/ Front Mounted Controls
- Dual gauges so you can check tank & tool pressure at a glance
- 1/4" air outlet with a quick connector for fast hose changes
- Air pressure switch allows air compressor to run at its most efficient capacity with on/off button
- Standard 2-Year Bumper To Bumper Warranty
- No start-up kit required
- Covers defect in materials & workmanship
Specifications
Engine
HP
2
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
3.4
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
140 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
150 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
33 Inches
Product Height
33 Inches
Power Type
Electric
Product Specs
+−
Specifications
Engine
HP
2
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
3.4
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
140 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
150 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
33 Inches
Product Height
33 Inches
Power Type
Electric
