Features
Grade
Contractor
Style
Portable - Horizontal
CFM
7.1
Tank Size
20

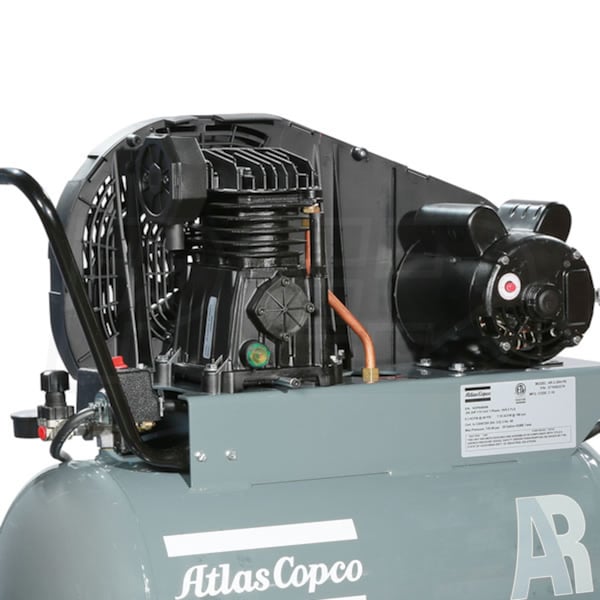

- Hybrid Cast Iron and Aluminum Compressor Pump
- Slow-speed belt-drive compressor pump unit with finned cylinder delivers maximum performance
- Efficient Air Filter
- Highly efficient & easily accessible air filter for "clean" operation & longer lifetime
- Standard Magnetic Starter
- Easy starts; protects the motor
- Start-Stop Pressure Switch Control
- 7.1 CFM at 100 PSI with 145 PSI maximum
- Built-In Aftercooler
- Runs cooler, lasts longer
- 20 Gallon Air Tank
- ASME rated for safety; 1/4" air outlet
- Oversized Wheels
- Easily take on varied terrain
- 2 Year Bumper-To-Bumper Warranty
- Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
9710502278

Motor
Voltage
115 Volt AC
Phase
1-Phase
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
7.1
CFM Rated @
100 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
155 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
35 Inches
Product Width
20 Inches
Product Height
32 Inches
Power Type
Electric
Additional Model Numbers
AR-P24-2-115-1-20H, 9710502278
