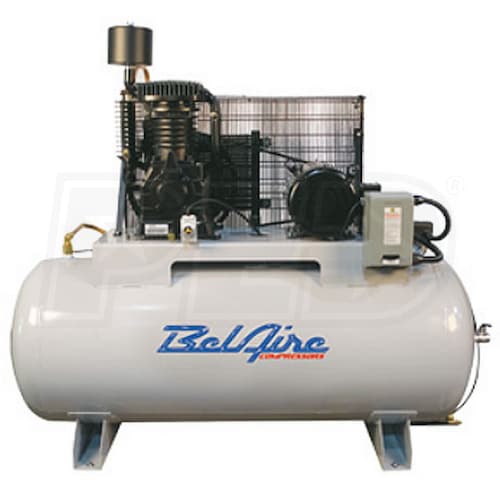

BelAire 7.5-HP 80-Gallon Two Stage Air Compressor (208-230V 1-Phase)

BelAire 7.5-HP 80-Gallon Two Stage Air Compressor (208-230V 1-Phase)
Model: 318HL
$2,199.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Free ShippingNo Sales Tax* (Except IL)$2,199.00Buy Now
No Sales Tax* (Except IL)$2,274.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
22.9
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.9 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Solid Cast Iron Cylinder Sleeve 2 Stage Pump
  • Delivers 22.3 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 208 Volt Or 230 Volt Single Phase Power
  • Easily wires into either your 208V-1 or 230V-1 system
  • CPXHT25 dryer recommended (not included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
60 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.9
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
538 Pounds
Product Length
71 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Grade
Commercial
Style
Two Stage 1-Phase
CFM
22.9
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.9 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Solid Cast Iron Cylinder Sleeve 2 Stage Pump
  • Delivers 22.3 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 208 Volt Or 230 Volt Single Phase Power
  • Easily wires into either your 208V-1 or 230V-1 system
  • CPXHT25 dryer recommended (not included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
60 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.9
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
538 Pounds
Product Length
71 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
60 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.9
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
538 Pounds
Product Length
71 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
