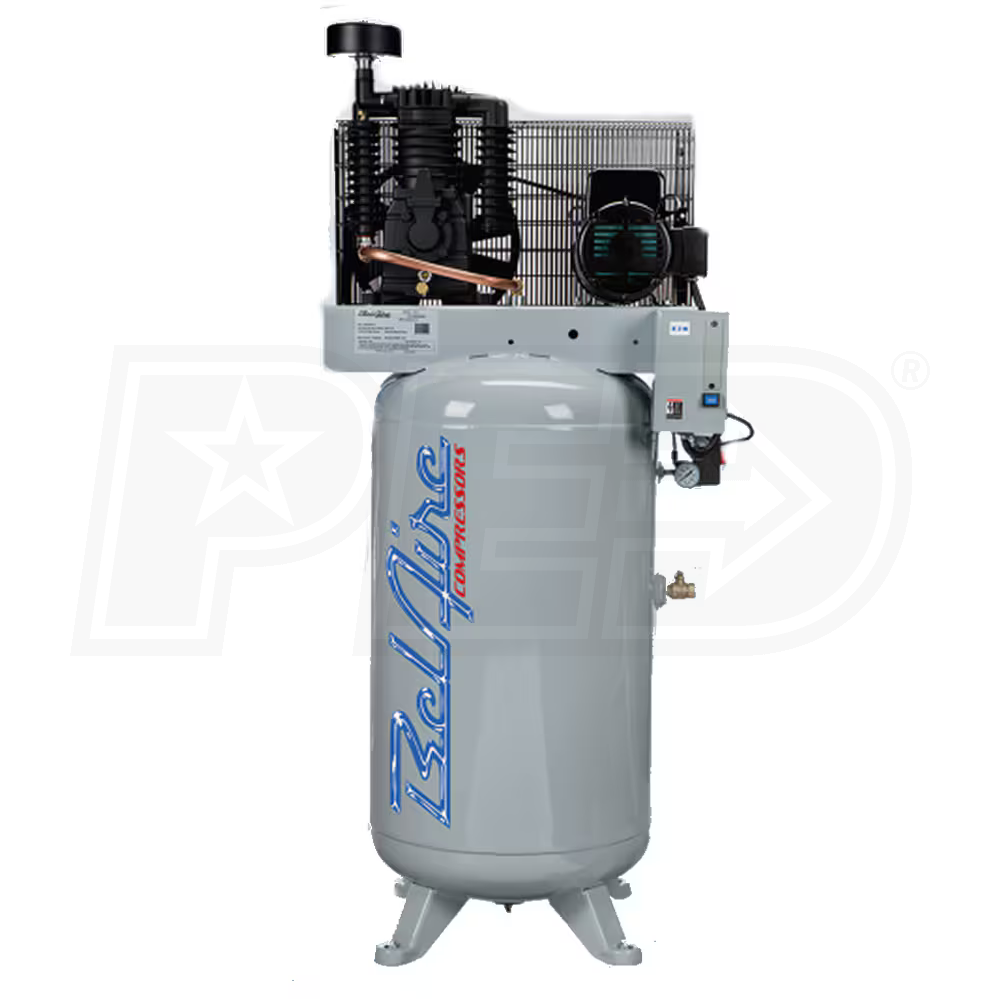

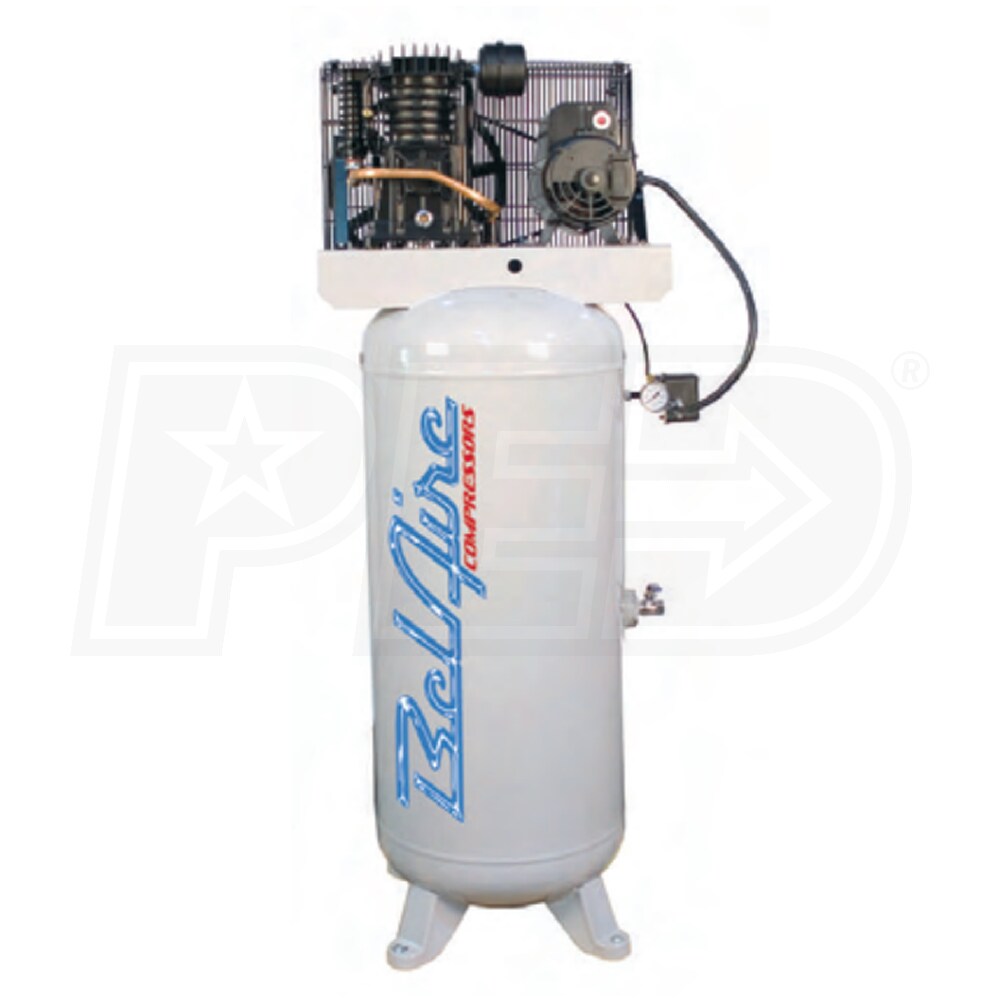

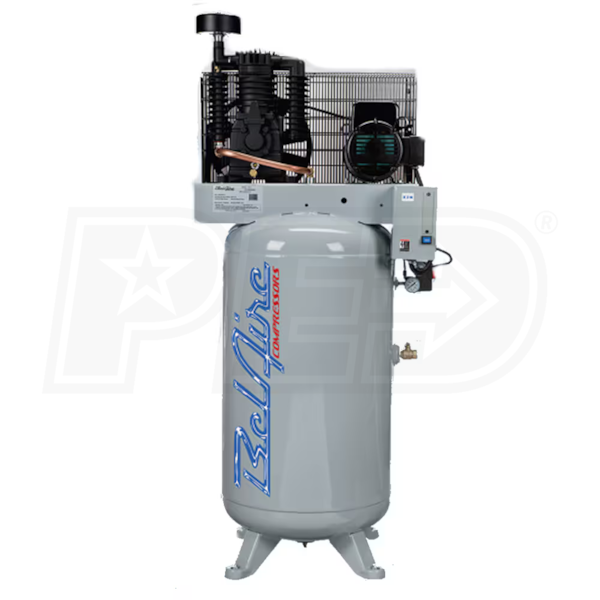

BelAire 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
BelAire 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
18.5
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
18.5 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
- Solid Cast Iron Cylinder Sleeve 2 Stage Pump
- Delivers 18.5 CFM at 100 PSI; 16.6 CFM at 175 PSI
- Rugged components provide long-lasting dependability
- Start / Stop Pressure Switch Controls
- Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4" air outlet; 175 PSI maximum pressure
- 2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
- Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
- Manual Air Tank Drain
- Makes tank simple to maintain
- 208 Volt Or 230 Volt Single Phase Power
- Easily wires into either your 208V-1 or 230V-1 system
- CPXHT25 dryer recommended (not included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
457 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
