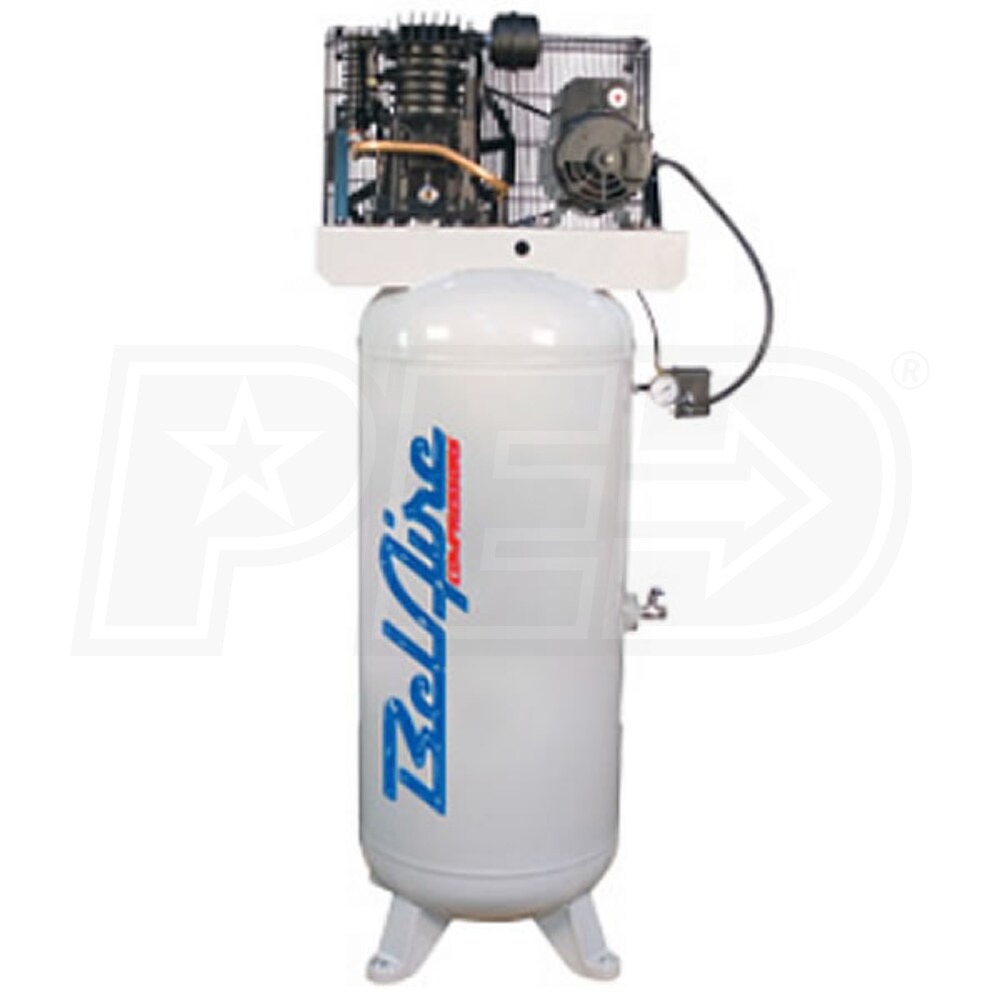

BelAire Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)

BelAire Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 338VE4
$2,199.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Free ShippingNo Sales Tax* (Except IL)$2,199.00Buy Now
No Sales Tax* (Except IL)$2,274.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
18.5
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Features
Features
  • Solid Cast Iron Cylinder Sleeve 2-Stage Pump
  • Delivers 18.5 CFM at 100 PSI
  • CPXHT25 dryer recommended (not included)
  • Elite Series Triple Pass Pump-Mounted Aftercooler
  • Cooler air helps your equipment last longer
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • Elite Series Automatic Tank Drain
  • Makes tank maintenance effortless
  • Elite Series Low Oil Switch
  • Protects the pump; sight glass for easy maintenance
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • 460 Volt Three-Phase Power
  • Easily wires into your 460V-3 system
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
453 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
18.5
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Features
Features
  • Solid Cast Iron Cylinder Sleeve 2-Stage Pump
  • Delivers 18.5 CFM at 100 PSI
  • CPXHT25 dryer recommended (not included)
  • Elite Series Triple Pass Pump-Mounted Aftercooler
  • Cooler air helps your equipment last longer
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • Elite Series Automatic Tank Drain
  • Makes tank maintenance effortless
  • Elite Series Low Oil Switch
  • Protects the pump; sight glass for easy maintenance
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • 460 Volt Three-Phase Power
  • Easily wires into your 460V-3 system
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
453 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
453 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this BelAire product.
Product Q&A
+
Be the first to ask a question.
