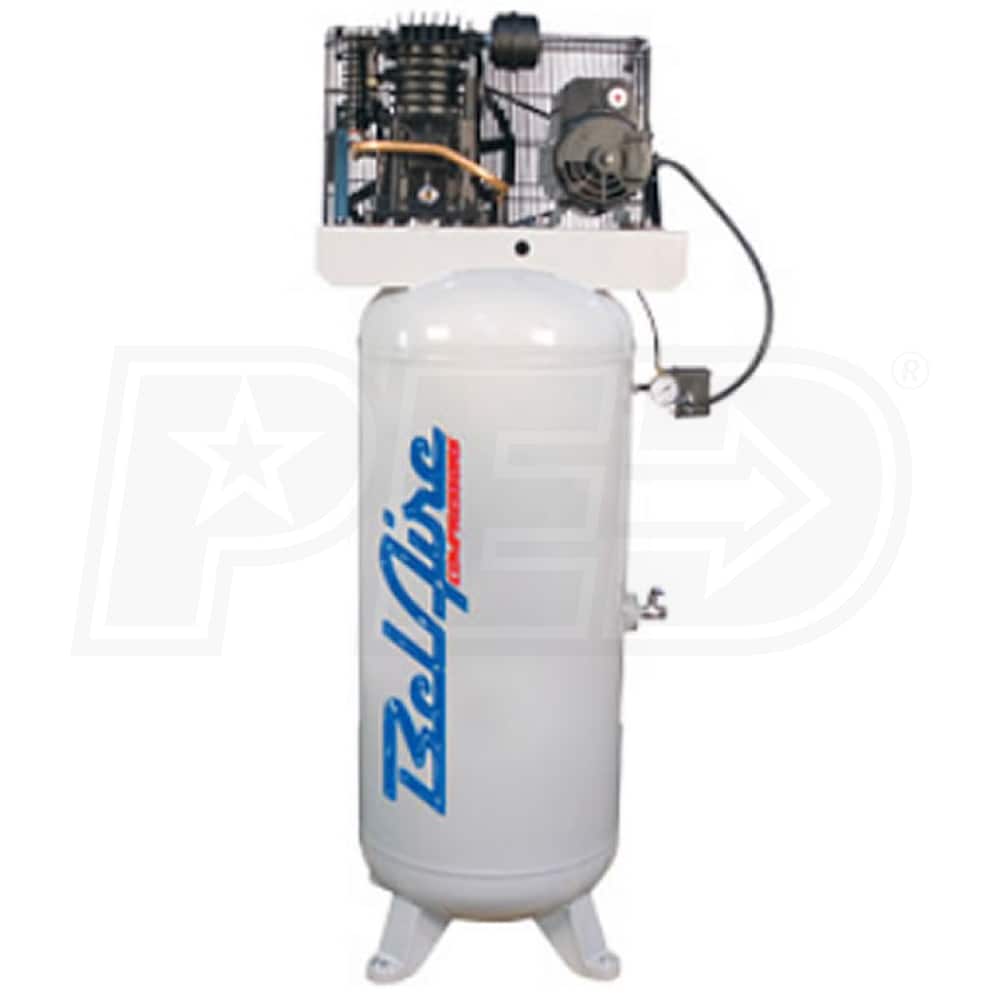

BelAire 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 338VL4
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$2,377.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
22.3
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.3 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Solid Cast Iron Cylinder Sleeve 2 Stage Pump
  • Delivers 22.3 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 460 Volt Three Phase Power
  • Easily wires into your 460V-3 system
  • CPXHT25 dryer recommended (not included)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
20 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.3
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
467 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
22.3
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.3 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Solid Cast Iron Cylinder Sleeve 2 Stage Pump
  • Delivers 22.3 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 460 Volt Three Phase Power
  • Easily wires into your 460V-3 system
  • CPXHT25 dryer recommended (not included)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
20 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.3
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
467 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
20 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.3
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
467 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
