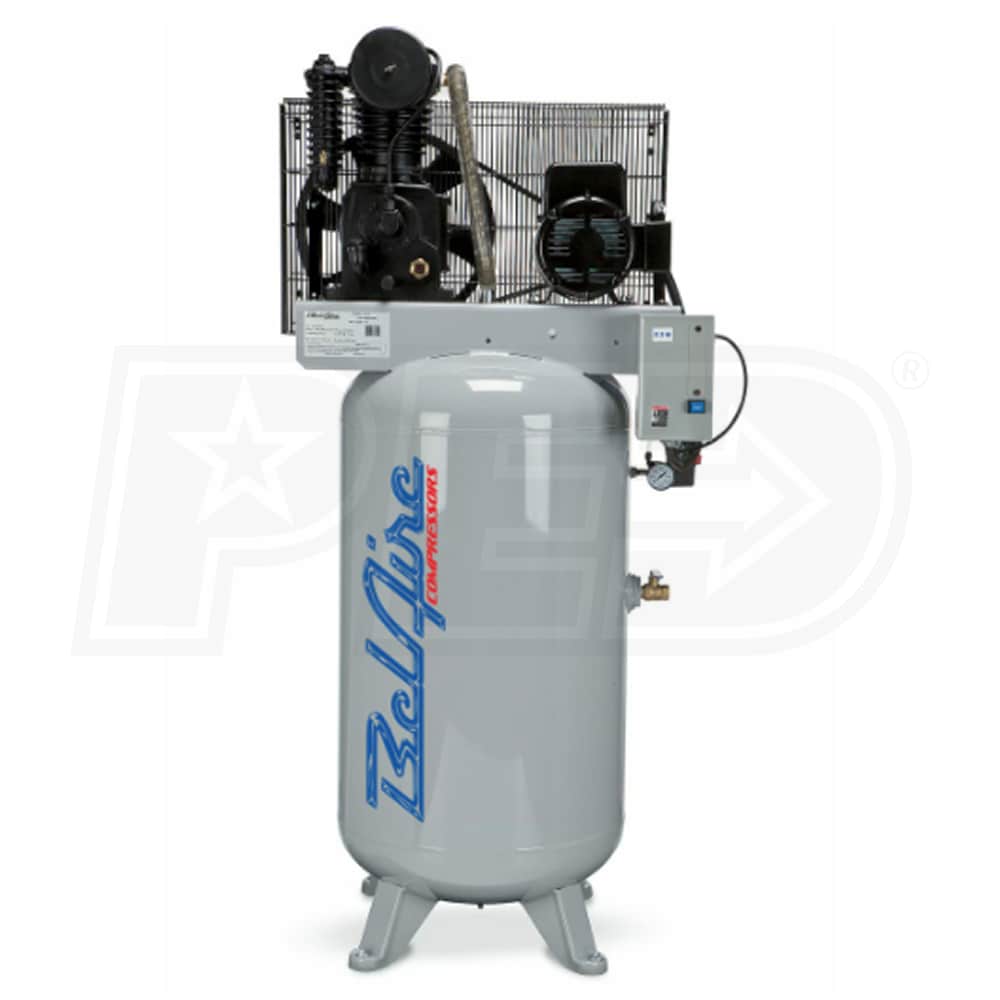

BelAire Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 1-Phase)

BelAire Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 1-Phase)
Model: 418VL
$2,199.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Free ShippingNo Sales Tax* (Except IL)$2,199.00Buy Now
No Sales Tax* (Except IL)$2,274.00Visit Site
Sales Tax Extra $2,164.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
23
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Features
Features

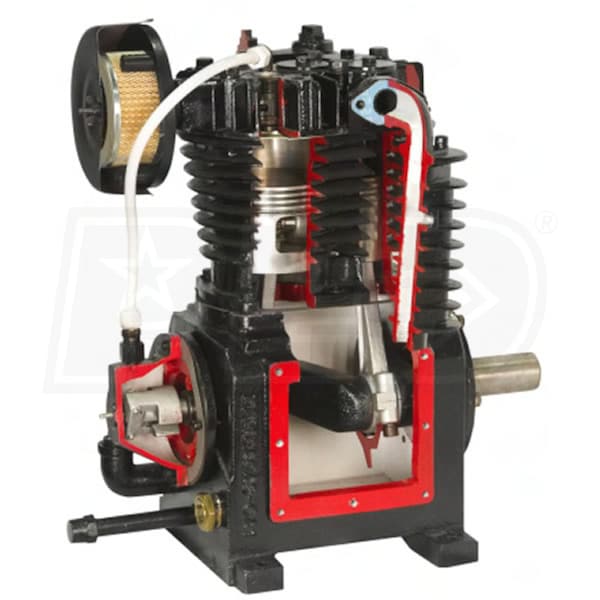

  • Solid Cast Iron 2 Stage Pump
  • Delivers 23 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Automotive-Style Rod Bearings & Wrist Pins
  • Smoother running & more durable
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 208 Volt Or 230 Volt Single-Phase Power
  • Easily wires into your 208V-1 or 230V-1 system
  • CPXHT25 dryer recommended (not included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
600 Pounds
Product Length
37 Inches
Product Width
24 Inches
Product Height
72 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
23
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Features
Features
  • Solid Cast Iron 2 Stage Pump
  • Delivers 23 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Automotive-Style Rod Bearings & Wrist Pins
  • Smoother running & more durable
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 208 Volt Or 230 Volt Single-Phase Power
  • Easily wires into your 208V-1 or 230V-1 system
  • CPXHT25 dryer recommended (not included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
600 Pounds
Product Length
37 Inches
Product Width
24 Inches
Product Height
72 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
600 Pounds
Product Length
37 Inches
Product Width
24 Inches
Product Height
72 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
