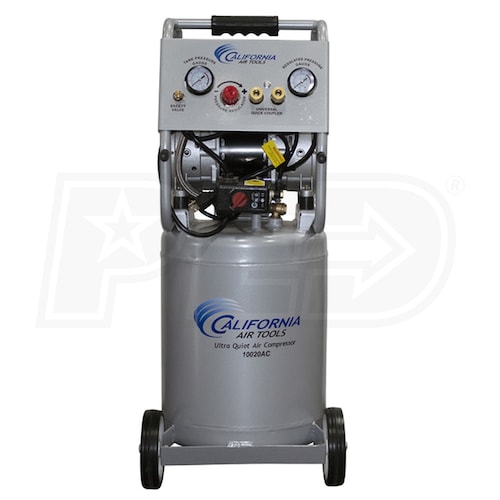

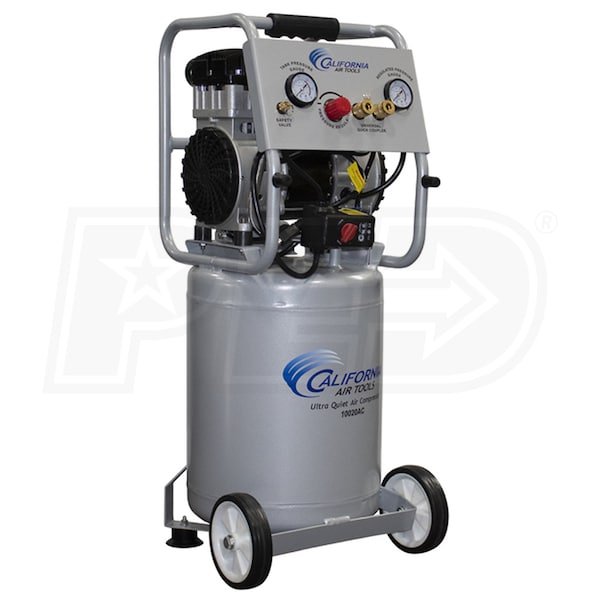

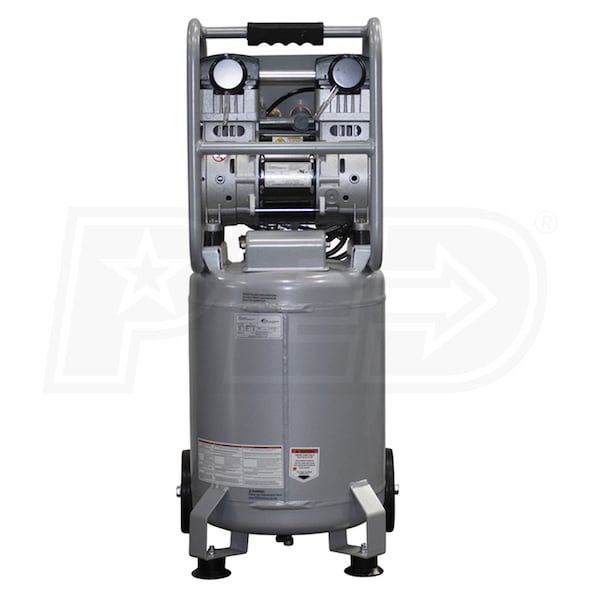

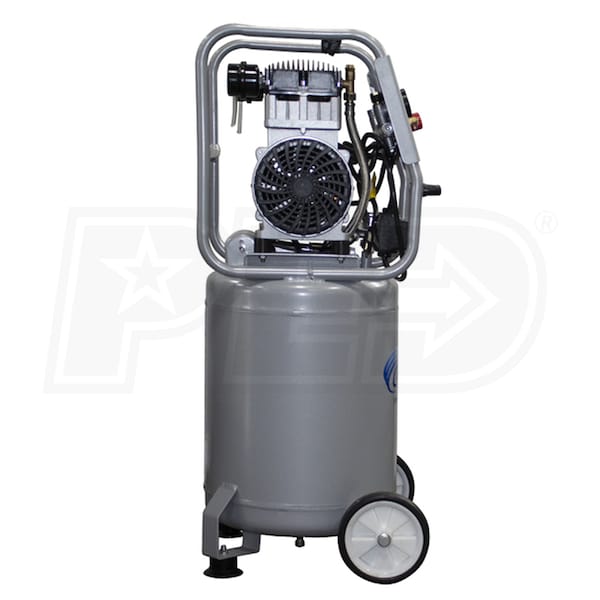

California Air Tools SP Series Ultra Quiet & Oil-Free 2-HP 10-Gallon Aluminum Tank Air Compressor
Model:
CAT-10020AC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.3
Tank Size
10
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Dependable, Oil-Free and Powerful Portable Air Compressor
- Designed to be one of the quietest 2.0-HP in the industry
- Perfect for all types of continuous tools; spray guns & sanders
- Oil-Free Dual Piston Pump System
- Works in a variety of temperatures & uneven terrains
- Includes 2 air filters to removes dirt, dust, and moisture
- 3000+ hour life cycle before wear; comparable units are 500 hours or less
- Powerful 2-HP SP-Series UL-Certified 110V Motor
- Operates at only 1680 RPM creating less noise and less wear
- Increased duty cycle allows for longer continuous run times
- Thermal Overload Protector & Easy Start Valve
- Protects motor from overheating; 14 amp draw
- No-load start up allows for easier starting by using less starting amps
- 10-Gallon Rust-Free Aluminum Air Tank w/ Wheel Kit
- Time to fill tank from empty to full - 120 Seconds
- Recovery time from 95 PSI to 125 PSI - 25 Seconds
- Top Mounted Controls
- Large dual gauges so you can check tank & tool pressure at a glance
- Two 1/4" industrial air outlet with quick connectors for fast tool changes
- Condor Switch & Regulator
- Efficient pressure control reduces wear and tear on unit
- Regulator maintains constant outlet pressure for tools; 3/8" Port
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-10020AC
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.40
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
62 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
13 Inches
Product Width
15 Inches
Product Height
36 Inches
Power Type
Electric
UPC
850004451304
