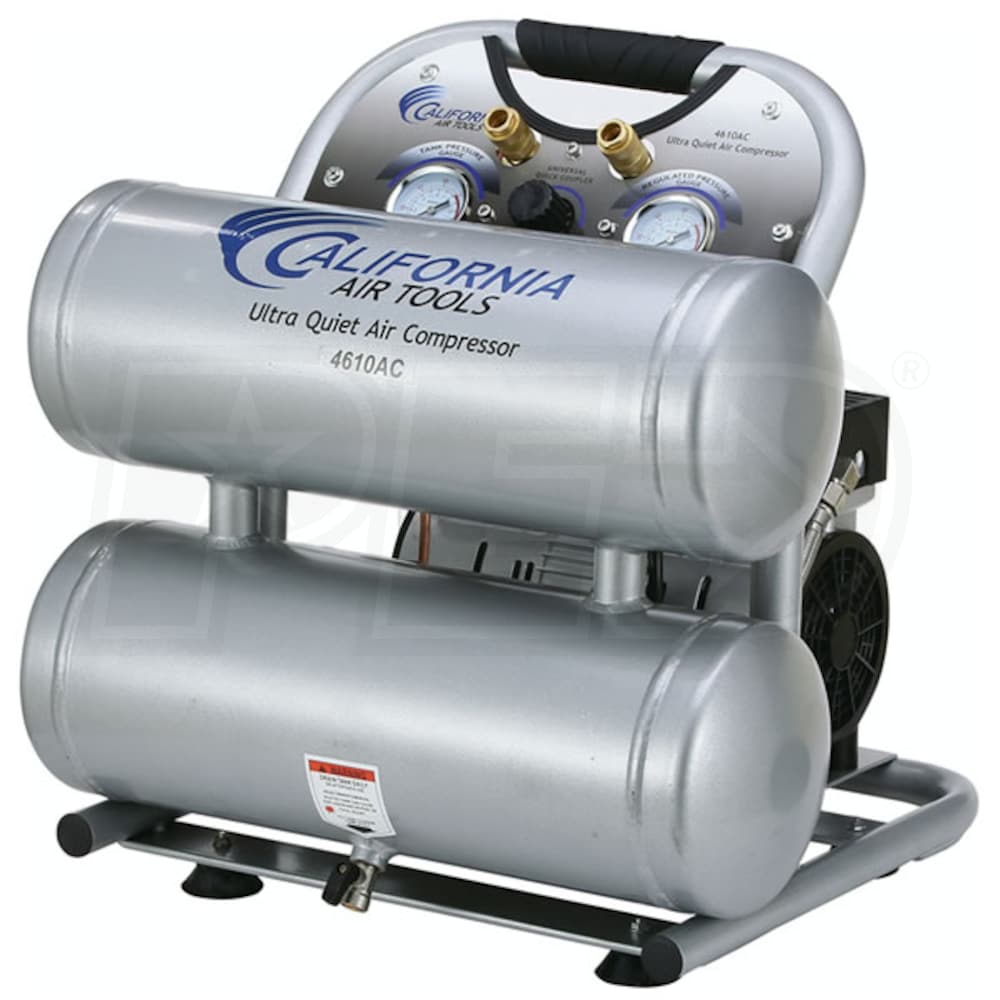

California Air Tools SP Ultra Quiet & Oil-Free 1-HP 4.6-Gallon Aluminum Twin Tank Air Compressor
Model: CAT-4610AC
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews(10)
Write a Review
$258.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Share
  • Product Description
  • 10
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Twin Stack
CFM
2.2
CFM Rated @ 90 PSI
Tank Size
4.6
Gallons
Grade
Consumer
CFM
2.2 CFM Rated @ 90 PSI
Tank Size
4.6 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Powerful 1-HP (Running) SP-Series (2-HP Peak) UL Motor
  • Low 1680 RPM creates less noise & wear
  • 60 dBA is ideal for indoor use where noise is an issue

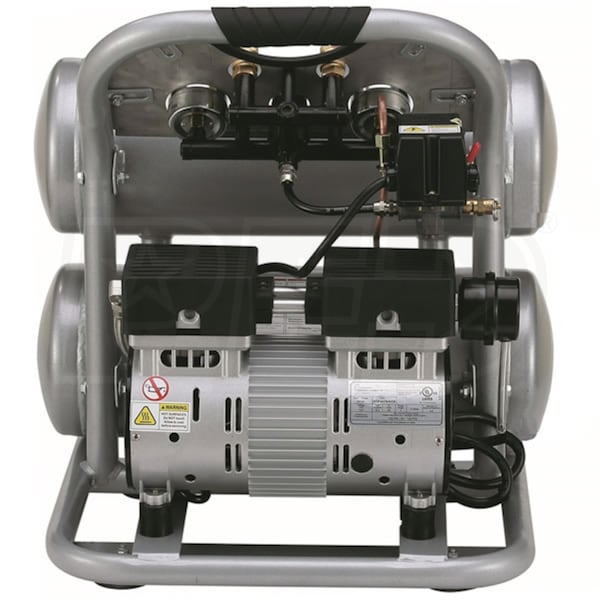

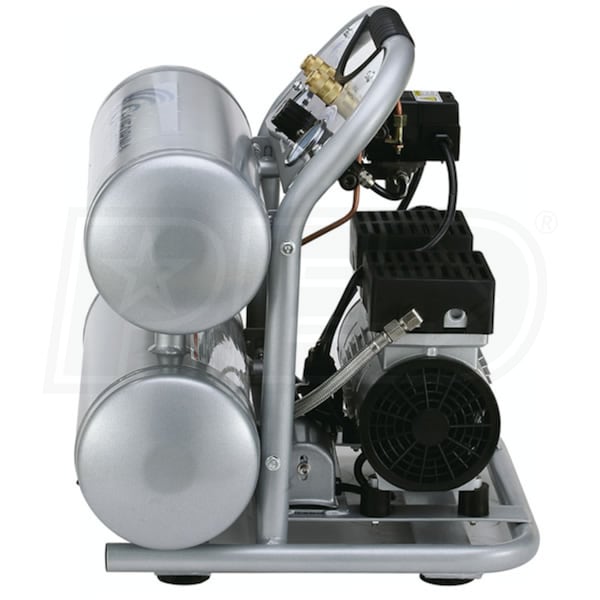

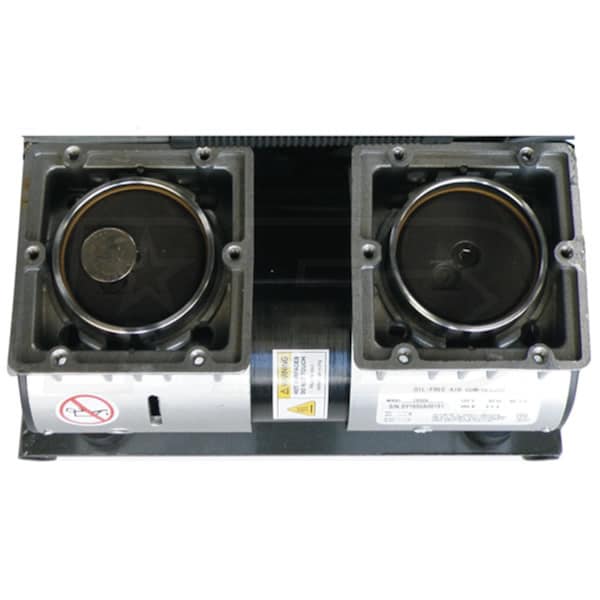

  • Oil-Free Dual Piston Pump System
  • 3.1 CFM @ 40 PSI; 2.2 CFM @ 90 PSI; 120 PSI maximum
  • Has a 3000+ hour life cycle before wear; comparable units are 500 hours or less
  • Works in a variety of temperatures & uneven terrains
  • Two 2.3 Gallon Aluminum Rust-Free Air Tanks (4.6 Gallon Total)
  • Light weight & easy to transport & store at only 45.5 pounds
  • Air Filter
  • Cleaner air for better tool operation
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 130 Seconds
  • Recovery time from 90 PSI to 120 PSI - 30 Seconds
  • Top Mounted Controls
  • Dual gauges so you can check tank & tool pressure at a glance
  • Two 1/4" air outlets with quick connectors for fast tool changes
  • Thermal Overload Protector
  • Protects the motor from overheating
  • 8.5 low amp draw works on most 110V household outlets
Specifications
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
60
Amp Draw
8.5
Pump
CFM
2.2
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
4.6 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Weight
45.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.1 Inches
Product Width
16.7 Inches
Product Height
19.7 Inches
Power Type
Electric
UPC
743369740117
Grade
Consumer
Style
Twin Stack
CFM
2.2
CFM Rated @ 90 PSI
Tank Size
4.6
Gallons
Grade
Consumer
CFM
2.2 CFM Rated @ 90 PSI
Tank Size
4.6 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Powerful 1-HP (Running) SP-Series (2-HP Peak) UL Motor
  • Low 1680 RPM creates less noise & wear
  • 60 dBA is ideal for indoor use where noise is an issue
  • Oil-Free Dual Piston Pump System
  • 3.1 CFM @ 40 PSI; 2.2 CFM @ 90 PSI; 120 PSI maximum
  • Has a 3000+ hour life cycle before wear; comparable units are 500 hours or less
  • Works in a variety of temperatures & uneven terrains
  • Two 2.3 Gallon Aluminum Rust-Free Air Tanks (4.6 Gallon Total)
  • Light weight & easy to transport & store at only 45.5 pounds
  • Air Filter
  • Cleaner air for better tool operation
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 130 Seconds
  • Recovery time from 90 PSI to 120 PSI - 30 Seconds
  • Top Mounted Controls
  • Dual gauges so you can check tank & tool pressure at a glance
  • Two 1/4" air outlets with quick connectors for fast tool changes
  • Thermal Overload Protector
  • Protects the motor from overheating
  • 8.5 low amp draw works on most 110V household outlets
Specifications
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
60
Amp Draw
8.5
Pump
CFM
2.2
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
4.6 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Weight
45.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.1 Inches
Product Width
16.7 Inches
Product Height
19.7 Inches
Power Type
Electric
UPC
743369740117
Product Specs
+
Specifications
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
60
Amp Draw
8.5
Pump
CFM
2.2
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
4.6 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Weight
45.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.1 Inches
Product Width
16.7 Inches
Product Height
19.7 Inches
Power Type
Electric
UPC
743369740117
