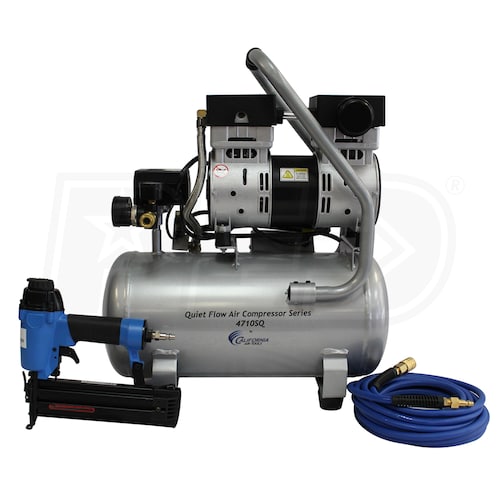

California Air Tools Quiet Flow 1-HP 4.7-Gallon Steel Tank Air Compressor w/ Nail Gun Kit

Model:

CAT-4710SQGK18

Write A Review
$259.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from California Air Tools
Shipping to60601

California Air Tools Quiet Flow 1-HP 4.7-Gallon Steel Tank Air Compressor w/ Nail Gun Kit
California Air Tools Quiet Flow 1-HP 4.7-Gallon Steel Tank Air Compressor w/ Nail Gun Kit
Model: CAT-4710SQGK18
$259.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

2

Tank Size

4.7



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • High-Performance Quiet Flow SQ Series by California Air Tools
  • Designed to be one of the quietest air compressors in the industry
  • Specifically designed for the DIY & homeowner customers and indoor use
  • Oil-Free Extra Large Dual Piston Pump
  • 1000+ hour life cycle before wear; comparable units are 500 hours or less
  • Extra-large dual piston increases compression
  • Less maintenance and can be used in different temperatures and terrains
  • Designed For Increased Duty Cycles & Run Times
  • Less time to fill the tank - Only 106 seconds
  • Recovery time from 90 PSI to 120 PSI - 29 second
  • Powerful 1.0 HP (Rated / Running) 2.0 HP (Peak) Motor
  • Operates at only 1680 RPM creating less noise and less wear
  • Air filter included for extra protection against dust and dirt
  • Thermal overload protector prevents overheating; Low 8.5-amp draw
  • 4.7-Gallon Lightweight Steel Tank
  • Easy access tank drain simplifies maintenance
  • Perfect for staple guns nail guns, airbrushes and blow guns
  • Convenient Top Mounted Controls
  • Built-in regulator makes it easy to manage pressure
  • 1/4" air outlet with quick connector for fast tool changes
  • Large dual pressure gauges let you check tank and tool pressure at a glance

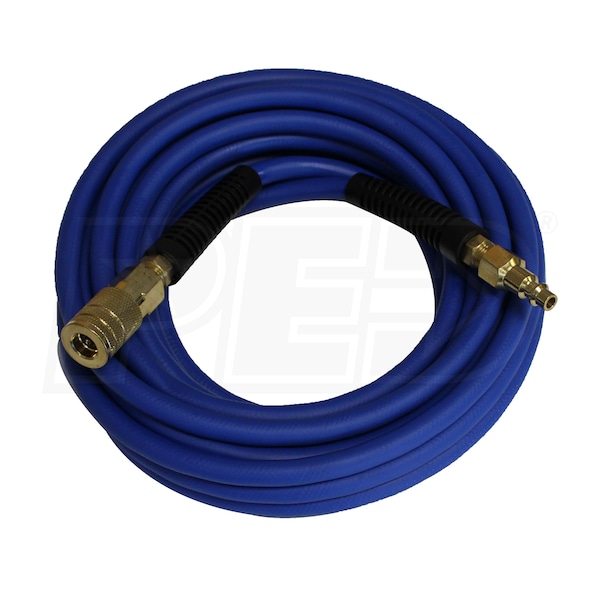

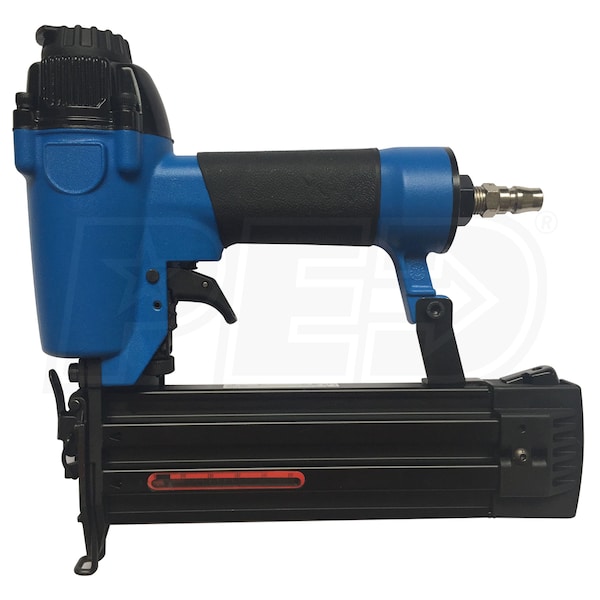

  • 18 Gauge Brad Nail Gun w/ 25-Ft Hybrid Air Hose
  • Designed for nailing trim, cabinetry and hobby/craft projects (3/8" - 2" brad nails)
  • Lightweight and very flexible hose with 2 air fittings attached
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-4710SQGK18
specs product image PID-113756
General Information
Product Category
Air Compressor - Portable
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
8.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2
CFM Rated @
90 PSI
CFM @ 40 PSI
3
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
4.7 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
43 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.5 Inches
Product Width
9.5 Inches
Product Height
24 Inches
Power Type
Electric
UPC
850004451311

Reviews

California Air Tools CAT-4710SQGK18 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Melissa, the Air Compressor Expert

How-To Articles

How To Pick The Perfect Contractor Air Compressor
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Air Compressors How-To Library
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts

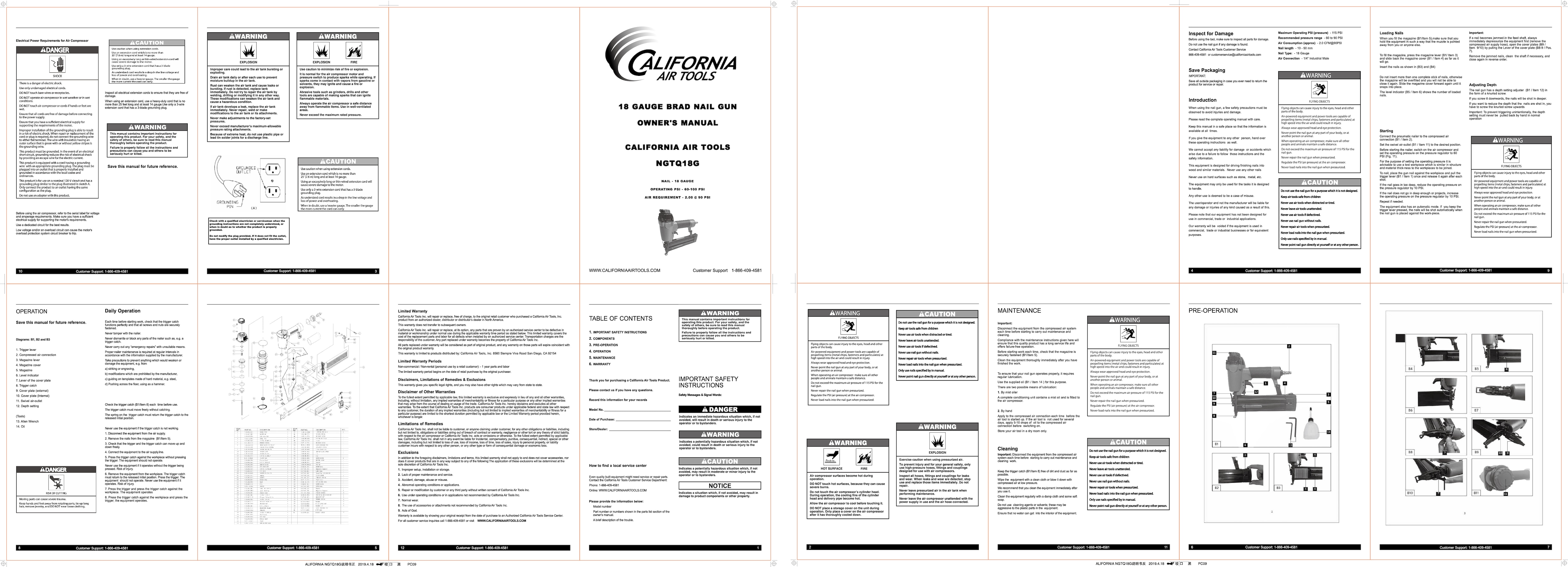

Manuals
