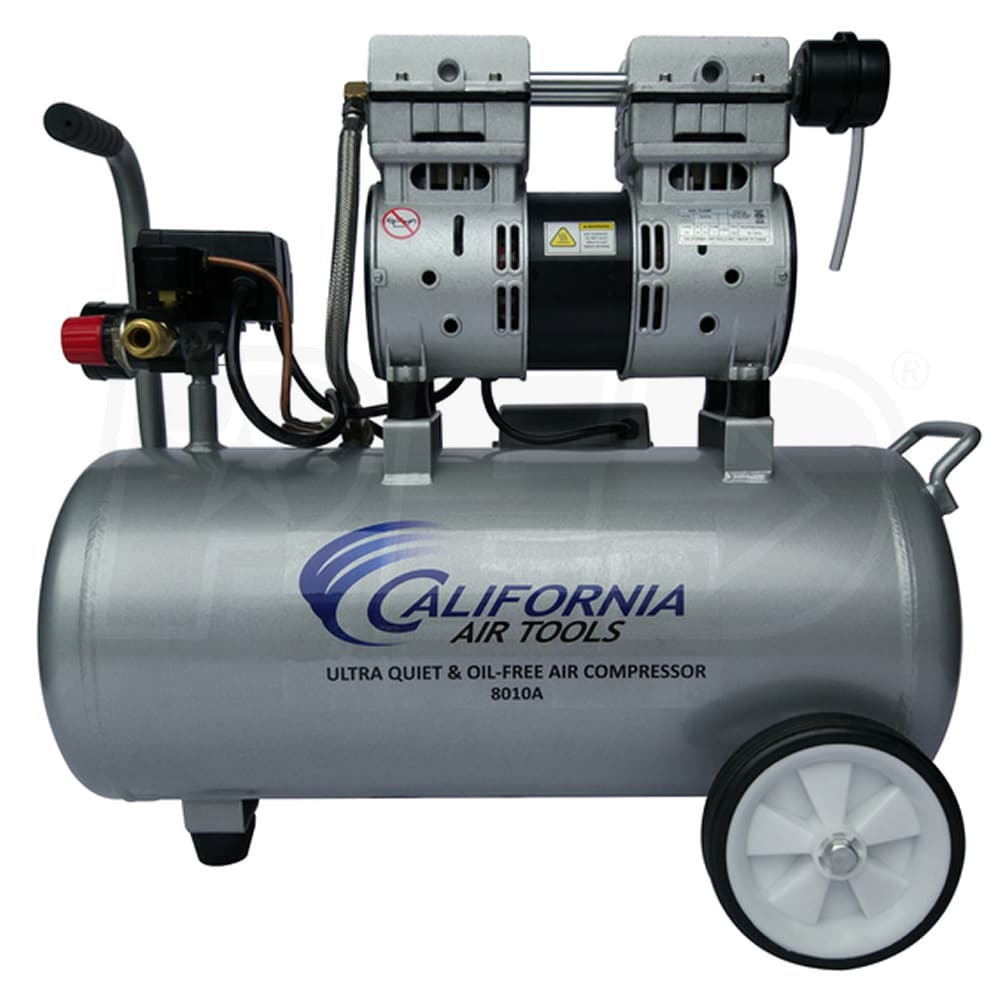

California Air Tools Ultra Quiet & Oil Free 1-HP 8-Gallon Aluminum Tank Air Compressor
Model:
CAT-8010A
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Portable - Horizontal
CFM
2.20
Tank Size
8
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Ultra-Quiet Portable Air Compressor
- 60 dBA is ideal for indoor use where noise is an issue
- Great for inflating, engraving, airbrushing & many other air tools
- Durable 1-HP Motor (2.0-HP Peak)
- 1680 RPM creating less noise and less wear
- Time to fill tank from empty to full - 165 Seconds
- Recovery time from 90 PSI to 120 PSI - 60 Second
- Oil-Free Dual Piston Pump System
- Works in a variety of temperatures & uneven terrains
- 3000+ hour life cycle before wear; comparable units are 500 hours or less
- Thermal Overload Protector
- Protects the motor from overheating
- 8.5 amp draw works on most household outlets
- 8-Gallon Aluminum Air Tank w/ Wheel Kit
- Easy to transport & store at only 37 pounds
- Bottom manual drain valve for routine moisture removal
- Top Mounted Controls
- Dual gauges let you check tank & tool pressure easily
- 1/4" air outlet with a quick connector for fast hose changes
- Air Filter
- Delivers cleaner air for better tool operation
- Helps to remove dust and dirt from the air for longer tool life span
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-8010A
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60
Amp Draw
8.5
Engine
HP
1
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.20
CFM Rated @
90 PSI
CFM @ 40 PSI
3.10
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
37.25 Pounds
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
13 Inches
Product Height
21.85 Inches
Power Type
Electric
UPC
850004451212
