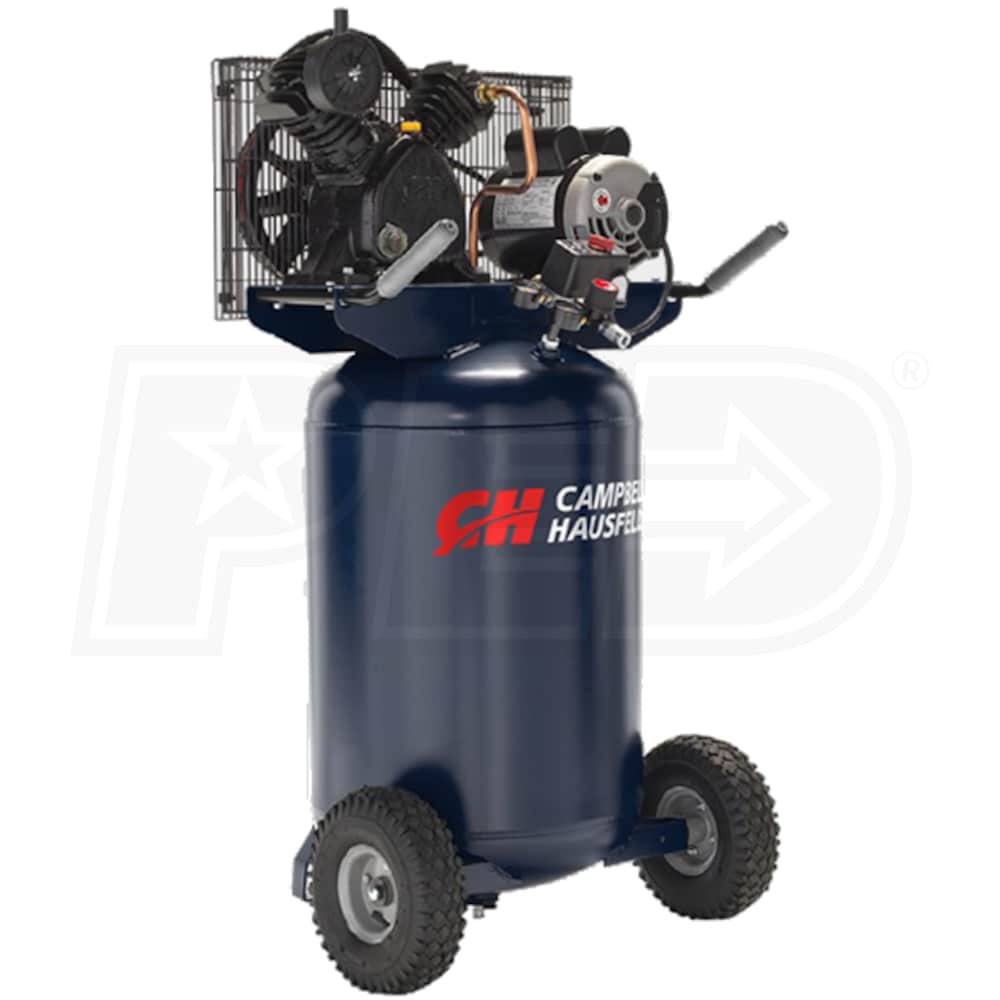

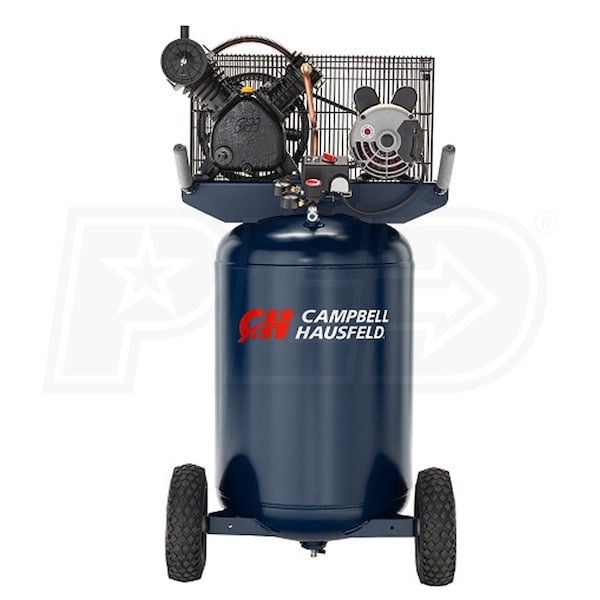

Campbell Hausfeld 2-HP 30-Gal Two-Stage (Belt Drive) Dual-Voltage Cast-Iron Air Compressor
Model: XC302100
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(2)
Write a Review
$679.99
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Portable - Vertical
CFM
4.1
CFM Rated @ 90 PSI
Tank Size
30
Gallons
Grade
Contractor
CFM
4.1 CFM Rated @ 90 PSI
Tank Size
30 Gallons
Features
Features
  • Campbell Hausfeld XC302100 Two Stage Air Compressor
  • Designed for the serious DIY'er, professional, or contractor
  • Rugged, Cast Iron Two Stage Pump
  • Oil-lubricated for extended performance
  • Up to 5,000 hours based on B-10 bearing rating
  • 2 HP, Dual-Voltage Motor (120/240V)
  • Versatile design for a wide variety of applications
  • 4.1 CFM @ 90 PSI
  • Powerful enough to run many air tools
  • Commercial V-Belt Drive
  • Delivers smooth power transfer & long service life
  • Totally enclosed metal belt guard for safety
  • 30 Gallon Tank
  • Vertical tank saves space, provides easy access
  • Certified to 175 PSI maximum pressure for safe operation
  • Pressure Switch For Automatic Stop/Start Operation
  • Makes sure air pressure always meets demand
  • Oil Level Sight Glass
  • Easier to monitor and maintain
  • Wide Base Mount
  • Adds stability & increases belt life
  • 10" Semi-Pneumatic Wheels
  • Easy to move around the garage or workshop
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Recommended Breaker
15 Amp Breaker
Engine
HP
2
Pump
CFM
4.1
CFM Rated @
90 PSI
CFM @ 90 PSI
4.1
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
178 Pounds
Consumer Warranty
3 Years
Product Length
29 Inches
Product Width
23 Inches
Product Height
52 Inches
Power Type
Electric
UPC
045564644161
Grade
Contractor
Style
Portable - Vertical
CFM
4.1
CFM Rated @ 90 PSI
Tank Size
30
Gallons
Grade
Contractor
CFM
4.1 CFM Rated @ 90 PSI
Tank Size
30 Gallons
Features
Features
  • Campbell Hausfeld XC302100 Two Stage Air Compressor
  • Designed for the serious DIY'er, professional, or contractor
  • Rugged, Cast Iron Two Stage Pump
  • Oil-lubricated for extended performance
  • Up to 5,000 hours based on B-10 bearing rating
  • 2 HP, Dual-Voltage Motor (120/240V)
  • Versatile design for a wide variety of applications
  • 4.1 CFM @ 90 PSI
  • Powerful enough to run many air tools
  • Commercial V-Belt Drive
  • Delivers smooth power transfer & long service life
  • Totally enclosed metal belt guard for safety
  • 30 Gallon Tank
  • Vertical tank saves space, provides easy access
  • Certified to 175 PSI maximum pressure for safe operation
  • Pressure Switch For Automatic Stop/Start Operation
  • Makes sure air pressure always meets demand
  • Oil Level Sight Glass
  • Easier to monitor and maintain
  • Wide Base Mount
  • Adds stability & increases belt life
  • 10" Semi-Pneumatic Wheels
  • Easy to move around the garage or workshop
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Recommended Breaker
15 Amp Breaker
Engine
HP
2
Pump
CFM
4.1
CFM Rated @
90 PSI
CFM @ 90 PSI
4.1
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
178 Pounds
Consumer Warranty
3 Years
Product Length
29 Inches
Product Width
23 Inches
Product Height
52 Inches
Power Type
Electric
UPC
045564644161
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Recommended Breaker
15 Amp Breaker
Engine
HP
2
Pump
CFM
4.1
CFM Rated @
90 PSI
CFM @ 90 PSI
4.1
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
178 Pounds
Consumer Warranty
3 Years
Product Length
29 Inches
Product Width
23 Inches
Product Height
52 Inches
Power Type
Electric
UPC
045564644161
Reviews
(2)
+
Campbell Hausfeld XC302100 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
What kind of oil should I use on this compressor?
Jose M.
from Ohio
January 07, 2020
Answer
SAE 30 ISO100 non-detergent compressor oil. Model ST125312AV would work great.
