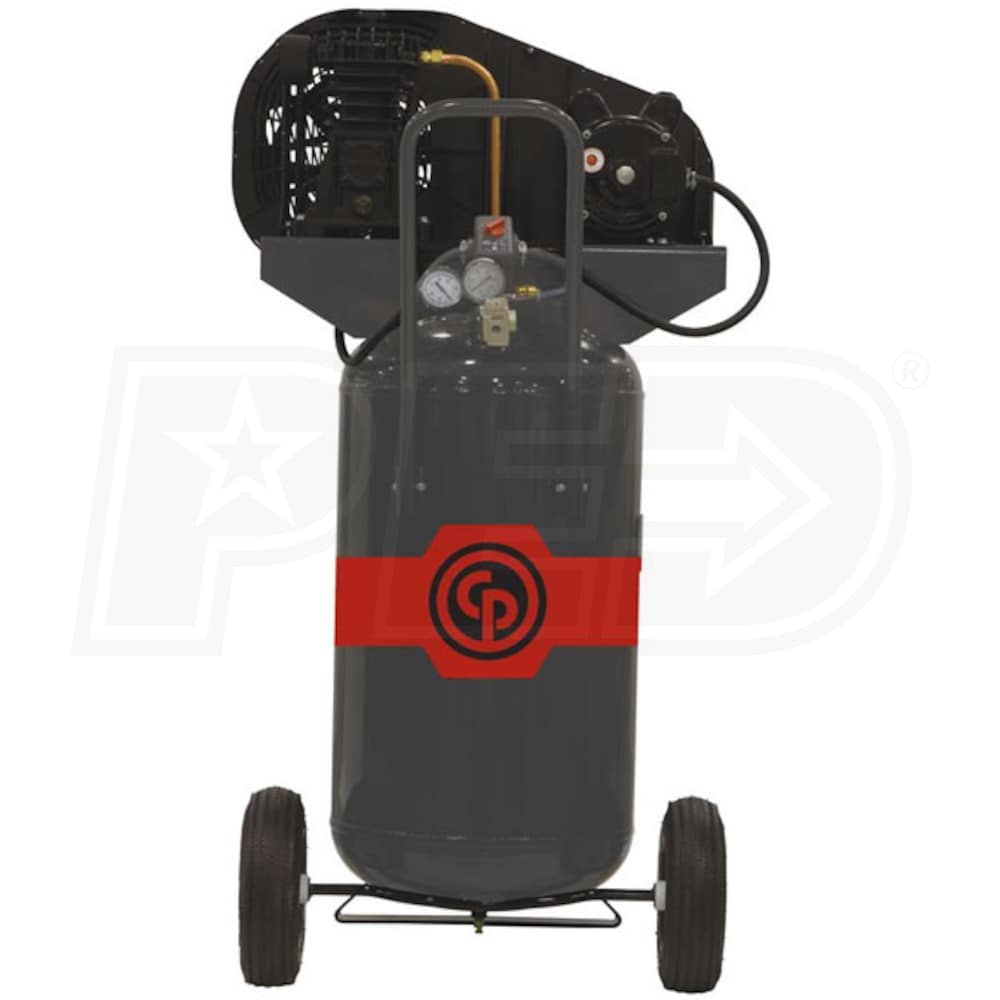

Chicago Pneumatic RCP-224VP 2-HP 24-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor
Model: RCP-224VP
+
Share This Product
-
Product Description
-
45Reviews
-
6Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
7.1
CFM Rated @ 90 PSI
Tank Size
24
Gallons
Grade
Consumer
CFM
7.1 CFM Rated @ 90 PSI
Tank Size
24 Gallons
Features
Features
- Dual Voltage
- Can operate on low amperage 230V or 115V single phase power
- Great Performance And Value For Small Business Or Residence
- High volume for any compressed air need
- Mounted on rugged receiver tank to improve air flow consistency
- Durable And Reliable
- Solid cast iron cylinder; belt drive
- Fully enclosed belt guard and polyester powder-coated tank
- One year factory warranty
- Convenient Features
- Thermally protected 2 horsepower electric motor
- Easy to view sight glass; ASME/CRN certified tank & safety valves
- Portable Power When And Where You Need It
- Built in handle and wheels move the 24 gallon tank easily
- 1/4" regulator and stop/start pressure control
- *NOTE: The RCP-226VP has been changed to the RCP-224VP (24 Gallon instead of 26) The RCP-224VP has a gauge panel connected to the pressure switch) New Orders for the RCP-226VP will be replaced with the RCP-224VP
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
2
Engine Low Oil Shut-off
No
Pump
CFM
7.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
165 Pounds
Certification
ASME/CRN
Consumer Warranty
1 Year
Product Length
26 Inches
Product Width
25.5 Inches
Product Height
51 Inches
Power Type
Electric
UPC
94922196811
Additional Model Numbers
RCP-226VP, RCP-224VP
Grade

Style

CFM
7.1
CFM Rated @ 90 PSI
Tank Size
24
Gallons
Grade
Consumer
CFM
7.1 CFM Rated @ 90 PSI
Tank Size
24 Gallons
Features
Features
- Dual Voltage
- Can operate on low amperage 230V or 115V single phase power
- Great Performance And Value For Small Business Or Residence
- High volume for any compressed air need
- Mounted on rugged receiver tank to improve air flow consistency
- Durable And Reliable
- Solid cast iron cylinder; belt drive
- Fully enclosed belt guard and polyester powder-coated tank
- One year factory warranty
- Convenient Features
- Thermally protected 2 horsepower electric motor
- Easy to view sight glass; ASME/CRN certified tank & safety valves
- Portable Power When And Where You Need It
- Built in handle and wheels move the 24 gallon tank easily
- 1/4" regulator and stop/start pressure control
- *NOTE: The RCP-226VP has been changed to the RCP-224VP (24 Gallon instead of 26) The RCP-224VP has a gauge panel connected to the pressure switch) New Orders for the RCP-226VP will be replaced with the RCP-224VP
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
2
Engine Low Oil Shut-off
No
Pump
CFM
7.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
165 Pounds
Certification
ASME/CRN
Consumer Warranty
1 Year
Product Length
26 Inches
Product Width
25.5 Inches
Product Height
51 Inches
Power Type
Electric
UPC
94922196811
Additional Model Numbers
RCP-226VP, RCP-224VP
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
2
Engine Low Oil Shut-off
No
Pump
CFM
7.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
165 Pounds
Certification
ASME/CRN
Consumer Warranty
1 Year
Product Length
26 Inches
Product Width
25.5 Inches
Product Height
51 Inches
Power Type
Electric
UPC
94922196811
Additional Model Numbers
RCP-226VP, RCP-224VP
Product Q&A
(6)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Just want to know if its ok to run this compressor on a 14gauge wire on a 15amp breaker
Claude
from Vermont
July 11, 2016
Answer
CP does not supply us with the gauge of wire information on the manual. I have provided the tech support number to CP regarding your question.
Chicago Pneumatic
(877) 861-2722
Chicago Pneumatic
(877) 861-2722
Was this answer helpful?
Yes

0
No

0
+−
Is the drain valve reasonably accessible? Or would you recommend an extension for the valve?
Thanks
Norman Z
from Michigan
April 24, 2016
Answer
It's on the bottom of the tank. Some replace the brass drain valve with an elbow, pipe nipple & ball valve to make draining the tank more accessible.
Was this answer helpful?
Yes

0
No

0
+−
Does this have a built in air dryer?
Jignesh Amin
from Ohio
June 27, 2015
Answer
The RCP-226VP is a compressor only.
Was this answer helpful?
Yes

0
No

0
+−
Where is the CP model RCP-226VP manufactured?
George
from California
February 05, 2013
Answer
This compressor is assembled in the US from components of domestic & foreign sources. We do not know of any all made in US single stage compressors. The Quincy two stage & Jenny air compressors are still made in the USA.
Was this answer helpful?
Yes

0
No

0
+−
Good evening,
I have a couple more questions about the CP model RCP-226VP. Is this compressor shipped with oil in it? I ask because I wanted to know if it can be layed down on it's side or at how much of an angle can it be tipped while unloading. Being a portable I'm sure it can be tilted some. If I can angle it off the back of the truck I can save $75.00 as the weight itself, at 165lbs. isn't an issue.
Thanks,
Craig
Craig
from New York
April 25, 2012
Answer
Most manufacturers ship their compressor pumps dry, but despite what the operators' manuals state some oil may be in the pump. This could be due to quality control testing or to prevent premature failure if customers start the compressor before checking the pump oil level.
Also, be aware that transporting a compressor on it's side could damage some of the components that stick out from the tank/pump.
Also, be aware that transporting a compressor on it's side could damage some of the components that stick out from the tank/pump.
Was this answer helpful?
Yes

0
No

0
+−
Model RCP-226VP
What is the dB on this model?
Jay
from Connecticut
April 19, 2011
Answer
Hello,
The air compressor industry has not agreed to a consistent method for measuring the sound level of their products. So any dB numbers stated have no correlation to any other manufacturer's specs.
Regards,
Customer Service
The air compressor industry has not agreed to a consistent method for measuring the sound level of their products. So any dB numbers stated have no correlation to any other manufacturer's specs.
Regards,
Customer Service
Was this answer helpful?
Yes

0
No

0
