X Air by Con X Equipment SC70 20-HP Portable Rotary Screw Air Compressor w/ Honda GX630 Engine
Model: SC70
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
70
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
Engine Brand
Honda GX
CFM
70 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Small Investment, Big Return Compact Rotary Compressor
- X AIR compressors excel in reliability and energy efficiency
- Ideal for sandblasting, breakers, painting, chipping hammers, graffiti removal, nail guns, staple guns and much more…
- XAIR SC70 Oil Injected Rotary Screw
- Dual XPZ drive belts and 1.1-gallon oil capacity
- Extremely durable, efficient and high performance air end
- Airflow & pressure are constant and continuous, no need for an air tank
- Remarkably Lightweight, Quiet & Portable

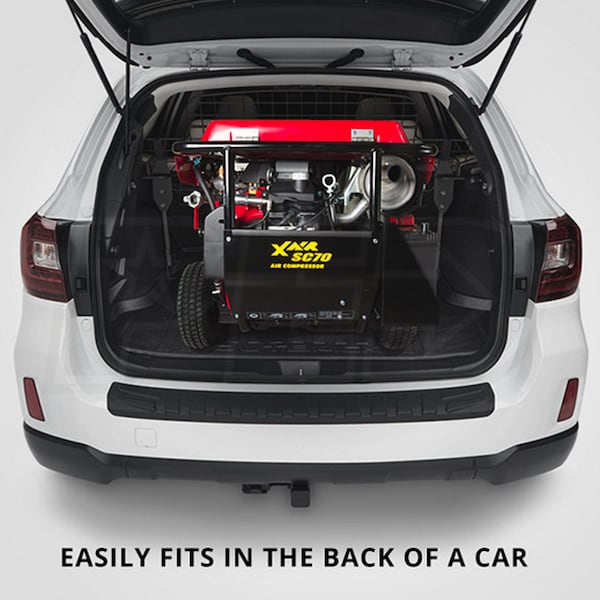

- Easily fits in the back of a car for easy transporting
- Weighs 298lbs; 74 dBA sound level @ 23 feet
- Fits through the smallest of openings, yet is powerful enough for the largest of job sites
- Commercial Grade 20.8-HP Honda GX630 Engine w/ Electric Start
- 5.3-gallon gas tank capacity for longer work times
- Precision engineered components result in lower vibration
- Dependable commercial grade engine starts easily, runs quietly
- MONITAIR - Power ON Demand
- Engine idles until power is required, making it very economical
- Continuous variable idle control gives you very fast throttle response
- Can operate a 90 lbs class breaker & doesn’t need to be towed

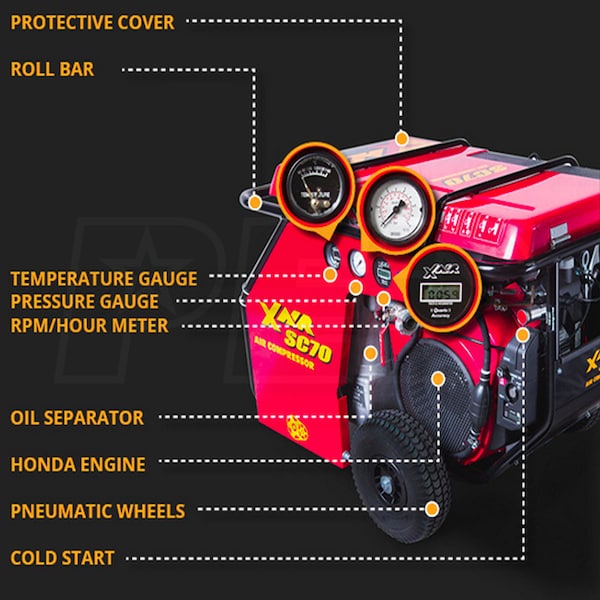

- Air & Oil Cooling w/ Automatic Full Safety Shutdown System
- Includes temperature, pressure gauge and RPM/hour meter
- Full safety shutdown on compressor and engine
- Protects against low engine oil and high temperature of air end
- Rugged Steel Roll Bar Construction Frame w/ Lifting Hooks
- Side panels all finished with lasting powder coat paint
- Perfect for construction, rental industry & public works pros
- Retractable handle and pneumatic tires makes it manually transportable by one person
- Protective Cover & Transport Handle

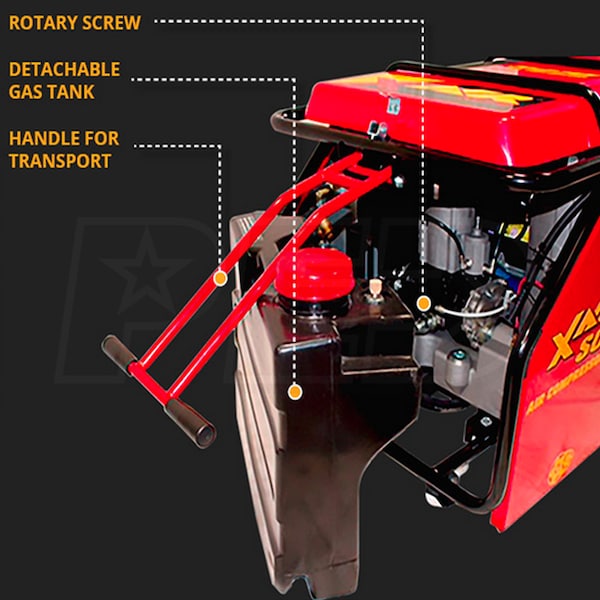

- Removable gas tank reduces transport weight and makes fill up easy
- Handles harshest and most demanding environments without any issues
Specifications
Engine
HP
20.8
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
70
CFM Rated @
100 PSI
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
298 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
86 Inches
Product Width
66 Inches
Product Height
58 Inches
Power Type
Gas
Grade
Style
Engine Brand
CFM
70
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
Engine Brand
Honda GX
CFM
70 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Small Investment, Big Return Compact Rotary Compressor
- X AIR compressors excel in reliability and energy efficiency
- Ideal for sandblasting, breakers, painting, chipping hammers, graffiti removal, nail guns, staple guns and much more…
- XAIR SC70 Oil Injected Rotary Screw
- Dual XPZ drive belts and 1.1-gallon oil capacity
- Extremely durable, efficient and high performance air end
- Airflow & pressure are constant and continuous, no need for an air tank
- Remarkably Lightweight, Quiet & Portable
- Easily fits in the back of a car for easy transporting
- Weighs 298lbs; 74 dBA sound level @ 23 feet
- Fits through the smallest of openings, yet is powerful enough for the largest of job sites
- Commercial Grade 20.8-HP Honda GX630 Engine w/ Electric Start
- 5.3-gallon gas tank capacity for longer work times
- Precision engineered components result in lower vibration
- Dependable commercial grade engine starts easily, runs quietly
- MONITAIR - Power ON Demand
- Engine idles until power is required, making it very economical
- Continuous variable idle control gives you very fast throttle response
- Can operate a 90 lbs class breaker & doesn’t need to be towed
- Air & Oil Cooling w/ Automatic Full Safety Shutdown System
- Includes temperature, pressure gauge and RPM/hour meter
- Full safety shutdown on compressor and engine
- Protects against low engine oil and high temperature of air end
- Rugged Steel Roll Bar Construction Frame w/ Lifting Hooks
- Side panels all finished with lasting powder coat paint
- Perfect for construction, rental industry & public works pros
- Retractable handle and pneumatic tires makes it manually transportable by one person
- Protective Cover & Transport Handle
- Removable gas tank reduces transport weight and makes fill up easy
- Handles harshest and most demanding environments without any issues
Specifications
Engine
HP
20.8
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
70
CFM Rated @
100 PSI
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
298 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
86 Inches
Product Width
66 Inches
Product Height
58 Inches
Power Type
Gas
Product Specs
+−
Specifications
Engine
HP
20.8
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
70
CFM Rated @
100 PSI
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
298 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
86 Inches
Product Width
66 Inches
Product Height
58 Inches
Power Type
Gas
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
I have about 1000 feet of 1-inch underground water line to blow out in the fall. Can this compressor handle this task?
David B.
from New York
October 27, 2019
Answer
I would recommend model SC90D. I do recommend a higher air flow, which the SC90D will provide and will take less time.
