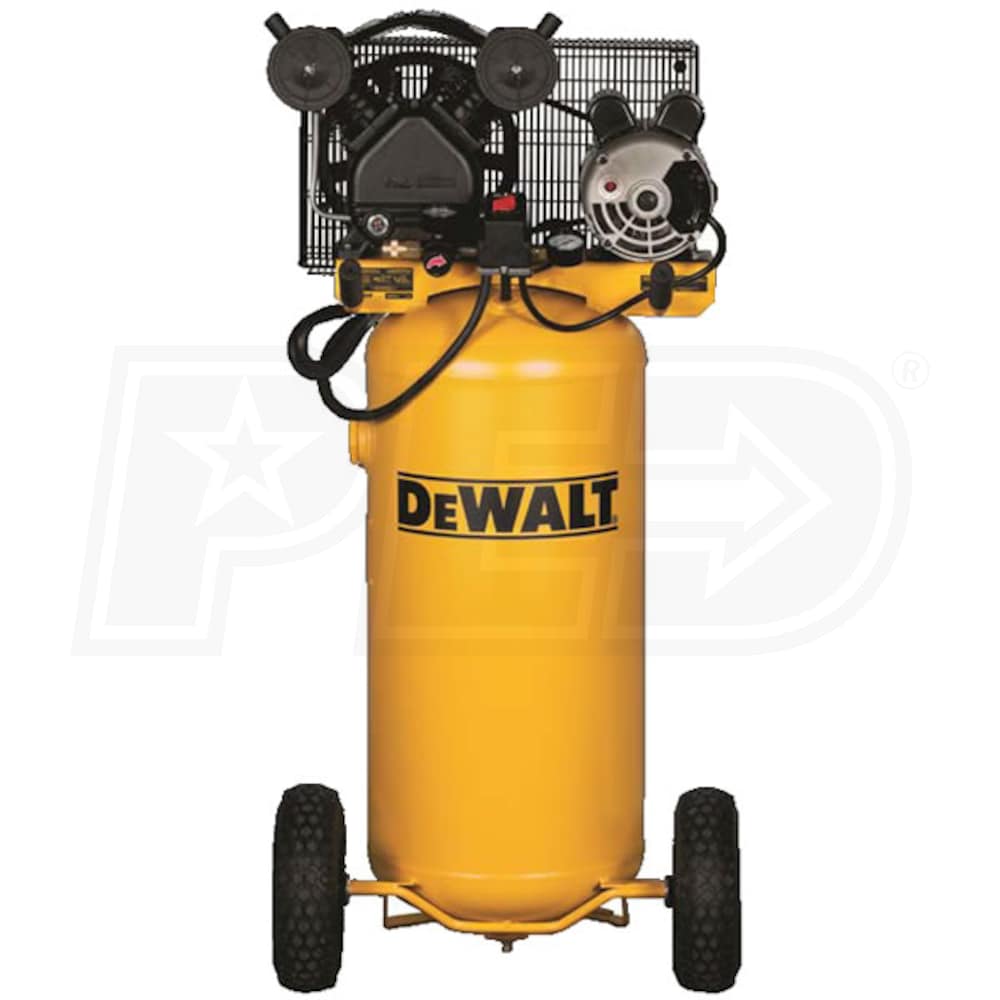

DeWalt 1.6-HP 20-Gallon Belt-Drive (Dual Voltage) Cast Iron Air Compressor (120/240V 1-Phase)
Model:
DXCMLA1682066
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.3
Tank Size
20
- Heavy Duty 1.6-HP Induction Motor
- Wired for standard 120 volt, single phase outlet
- May also be converted for 240 volt, single phase applications
- Cast-Iron V-Twin Cylinder Pump
- Cast iron cylinder body & crankcase for thermal stability
- Delivers 6.2 CFM at 40 PSI, 5.3 CFM @ 90 PSI for optimum tool performance
- Aluminum Head
- Helps dissipate heat buildup
- Durable Components
- Automotive style ball bearings, stainless steel reed valves provide long service life
- 2 year Factory Warranty on pump; 1 year on all other parts
- Belt Drive
- 10" cast iron balanced flywheel provides steady power
- Top-Mounted Controls
- Quick-set regulator, tank & tool pressure gauges are easy to check
- Quick-connect air outlet & on/off switch within easy reach
- Oil Level Sight Glass
- Simplifies maintenance of the oil-lubricated pump
- 20-Gallon Portable Tank
- Pneumatic tires reduce vibration; handle varied terrain
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMLA1682066
General Information
Product Category
Air Compressor - Portable
Engine
HP
1.6
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.2
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Portable
Weight
159 Pounds
Certification
ASME, UL, CSA
Consumer Warranty
1 Year
Product Length
25 Inches
Product Width
24.5 Inches
Product Height
49 Inches
Power Type
Electric
UPC
846212024287
