Eagle Silent Series 1.5-HP 5.5-Gallon Air Compressor

Model:

EA-5000

Write A Review
$569.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 3 In-Stock
Ships Tuesday, Mar 19th
Shipping to60601

Eagle Silent Series 1.5-HP 5.5-Gallon Air Compressor
Eagle Silent Series 1.5-HP 5.5-Gallon Air Compressor
Model: EA-5000
$569.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Horizontal

CFM

5

Tank Size

5.5



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Silent Series

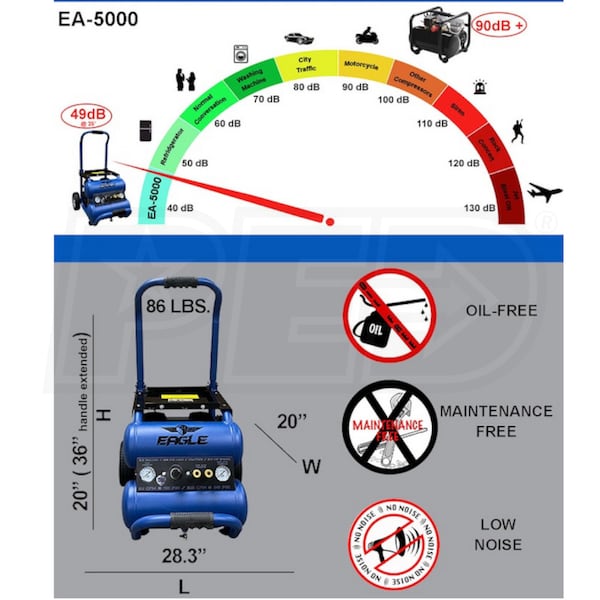

  • Rated at 49 dB from 25 feet away; softer than most conversations
  • Life expectancy more than 4 times longer than most oil-free air compressors
  • 1.5 Running HP & 2-HP (Peak) Motor
  • Draws only 8 amps, works on most household 115V outlets
  • Oil-Free Double Piston Pump System
  • Produces 5 CFM at 90 PSI; 6.1 CFM at 40 PSI with a 50% duty cycle to power small air tools
  • Oil-free system requires no pump maintenance
  • Top-Mounted Control Panel
  • Dual gauges to monitor tool & tank pressure at a glance
  • Two 1/4" air hose quick connectors for fast tool changes
  • Oversized regulator knob is easy to use, even wearing work gloves
  • 5.5 Gallons Of Air In Two Tanks
  • Easy to carry, transport & store; 125 PSI maximum pressure
  • Lever-Type Tank Drain Valve
  • Simplifies maintenance; extends air tank life

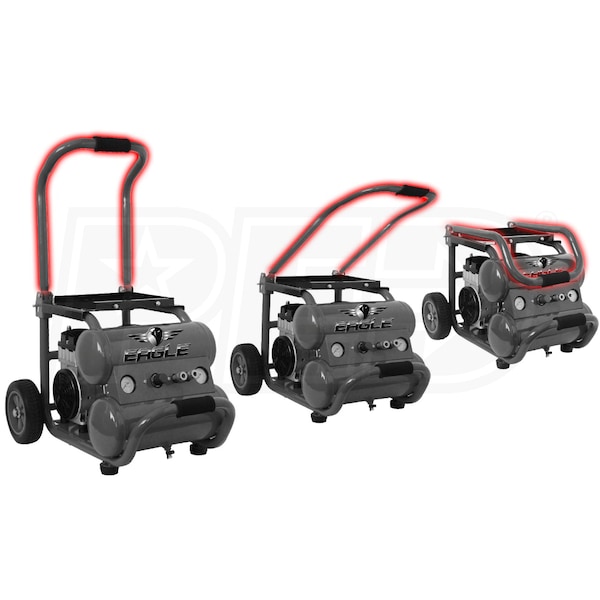

  • Roll Cage Design With Fold-Down Handle & Anti-Vibration Feet
  • Handle folds down for easy transport & storage
  • Never-flat wheels take on stairs & rugged terrain with ease
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EA-5000
specs product image PID-70903
General Information
Product Category
Air Compressor - Portable
Engine
HP
1.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
49
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
8
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5
CFM Rated @
90 PSI
CFM @ 40 PSI
6.1
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Oil Type
Oil Free
Duty Cycle
50%
Tank
Tank Size
5.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
86 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
28.3 Inches
Product Width
20 Inches
Product Height
20 Inches
Power Type
Electric
UPC
020791503917
