Features
Grade
Contractor
Style
Portable - Vertical
CFM
6
Tank Size
15
- Silent Series

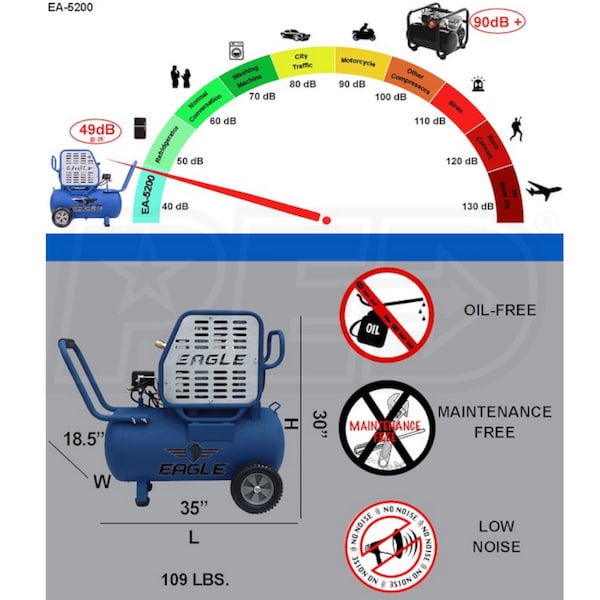

- Rated at 69 dB from 25 feet away
- Life expectancy more than 4 times longer than most oil-free air compressors
- 2-HP (Peak) Motor
- Draws only 14 amps, works on most household 115V outlets
- Oil-Free Double Piston Pump System
- 6 CFM at 90 PSI; 7.9 CFM at 40 PSI
- 50% duty cycle to power small air tools
- Oil-free system requires no pump maintenance
- Top-Mounted Control Panel

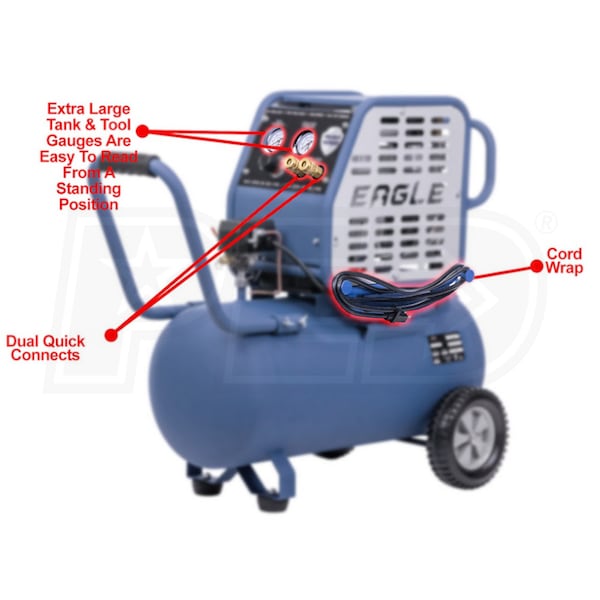

- Dual gauges to monitor tool & tank pressure at a glance
- Two 1/4" air hose quick connectors for fast tool changes
- Oversized regulator knob is easy to use, even wearing work gloves
- 20 Gallon Horizontal Air Tank

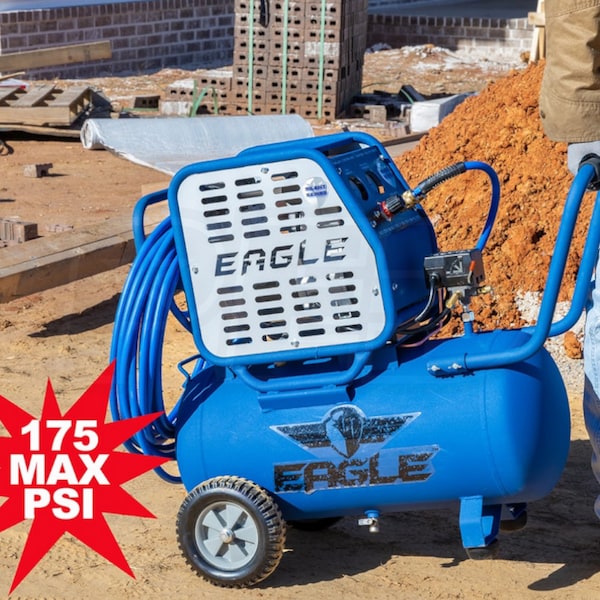

- Easy to transport & store; 175 PSI maximum pressure

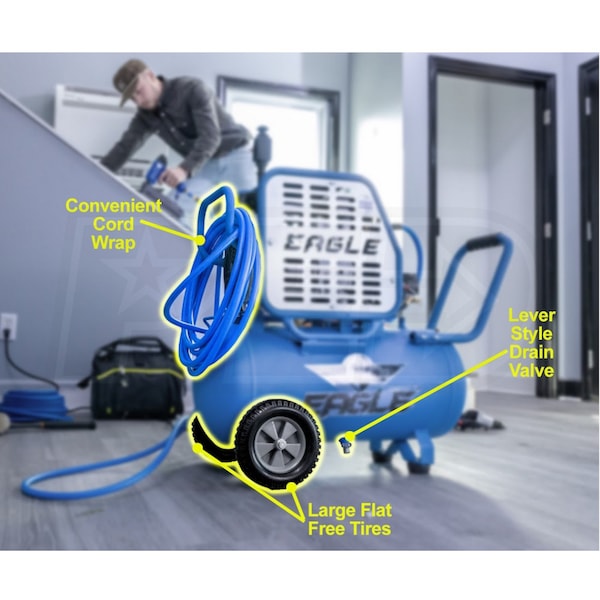

- Lever-Type Tank Drain Valve
- Simplifies maintenance; extends air tank life
- Tank-Mounted Handle w/ Anti-Vibration Feet
- Never-flat wheels take on stairs & rugged terrain with ease
- 1-Year Factory Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm, and Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
EA-5200
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6
CFM Rated @
90 PSI
CFM @ 40 PSI
7.9
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
50%
Tank
Tank Size
15 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
115 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
14 Inches
Product Height
29 Inches
Power Type
Electric
UPC
020791505461
Reviews
Eagle EA-5200 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Joshua, the Air Compressor Expert
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We’ve all heard that Rome wasn’t built in a day, but then again the Romans didn...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
EA-5200
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

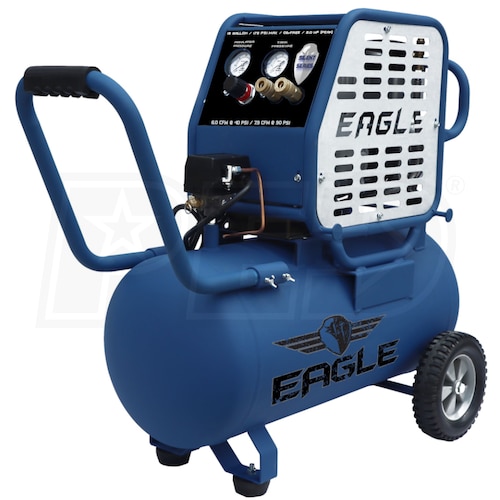

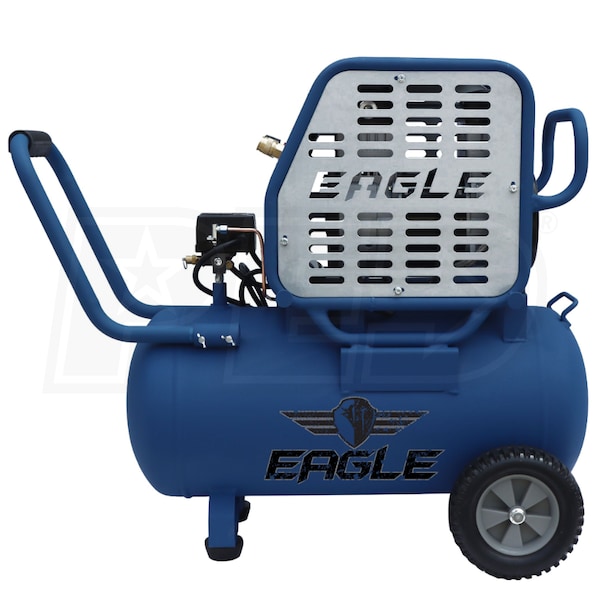

Eagle Silent Series 2-HP 15-Gallon Air Compressor
