Features
Grade
Contractor
Style
Portable - Horizontal
CFM
6
Tank Size
6
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Silent Series
Rated at 53 dB from 25 feet away; softer than most conversations
Life expectancy more than 4 times longer than most oil-free air compressors
2-HP Running & 2.5-HP (Peak) Motor
Draws only 8 amps, works on most household 115V outlets
Oil-Free Double Piston Pump System
Produces 6 CFM at 90 PSI; 7.9 CFM at 40 PSI
Oil-free system requires no pump maintenance and 50% duty cycle

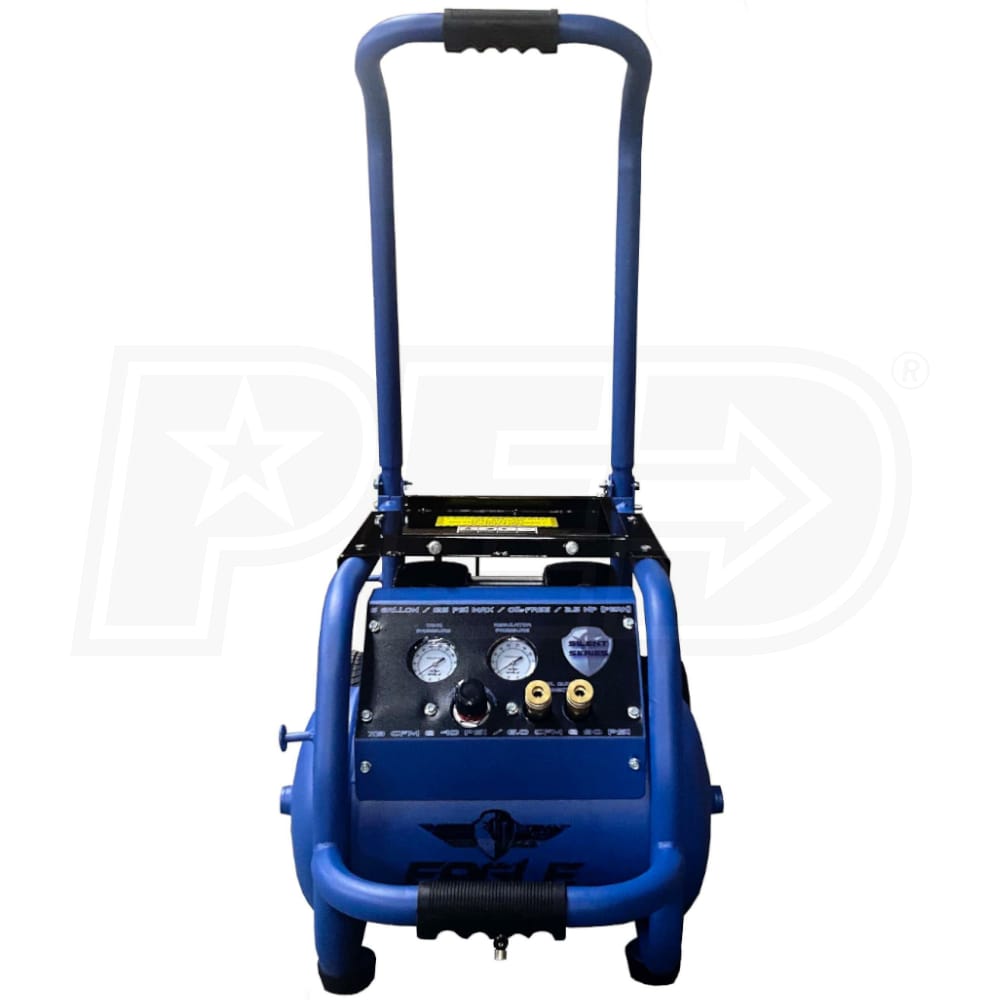

Top-Mounted Control Panel
Dual gauges to monitor tool and tank pressure at a glance
Two 1/4" air hose quick connectors for fast tool changes
Oversized regulator knob is easy to use, even wearing work gloves
6 Gallon Air Tank
Easy to carry, transport & store; 125 PSI maximum pressure
Lever-Type Tank Drain Valve
Simplifies maintenance; extends air tank life

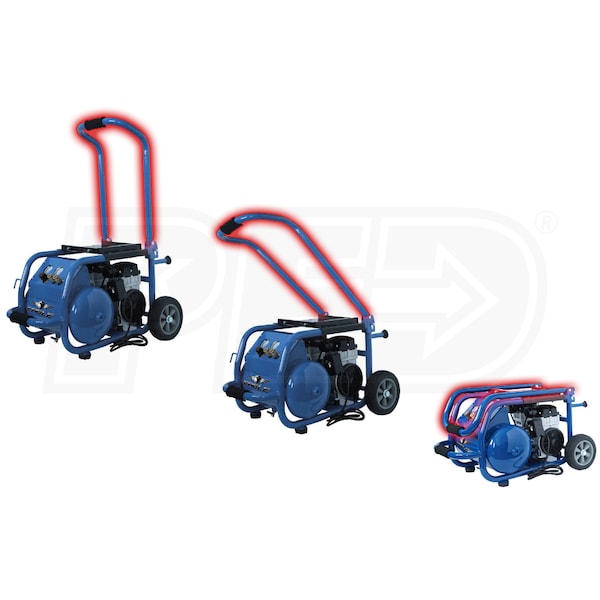

Roll Cage Design With Fold-Down Handle & Anti-Vibration Feet
Handle folds down for easy transport & storage
Never-flat wheels take on stairs & rugged terrain with ease
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
dBA dBASound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53
Magnetic Starter Magnetic StarterThe Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
8
Pump
CFM CFMCubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6
CFM Rated @
90 PSI
CFM @ 40 PSI
7.9
Pump Material
Aluminum
Max PSI Max PSIPSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler After CoolerAn aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Oil Type
Oil Free
Duty Cycle
50%
Tank
Tank Size
6 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Electronic Drain ValveThe inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
96 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year

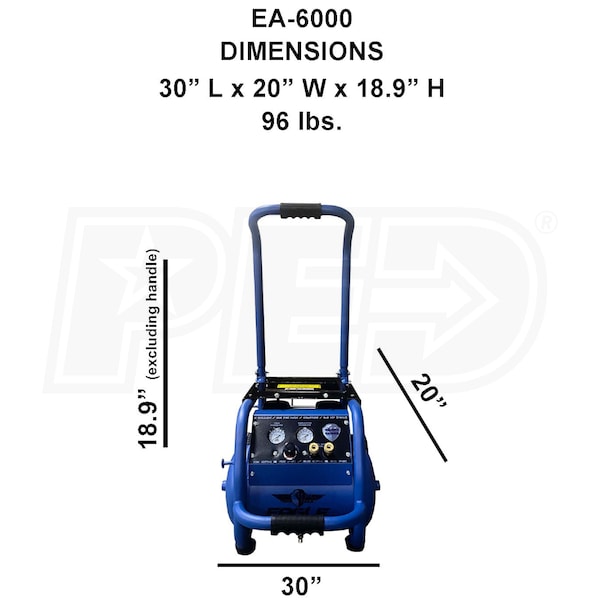

Product Length
30 Inches
Product Width
20 Inches
Product Height
18.9 Inches
Power Type
Electric
UPC
020791503924
Reviews
(36)
Eagle EA-6000 Reviews & Ratings
Customer Photos and Videos
Product Q&A
(1)
Product QuestionsAnswered by Joshua, the Air Compressor Expert
On the top of my compressor, it seems like something would mount on top. There are side brackets and two set screws.
Jonathan
from Oklahoma
July 05, 2018
Answer
There should be a black bracket with screws that sits on top of your compressor and your handles fold down around it (see our website product page). If this is the bracket you are speaking of, it is just to hold tools, screws and any other miscellaneous items that you may be working with while using your compressor.
Was this answer helpful?
Yes
1
No
0
