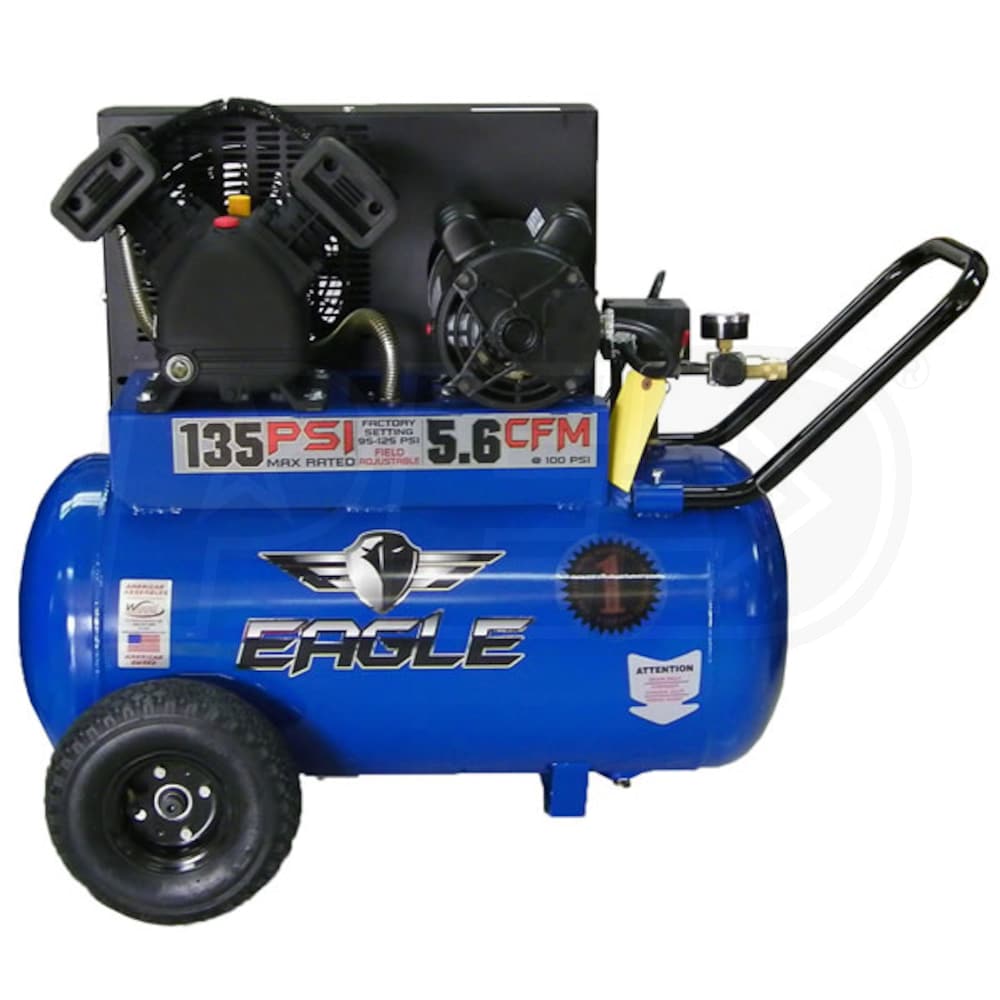

Eagle 3-HP 20-Gallon (Belt Drive) Cast-Iron Air Compressor

Model:

P3120H1-CC

Write A Review
$944.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Eagle 3-HP 20-Gallon (Belt Drive) Cast-Iron Air Compressor
Eagle 3-HP 20-Gallon (Belt Drive) Cast-Iron Air Compressor
Model: P3120H1-CC
$944.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Horizontal

CFM

5.6

Tank Size

20

  • Rugged Compressor With Cast Iron Cylinders
  • Able to work hard & last a long time
  • "V" Design Minimizes Vibration
  • Improves cooling and extends compressor life
  • Individual & Removable Cylinders
  • For smoother and cooler operation
  • Thermally Protected Motor Wired For 115 Volt
  • Can also be wired for 230V-1 power
  • 20 Gallon Air Tank
  • Rated to 150 PSI; 5.6 CFM @ 90 PSI
  • Sturdy Pneumatic Tires
  • Easy handling & manuverability
  • Efficient Heat Removal From Pulley-Fan
  • For cooler running and longer life
  • Sturdy Metal Belt Guard
  • Protects you and the belt during operation & transport
  • Outlet Valve & Regulator Included
  • Easy view oil sight glass makes maintenance simple
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

P3120H1-CC
specs product image PID-5483
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Recommended Breaker
Consult Certified Electrician
Engine
HP
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.6
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
144 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
33 Inches
Product Width
15 Inches
Product Height
31 Inches
Power Type
Electric
UPC
777589003578
