How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
What is Local Pickup?
How Do I Update My Pickup Location?
How Do I Place a Local Pickup Order?
When Can Items Be Picked Up?
Who Can Pick Up My Order?
Why Can't I Select Local Pickup for Some Items?
Why Can't I Select Shipping for Some Items?
Which Payment Methods Are Accepted?
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.1
Tank Size
15
- High Performance 225 PSI Air Compressor
- Higher pressure for longer tool run times & increased efficiency

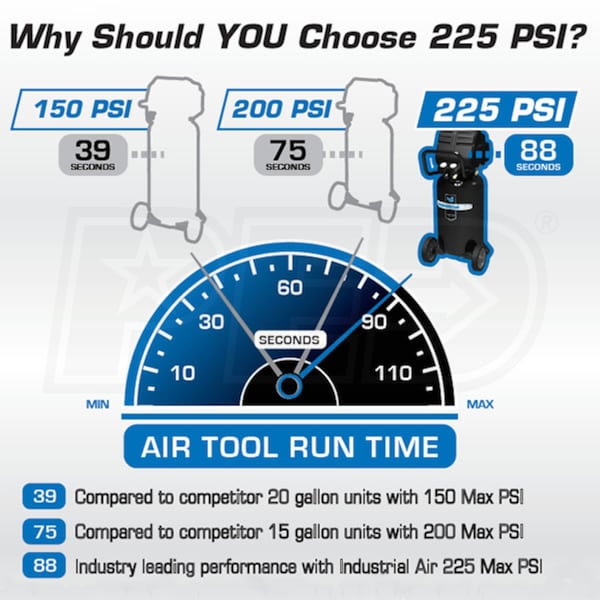

- Twice the run time of a 20 gallon, 150 PSI unit
- Oil-Free Motor & Pump
- Simple to maintain & operate
- Fully Enclosed Shroud
- Protects the motor and pump components

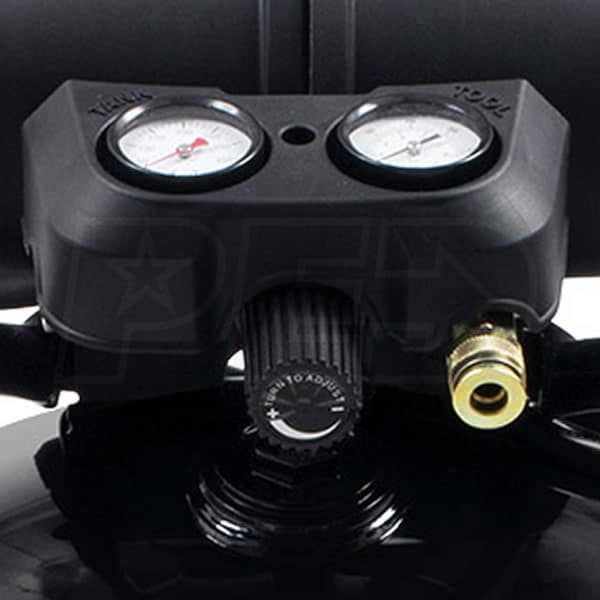

- Centrally Located Controls
- Protected by the handle; easy access to the pressure regulator
- Check tank & outlet gauges at a glance
- 15 Gallon Tank
- Quick-connect air outlet within convenient reach
- 6.8 CFM At 40 PSI; 5.1 CFM At 90 PSI
- Runs a wide variety of air tools
- Requires a 120 volt, single phase, 24 amp circuit
- 8-Inch Semi-Pneumatic Wheels
- Easy to transport & store
- 2 Year Factory Warranty
- Limited to defects in materials and workmanship
- CSA certified for increased assurance of quality and safety
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
C151I
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
24
Recommended Breaker
15 Amp Breaker
Engine
HP
1.7
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.1
CFM Rated @
90 PSI
CFM @ 40 PSI
6.8
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
225 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
15 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
99 Pounds
Certification
CSA
Consumer Warranty
2 Years
Product Length
24 Inches
Product Width
20 Inches
Product Height
43.5 Inches
Power Type
Electric
UPC
846212024928
