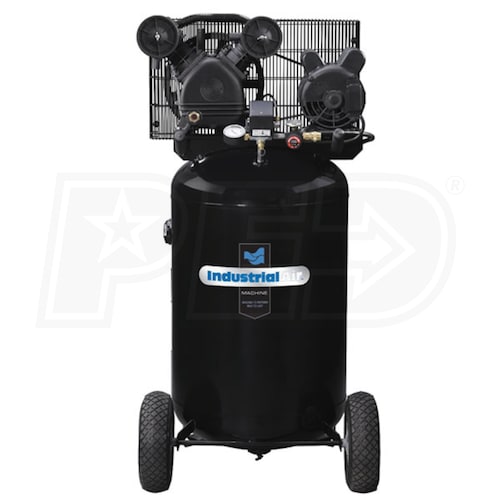

Industrial Air 1.6-HP 30-Gallon (Belt Drive) Air Compressor

Model:

ILA1683066

Write A Review
$965.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from Industrial Air
Shipping to60601

Industrial Air 1.6-HP 30-Gallon (Belt Drive) Air Compressor
Industrial Air 1.6-HP 30-Gallon (Belt Drive) Air Compressor
Model: ILA1683066
$965.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

5.3

Tank Size

30

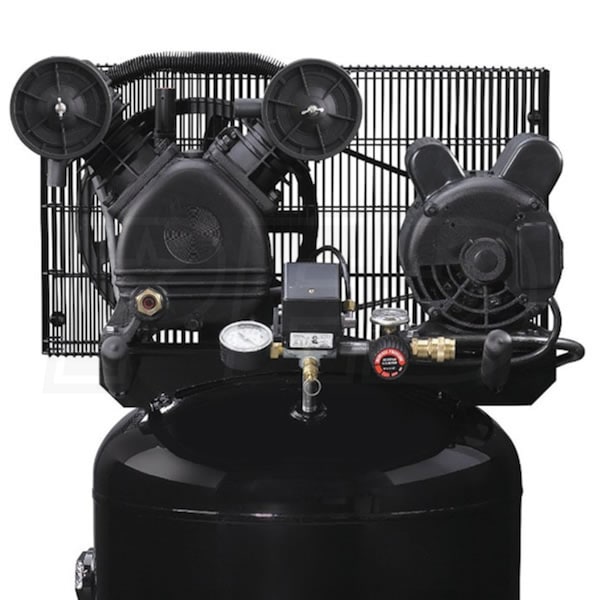

  • Cast Iron V-Twin Cylinder Pump
  • Durable & dependable performance drives many air tools
  • Produces 6.2 CFM at 40 PSI; 5.3 CFM at 90 PSI
  • Operating pressure 105-155 PSI with 155 PSI max
  • Belt Driven & Oil Lubricated
  • Less noise than direct drive compressors
  • 10" cast iron balanced flywheel for smooth, powerful operation
  • Heavy Duty Dual Voltage 1.6-HP Induction Motor
  • Wired for standard 120V outlet; may be converted to 240V use
  • Quick-Set Regulator, Tank & Tool Pressure Gauges
  • Monitor compressor performance at a glance
  • Quick Connect Air Outlet
  • Switch tools quickly & easily
  • Vertical Frame With Handle
  • Pneumatic tires for maximum portability; quiets vibration
  • Factory Warranty
  • 1 year for residential use; 90 days for commercial use
  • Limited to defect in materials and workmanship
  • 30 Gallon Air Tank
  • Easily accessed oil fill makes maintenance simple
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ILA1683066
specs product image PID-13349
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15 Amps (120V) / 7.5 Amps (240V)
Recommended Breaker
Consult Certified Electrician
Engine
HP
1.6
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.2
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
154 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
25 Inches
Product Width
24.5 Inches
Product Height
50 Inches
Power Type
Electric
UPC
846212003626
