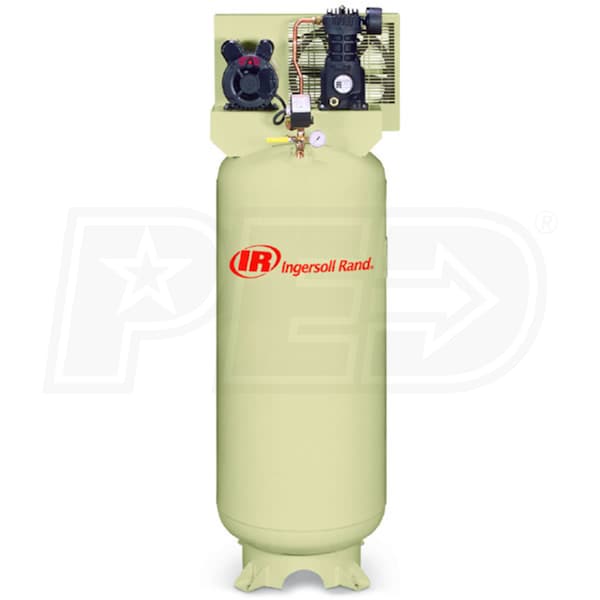

Ingersoll Rand 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)

Model:

SS3L3

Recommended
Write A Review
$999.99
Was $1,099.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Apr 28th
Shipping to60601

Ingersoll Rand 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)
Ingersoll Rand 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)
Model: SS3L3
$999.99
Was $1,099.99
Accessories
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

11.3

Tank Size

60



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    California residents see
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
    For more information go to: www.p65Warnings.ca.gov

    Specifications

    SS3L3
    specs product image PID-688
    General Information
    Product Category
    Air Compressor - Stationary

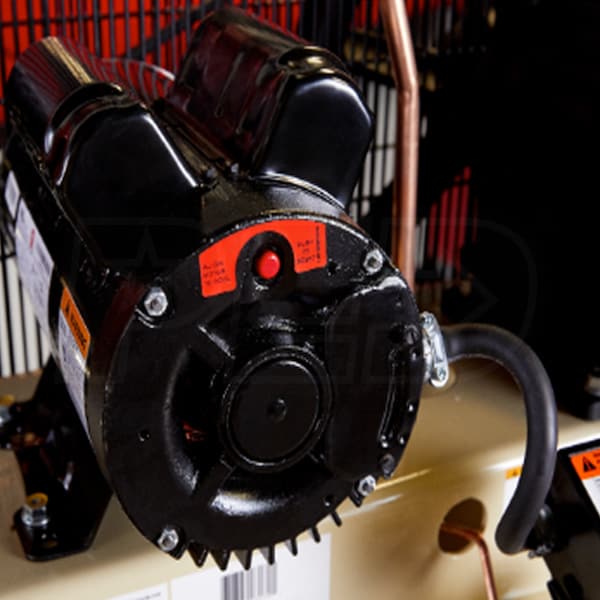

    Motor
    Voltage
    230 Volt AC
    Phase
    1-Phase
    Magnetic Starter Learn More
    Magnetic Starter
    The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
    No
    Amp Draw
    Consult Certified Electrician
    Recommended Breaker
    Consult Certified Electrician
    Engine
    HP
    3

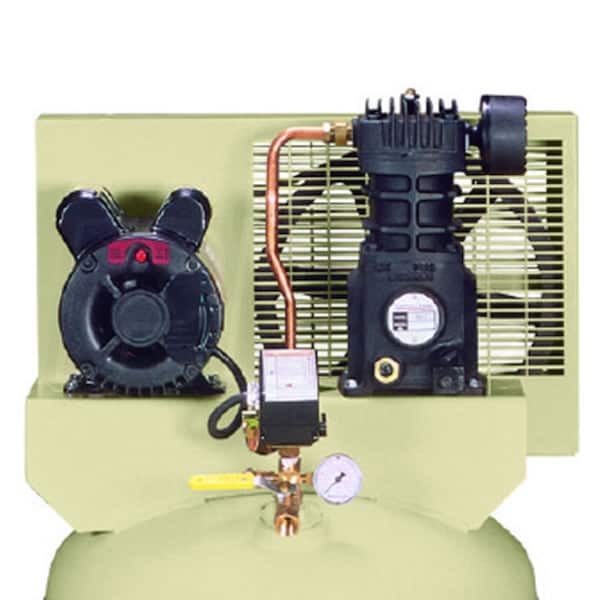

    Pump
    CFM Learn More
    CFM
    Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
    11.3
    CFM Rated @
    90 PSI
    Pump Material
    Solid Cast Iron
    Max PSI Learn More
    Max PSI
    PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
    135 PSI
    Oil Sight Glass
    Yes
    Pump Type
    Single-Stage
    After Cooler Learn More
    After Cooler
    An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
    No
    Pump Drive
    Belt Drive
    Oil Type
    Oil Lubricated
    Oil System
    Splash Lubricated
    Pump Low Oil Shut-off Learn More
    Pump Low Oil Shut-off
    Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
    No
    Tank
    Tank Size
    60 Gallons
    Tank Outlet
    1/2 Inch
    Electronic Drain Valve Learn More
    Electronic Drain Valve
    The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
    No
    Tank Orientation
    Vertical
    Filter
    Regulator
    No
    Accessories
    Pressure Gauge
    Yes
    Air Dryer
    No
    Overview
    Product Category
    Air Compressor - Stationary
    Weight
    300 Pounds
    Certification
    UL/CSA/ASME
    Consumer Warranty
    1 Year
    Commercial Warranty
    1 Year
    Product Length
    24 Inches
    Product Width
    25 Inches
    Product Height
    67 Inches
    Power Type
    Electric
    UPC
    678384340052

    Reviews

    (29)
    Ingersoll Rand SS3L3 Reviews & Ratings

    Product Q&A

    (4)
    Expert avatar photo
    Product Questions Answered by Melissa, the Air Compressor Expert
    How many amps does this draw?
    LARRY
    from Maryland
    May 09, 2020
    I think the coil on the motor went out. Is it a replaceable part, and are replacement parts available for this unit?
    Jeff
    from Texas
    September 15, 2019
    What brand of motor is on this compressor?
    Misty
    from Texas
    October 05, 2018
    I am trying to compare Ingersol Rand w/the porter cable. IE...will one support a D.A. and a spray gun at the same time better than the other. Price comparison, Noise level, etc...
    Nunya
    from Illinois
    October 26, 2011
