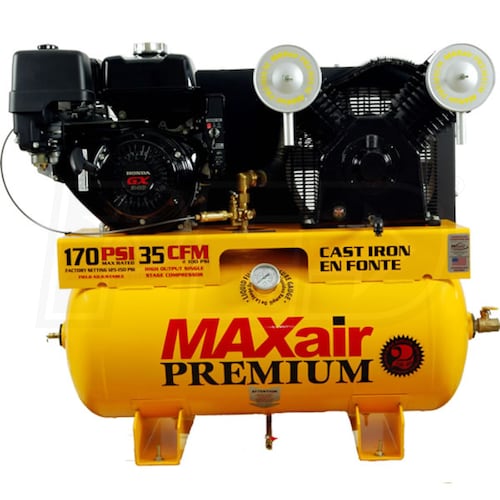

MAXair 13-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: 11G30TRKE-H-MAP
+
Share This Product
-
Product Description
-
9Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
35
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
35 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Single Stage Commercial Pump Series Truck Mount Compressor
- Innovative high pressure pump technology produces 170 PSI
- Great for mobile services, spray foaming, and construction jobs
- Industry leading CFM production
- 13-HP Honda GX340 Manual/Electric Start Engine
- Dependable commercial grade engine starts easily, runs quietly
- Sturdy metal belt guard protects the belt & the user
- Precision engineered components result in lower vibration
- Engine Idle Control
- Reduces operating cost & unnecessary wear
- Low oil shut down for maximum protection

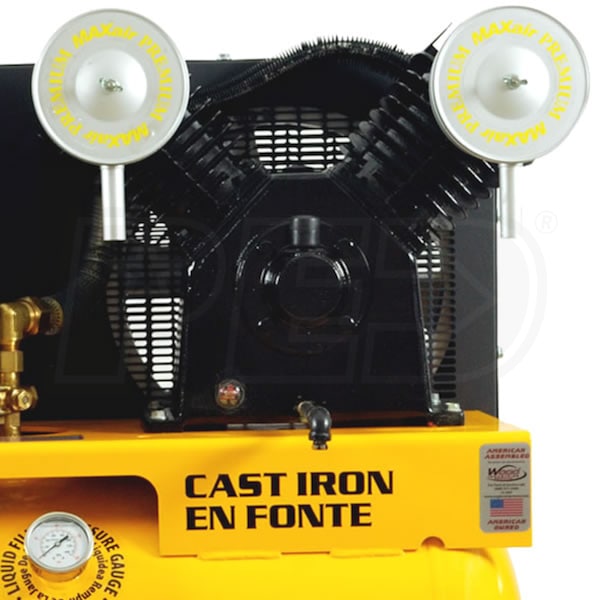

- Rugged Cast Iron "V" Style Pump
- V-style minimizes vibration, improves cooling for longer service
- Efficient heat removal from flywheel for cooler running & longer life
- Removable cylinders for smooth operation & easy maintenance
- High efficiency reed valves for maximum performance
- Premium "Auto Drop" Air Filters
- Automotive style filter elements; no hassle replacement
- 30 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Rated to 200 PSI
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Uses 12 Volt, Motorcycle-Style Starter Battery
- Battery and cables not included; must be purchased separately
- Generous 2-Year Limited Manufacturer Warranty
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
475 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
45 Inches
Product Width
19 Inches
Product Height
38.5 Inches
Power Type
Gas
UPC
020791502491
Grade
Style
Engine Brand
CFM
35
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
35 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Single Stage Commercial Pump Series Truck Mount Compressor
- Innovative high pressure pump technology produces 170 PSI
- Great for mobile services, spray foaming, and construction jobs
- Industry leading CFM production
- 13-HP Honda GX340 Manual/Electric Start Engine
- Dependable commercial grade engine starts easily, runs quietly
- Sturdy metal belt guard protects the belt & the user
- Precision engineered components result in lower vibration
- Engine Idle Control
- Reduces operating cost & unnecessary wear
- Low oil shut down for maximum protection
- Rugged Cast Iron "V" Style Pump
- V-style minimizes vibration, improves cooling for longer service
- Efficient heat removal from flywheel for cooler running & longer life
- Removable cylinders for smooth operation & easy maintenance
- High efficiency reed valves for maximum performance
- Premium "Auto Drop" Air Filters
- Automotive style filter elements; no hassle replacement
- 30 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Rated to 200 PSI
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Uses 12 Volt, Motorcycle-Style Starter Battery
- Battery and cables not included; must be purchased separately
- Generous 2-Year Limited Manufacturer Warranty
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
475 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
45 Inches
Product Width
19 Inches
Product Height
38.5 Inches
Power Type
Gas
UPC
020791502491
Product Specs
+−
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
475 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
45 Inches
Product Width
19 Inches
Product Height
38.5 Inches
Power Type
Gas
UPC
020791502491
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−

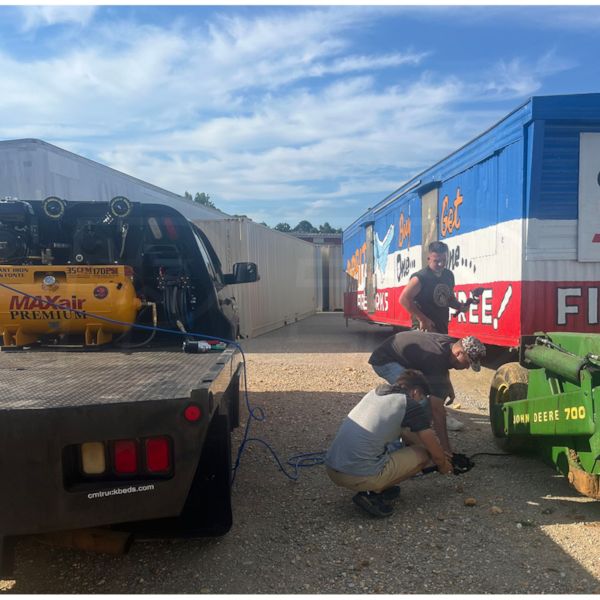

In 60 minutes, how many minutes should I let thtis rest for. I want to use it for sprinkler blowouts, but they take about an hour of constant running
Jon
from Colorado
October 11, 2016
Answer
I checked with the folks at MAXair, and they say this unit is a 50% duty cycle air compressor. It's a 35 CFM air compressor so the air capacity is large, but it will depend on the size of the sprinkler system that is being cleaned.
They also told us they have other customers who clean sprinkler systems who got the 18G55TRKE-H-MAP because of the 55CFM rating.
They also told us they have other customers who clean sprinkler systems who got the 18G55TRKE-H-MAP because of the 55CFM rating.
