MAXair 9-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine

Model:

9G30TRKE-H-MAP

Write A Review
$3,119.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability July 01, 2024
Shipping to60601

MAXair 9-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine
MAXair 9-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: 9G30TRKE-H-MAP
$3,119.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

18.5

Tank Size

30

  • Heavy-Duty Commercial Single Stage Truck Mount
  • Great for mobile services and utility/construction jobs
  • Industry leading CFM production

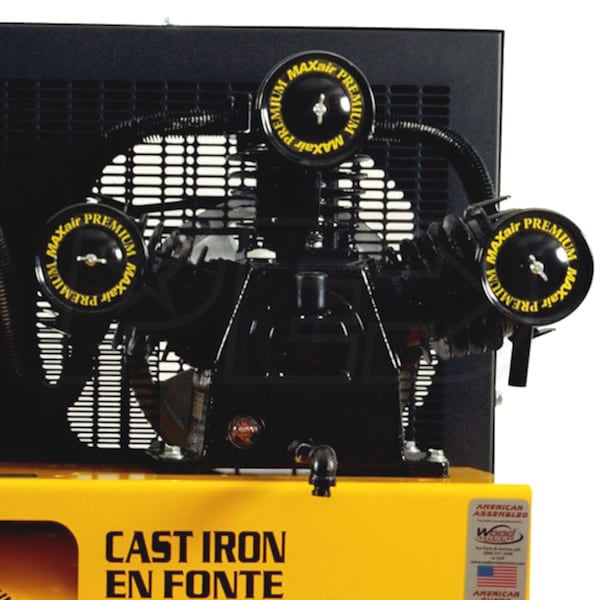

  • 3 Piston "V" Style Cast Iron Pump
  • High efficiency reed valves for maximum performance
  • Innovative high pressure pump technology produces 170 PSI
  • V-style minimizes vibration, improves cooling for longer service
  • 9-HP Honda GX270 Manual/Electric Start Engine
  • Dependable commercial grade engine starts easily, runs quietly
  • Low shut down for maximum protection
  • Idle control reduces operating cost & unnecessary wear and tear
  • 30 Gallon ASME Certified Air Tank
  • Rated to 150 PSI; 3/4" outlet
  • Premium "Auto Drop" Air Filters
  • Automotive style filter elements; no hassle replacement
  • Pro-Style Gauges
  • Liquid filled pressure gauge is easy to read
  • Easy-view oil sight gauge for optimum maintenance
  • Convenient Drains
  • Extended oil drain allows for easy access
  • Moisture drain on front of tank eliminates scraped knuckles
  • Sturdy Metal Belt Guard
  • Protects the flywheel and the operator
  • Uses 12 Volt, Motorcycle-Style Starter Battery
  • Battery & cables not included; must be purchased separately
  • Generous 2-Year Limited Manufacturer Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

9G30TRKE-H-MAP
specs product image PID-6973
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
400 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
41 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
020791502484
