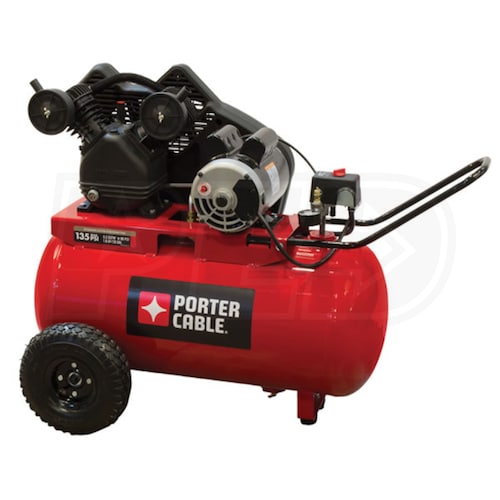

Porter Cable 1.6-HP 20-Gallon (Belt Drive) Dual Voltage Air Compressor

Model:

PXCMPC1682066

Write A Review
$919.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 4 In-Stock
Ships from Porter Cable
Shipping to60601

Porter Cable 1.6-HP 20-Gallon (Belt Drive) Dual Voltage Air Compressor
Porter Cable 1.6-HP 20-Gallon (Belt Drive) Dual Voltage Air Compressor
Model: PXCMPC1682066
$919.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

5.3

Tank Size

20

  • 1.6 HP Dual Voltage Motor
  • Wired for standard 120 volt outlet, may be converted to 240 Volt
  • Heavy duty induction motor for maximum performance & reliability
  • Cast Iron V-Twin Cylinder Pump
  • Thermally stable, durable one-piece cast iron crankcase
  • Aluminum head helps dissipate heat
  • Automotive-style ball bearings provide smooth operation
  • Oil Lubricated Pump
  • Oil level sight glass for easy maintenance
  • Easily accessible oil fill
  • 10" Cast Iron Balanced Flywheel
  • Belt drive runs more efficiently than direct drive units
  • Belt enclosure protects the belt & the operator
  • 20 Gallon Air Tank
  • Pneumatic tires take on varied terrain at home or job site
  • Convenient Top-Mounted Controls
  • Dual gauges monitor tank & tool pressure at a glance
  • Quick connect 1/4" air outlet for fast hose connection
  • On/Off switch saves wear & tear on the power cord
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PXCMPC1682066
specs product image PID-9190
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Recommended Breaker
25 Amp Breaker
Engine
HP
1.6
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.2
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
155 Pounds
Certification
UL
Consumer Warranty
2 Years
Product Length
34.25 Inches
Product Width
23.25 Inches
Product Height
35.5 Inches
Power Type
Electric
UPC
846212006191
