Features
Grade
Contractor
Style
Portable - Vertical
CFM
3.7
Tank Size
8
- Professional Grade Single-Stage Direct Drive Air Compressor
- Provides power, durability and portability on the job site
- Designed for professionals and serious do-it-yourselfers
- Can be used for a wide variety of jobs, including inflating tires, sporting equipment and pool toys; air nailing baseboards, trim - and much more
- Durable Cast Iron Cylinder Pump
- Delivers 3.7 CFM @ 90 PSI; 4.2 CFM @ 40 PSI
- Deep finned die cast aluminum head to dissipate heat better
- Floating type valves help for trouble-free performance and much longer valve life
- Heavy-Duty 1.5-HP Induction Motor
- Offers low sound at 80 dBA
- 1720 RPM keeps pump cooler and prolongs life
- Delivers dependability and smooth operation
- 8-Gallon Vertical Air Tank
- Rated up to 135 PSI working pressure
- ASME safety valve for the ultimate protection
- Offers smaller footprint than horizontal units and takes up less space
- Steel Wheels w/ Flat Free Tires
- Always ready for rugged and harsh terrain
- Makes it easy to move around the jobsite, shop or garage
- Pressure On/Off Switch
- Preset at 105/135 operating pressure
- Regulates air pressure in the compressor for maximum performance
- Built-In Regulator With Gauges
- Two 1/4” quick-connects run 2 tools at once
- Let's you control the amount of pressure to get the job done right
- Manual Tank Drain
- Removes condensation/moisture to prevent rust formation
- Extends the life of your air compressor tank
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DD1508VP
General Information
Product Category
Air Compressor - Portable
Engine
HP
1.5
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA
81
Magnetic Starter
No
Amp Draw
11
Pump
CFM
3.7
CFM Rated @
90 PSI
CFM @ 40 PSI
4.2
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Portable
Weight
80 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16.5 Inches
Product Width
16.3 Inches
Product Height
35.4 Inches
Power Type
Electric
UPC
636084012037
Reviews
Puma DD1508VP Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Joshua. the Air Compressor Expert
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We’ve all heard that Rome wasn’t built in a day, but then again the Romans didn...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
DD1508VP
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

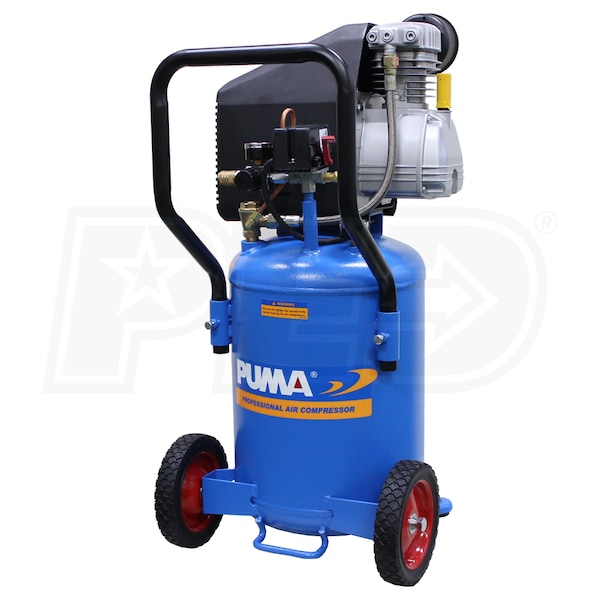

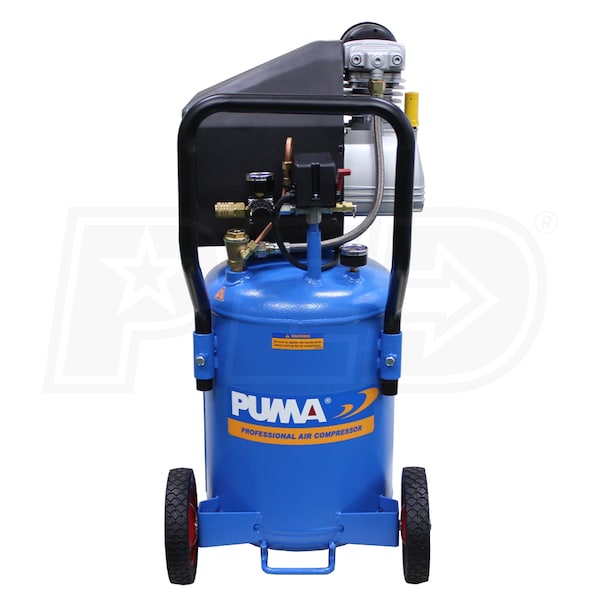

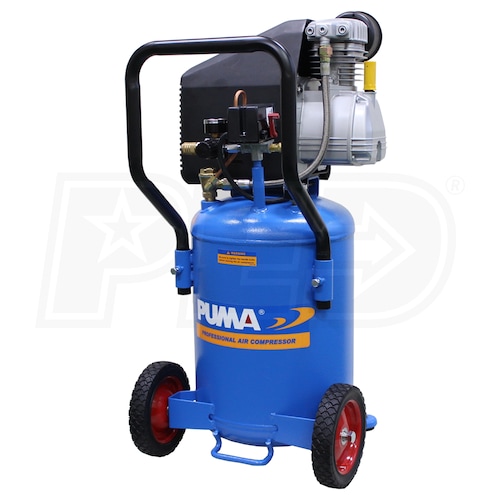

Puma 1.5-HP 8-Gallon Air Compressor
