Features
Grade
Contractor
Style
Portable - Horizontal
Engine Brand
Honda GX
CFM
11
Tank Size
20
- 5.5 HP Honda Engine
- Starts easy, works hard, and runs quiet
- Twin Pump Cylinders
- Durable and dependable, operates smoothly
- Tough enough for professional use
- Delivers 12.6 CFM at 40 PSI; 11 CFM at 90 PSI
- Sturdy 20 Gallon Tank
- Handles on each end for ease of transport
- Pneumatic wheels dampen vibration
- 2 Air Outlets
- Work more efficiently with 2 air tool outlets
- Built-In Air Gauges
- Easily monitor tank pressure & outlet pressure
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PUN-5520G
General Information
Product Category
Air Compressor - Portable
Engine
HP
5.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Motor
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
202 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
43.5 Inches
Product Width
17.5 Inches
Product Height
34.5 Inches
Power Type
Gas
UPC
0636084024412
Additional Model Numbers
PUN5520G, PUN-5520G
Reviews
(10)
Puma PUN-5520G Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
Do you know if the discharge fittings (quick connect) are high flow fittings?
David G
from Arizona
June 22, 2019
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We’ve all heard that Rome wasn’t built in a day, but then again the Romans didn...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
PUN-5520G
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

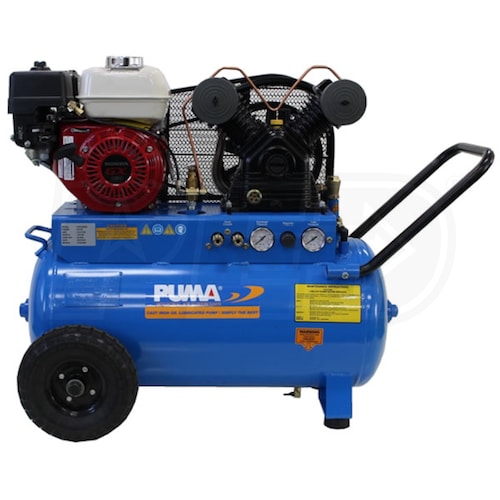

Puma 5.5-HP 20-Gallon (Belt Drive) Air Compressor w/ Honda Engine
