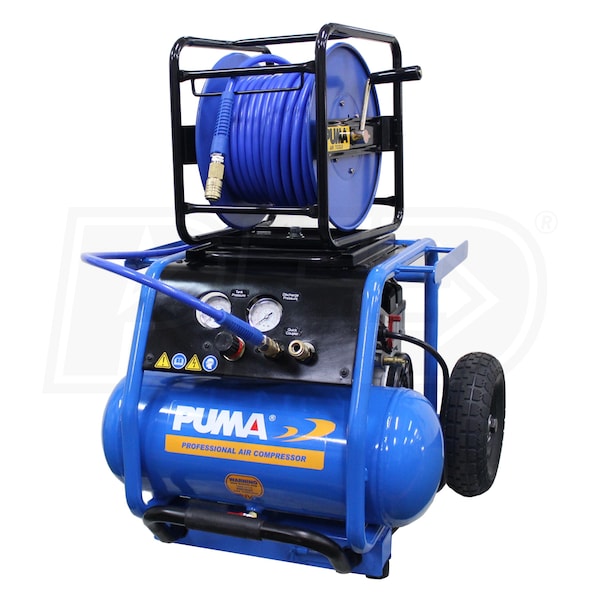

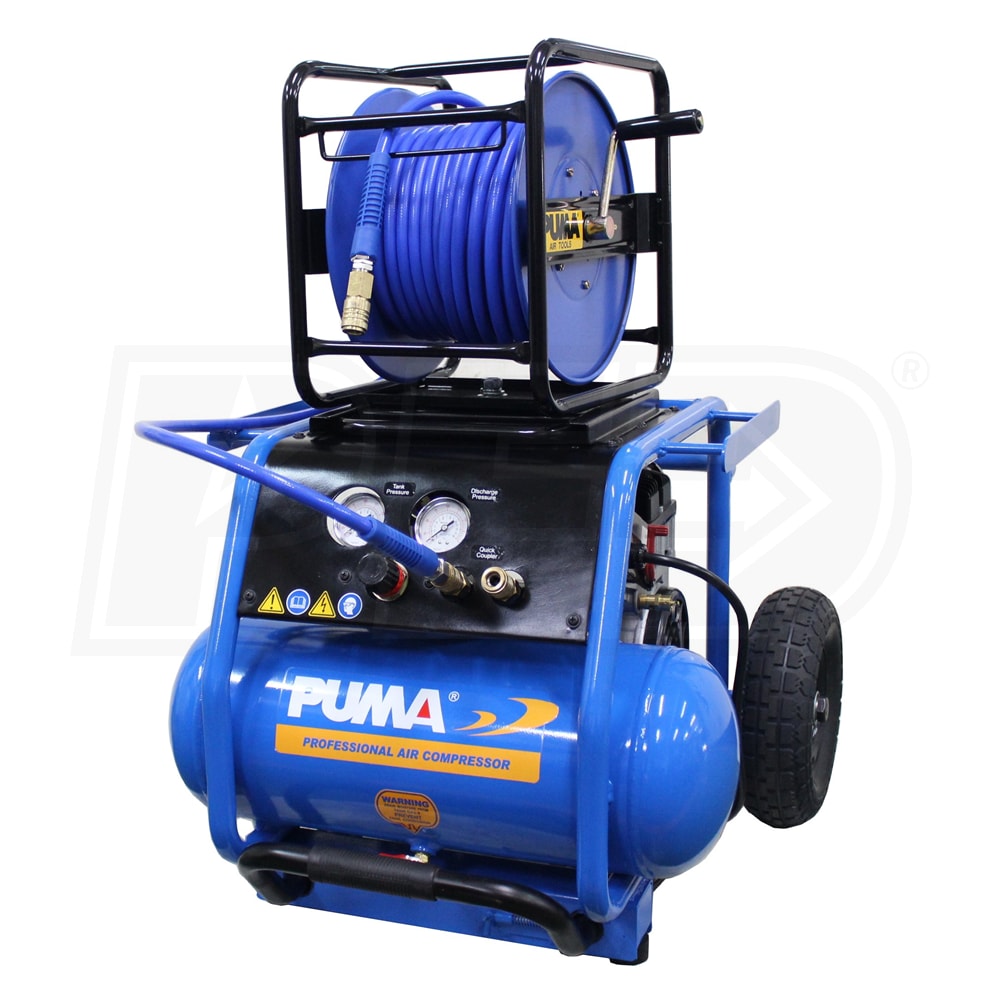

Puma 1.5-HP 4-Gallon Silent Oil-Less Air Compressor w/ Hose Reel

Model:

WE1504CK

Write A Review

Product Discontinued

Sorry, this product is no longer available.

Continue Shopping With These Categories

Shop All Small Air Compressors

Puma 1.5-HP 4-Gallon Silent Oil-Less Air Compressor w/ Hose Reel

Model: WE1504CK

Product Discontinued

Accessories

Features

Specifications

Reviews

How-To Articles

Manuals

Expert Recommended Accessories Selected by Joshua, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

4.0

Tank Size

4

Silent Professional Grade Air Compressor
Quiet operation at only 70dBA; ideal for indoor use
Two large easy-to-read pressure gauges with regulator
Great for powering inside finish air tools without disturbing anyone
Sturdy Removable Hose Reel
Includes durable 100 foot 3/8" hose
Can easily be mounted and removed on top of compressor
Oil-Free Direct Drive Unit
No need for oil separators in your airline system
Provides cleaner air for tool operation and less maintenance
Easy to use in a variety of different temperatures & uneven terrains
Heavy-Duty Single Stage Pump
Produces 4.0 CFM @ 90 PSI; 5.4 CFM @ 40 PSI
Maximum 135 PSI operating pressure
Perfect for staple guns, brad nail guns, finish nail guns, nail guns, airbrushes & blow guns
Durable 1.5-HP Induction Motor
Operates at a low 1750 RPM and extends motor life
Produces less heat that results in less wear & tear
Quiet enough to work next to all day without stress
4-Gallon Horizontal Air Tank
Easy to store and transport at only 88lbs
Larger 10" pneumatic wheels for great mobility
1/4" quick connect couplers let's you use 2 tools at once
Solid Caged Frame
Key components are well protected from being damaged
Retractable handle helps maneuver to where you need it
Dual Position Operability
Unit can be operated horizontally or vertically
Can be stored in either position for more space

California residents see

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

For more information go to: www.p65Warnings.ca.gov

Specifications

WE1504CK

General Information

Product Category

Air Compressor - Portable

Engine

1.5

Motor

Voltage

115 Volt AC

Phase

1-Phase

dBA

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

Magnetic Starter

The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.

Amp Draw

Pump

CFM

Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications

4.0

CFM Rated @

90 PSI

CFM @ 40 PSI

5.4

Pump Material

Aluminum

Max PSI

PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver

135 PSI

Pump Type

Single-Stage

After Cooler

An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor

Pump Drive

Direct Drive

Oil Type

Oil Free

Tank

Tank Size

4 Gallons

Tank Outlet

1/4 Inch

Electronic Drain Valve

The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining

Tank Orientation

Horizontal

Accessories

Pressure Gauge

Yes

Air Dryer

Overview

Product Category

Air Compressor - Portable

Weight

105 Pounds

Certification
