Features
Grade
Contractor
Style
Portable - Vertical
CFM
4
Tank Size
8
- Professional Grade Oil-Free Air Compressor
- Provides cleaner air for tool operation and less maintenance
- Easy to use in a variety of different temperatures & uneven terrains
- Oil-free pump allows for spray painting without the need for oil separators in the air system
- High Performance Aluminum Single Stage Pump
- Delivers 4.0 CFM @ 90 PSI; 5.4 CFM @ 40 PSI
- Optimizes strength and dissipates heat faster
- Offers excellent corrosion resistance and good thermal protection
- Heavy-Duty 1.5-HP Induction Motor
- 1720 RPM keeps pump cooler and prolongs life
- Lower RPM offers better efficiency and produces max output
- Quiet operation of 70 dBA brings less noise to your work environment
- 8-Gallon Vertical Air Tank
- Rated up to 135 PSI working pressure
- Offers smaller footprint than horizontal units and takes up less space
- Perfect for all inflation, finish nailing/stapling, hobby painting, bolting/fastening and medium duty framing/roofing
- Steel Wheels w/ Flat Free Tires
- Always ready for rugged and harsh terrain
- Makes it easy to move around the jobsite, shop or garage
- Pressure On/Off Switch
- Preset at 105/135 operating pressure
- Ensures max air flow to your tools for peak performance
- Manual Tank Drain
- Removes condensation/moisture to prevent rust formation
- Extends the life of your air compressor tank
- Convenient Built-In Regulator w/ Pressure Gauge
- Enables reliable discharge of air pressure from outlet to inlet
- Includes 1/4” quick-connect coupler to run your tools
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
WE1508VP
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4
CFM Rated @
90 PSI
CFM @ 40 PSI
5.4
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
88 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
16 Inches
Product Height
34.5 Inches
Power Type
Electric
UPC
636084010156
Reviews
Puma WE1508VP Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We’ve all heard that Rome wasn’t built in a day, but then again the Romans didn...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
WE1508VP
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

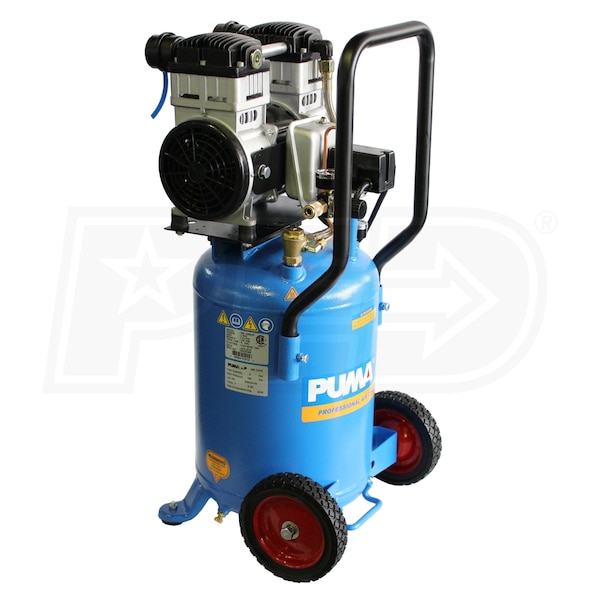

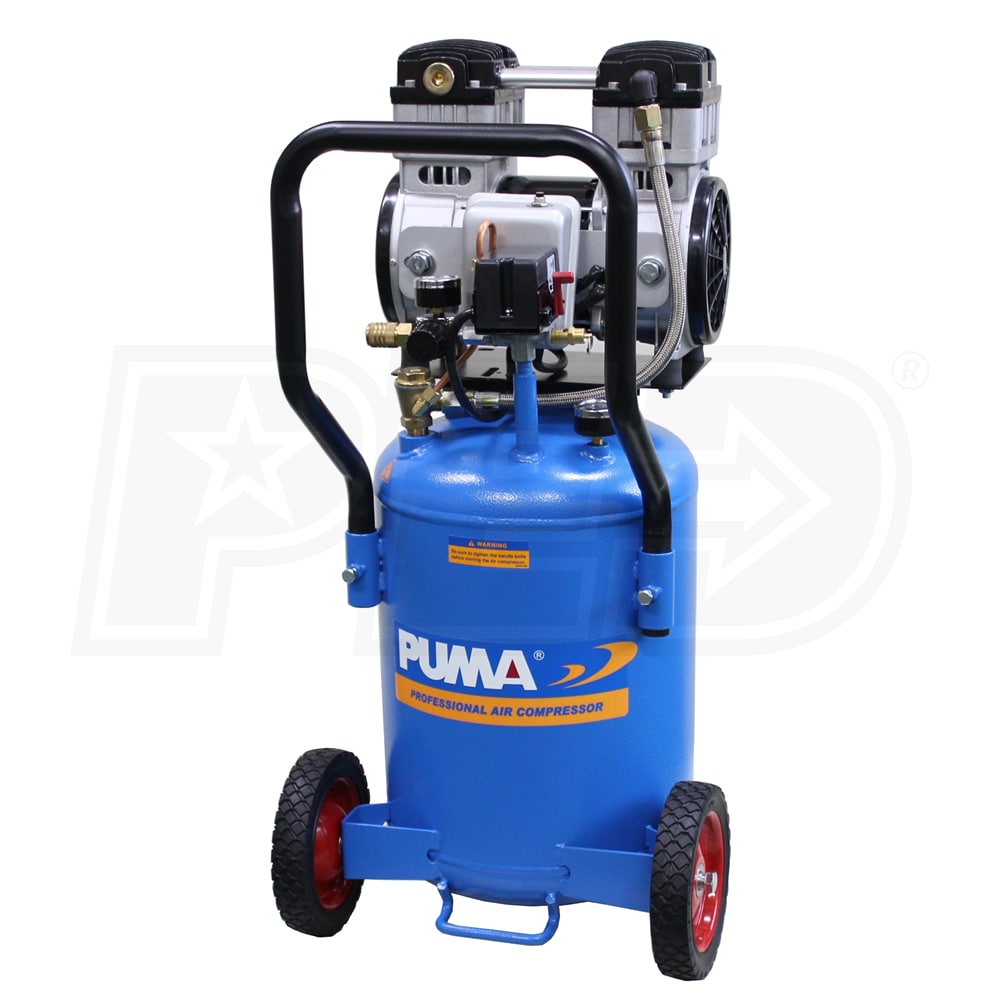

Puma 1.5-HP 8-Gallon Ultra Quiet Oil-Free Air Compressor
