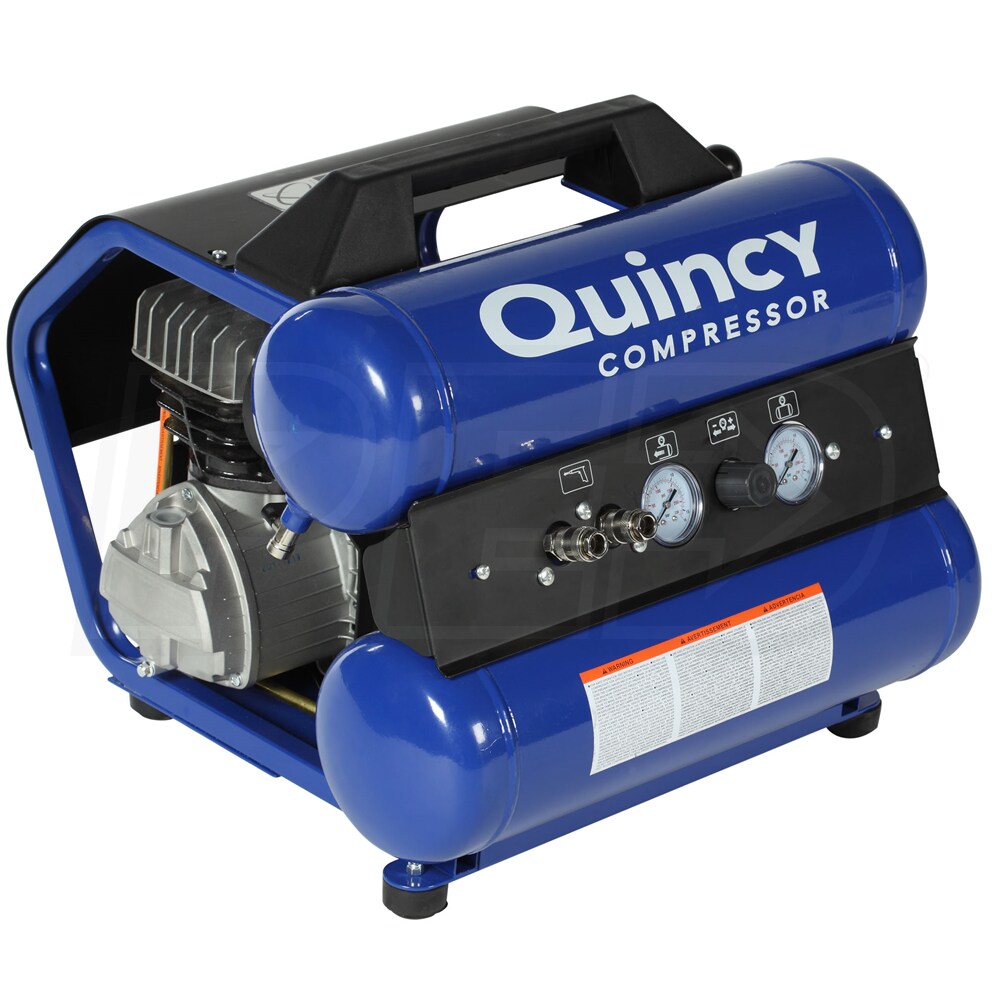

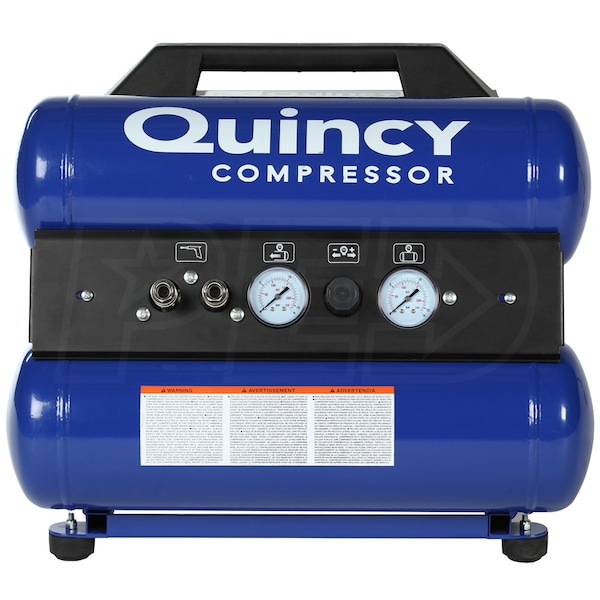

Quincy 1.5-HP 4-Gallon Contractor Twin Stack Air Compressor
Model: Q1214TS
+
Share This Product
-
Product Description
-
1Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
4
CFM Rated @ 90 PSI
Tank Size
4
Gallons
Grade
Contractor
CFM
4 CFM Rated @ 90 PSI
Tank Size
4 Gallons
Features
Features
- Rugged 115-Volt Quincy Air Compressor
- Ready for plug-and-play tool functionality
- Draws only 15 amps, works on most household 115V outlets
- 1.5-HP Direct Drive 4-Pole Motor
- 50% duty cycle; capable of 100 % duty cycle
- Low 1725 RPM reduces wear and tear on internal components
- Contractor Grade Single Stage Pump
- Delivers 4 CFM @ 90 PSI; 135 maximum pressure
- 10,000-hour pump life provides peace of mind for your investment
- 4-Gallon Twin Stack
- Easy to read large tank pressure gauges for accurate readings
- Individual tank drains offer quick & thorough tank draining prevents rust
- Top-Mounted Control Panel
- Dual gauges to monitor tool & tank pressure at a glance
- Two 1/4" air hose quick connectors for fast tool changes
- Built-In Regulator With Gauge
- Safety relief valve protects you in case of overload
- 1-Year Manufacturer Warranty
- Warrants compressor to be free from defects in materials and workmanship
Specifications
Engine
HP
1.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
86
Magnetic Starter
No
Amp Draw
15
Recommended Breaker
15 Amp Breaker
Pump
CFM
4
CFM Rated @
90 PSI
CFM @ 40 PSI
4.4
Pump Material
Aluminum
Max PSI
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
72 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
20 Inches
Product Height
18 Inches
Power Type
Electric
UPC
646223302585
Grade

Style

CFM
4
CFM Rated @ 90 PSI
Tank Size
4
Gallons
Grade
Contractor
CFM
4 CFM Rated @ 90 PSI
Tank Size
4 Gallons
Features
Features
- Rugged 115-Volt Quincy Air Compressor
- Ready for plug-and-play tool functionality
- Draws only 15 amps, works on most household 115V outlets
- 1.5-HP Direct Drive 4-Pole Motor
- 50% duty cycle; capable of 100 % duty cycle
- Low 1725 RPM reduces wear and tear on internal components
- Contractor Grade Single Stage Pump
- Delivers 4 CFM @ 90 PSI; 135 maximum pressure
- 10,000-hour pump life provides peace of mind for your investment
- 4-Gallon Twin Stack
- Easy to read large tank pressure gauges for accurate readings
- Individual tank drains offer quick & thorough tank draining prevents rust
- Top-Mounted Control Panel
- Dual gauges to monitor tool & tank pressure at a glance
- Two 1/4" air hose quick connectors for fast tool changes
- Built-In Regulator With Gauge
- Safety relief valve protects you in case of overload
- 1-Year Manufacturer Warranty
- Warrants compressor to be free from defects in materials and workmanship
Specifications
Engine
HP
1.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
86
Magnetic Starter
No
Amp Draw
15
Recommended Breaker
15 Amp Breaker
Pump
CFM
4
CFM Rated @
90 PSI
CFM @ 40 PSI
4.4
Pump Material
Aluminum
Max PSI
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
72 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
20 Inches
Product Height
18 Inches
Power Type
Electric
UPC
646223302585
Product Specs
+−
Specifications
Engine
HP
1.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
86
Magnetic Starter
No
Amp Draw
15
Recommended Breaker
15 Amp Breaker
Pump
CFM
4
CFM Rated @
90 PSI
CFM @ 40 PSI
4.4
Pump Material
Aluminum
Max PSI
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
72 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
20 Inches
Product Height
18 Inches
Power Type
Electric
UPC
646223302585
Product Q&A
(2)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
The listing says "2-Gallon," yet the specs show 4 gallons. Can you confirm which is right?
BBro
from Washington
March 10, 2019
Answer
It is a 4-gallon compressor. Each tank is 2 gallons.
Was this answer helpful?
Yes

0
No

0
+−
Can this compressor run at 100% duty cycle all the time?
Craig
from Oklahoma
March 04, 2019
Answer
If you run this compressor under 100 PSI, then it can run continuously at 100% duty cycle.
Was this answer helpful?
Yes

2
No

0
