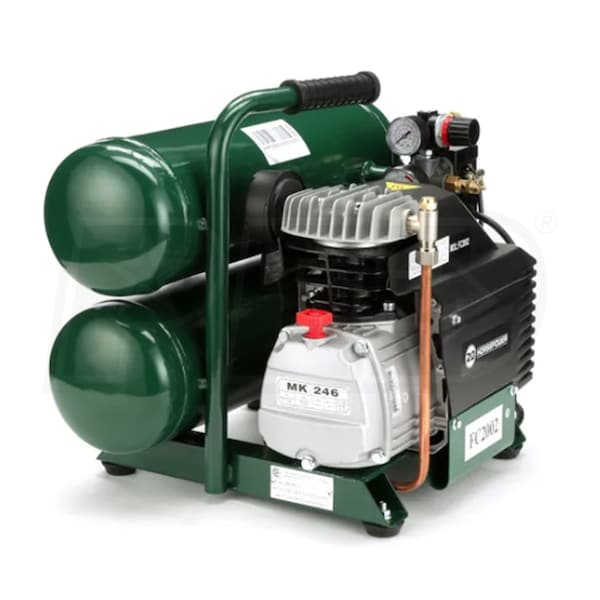

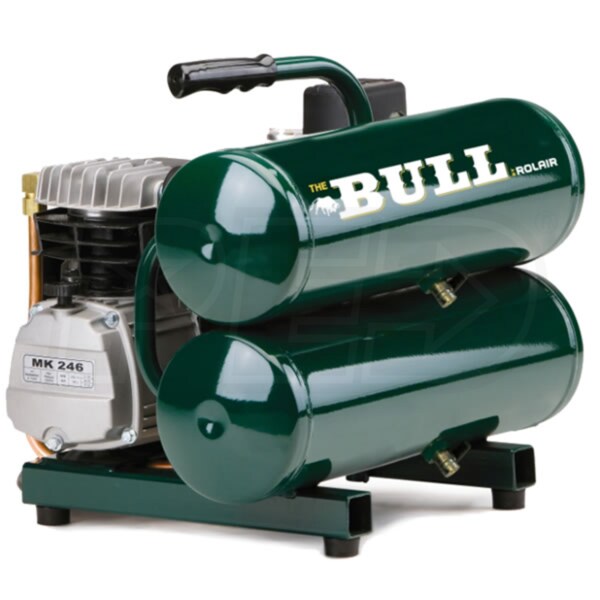

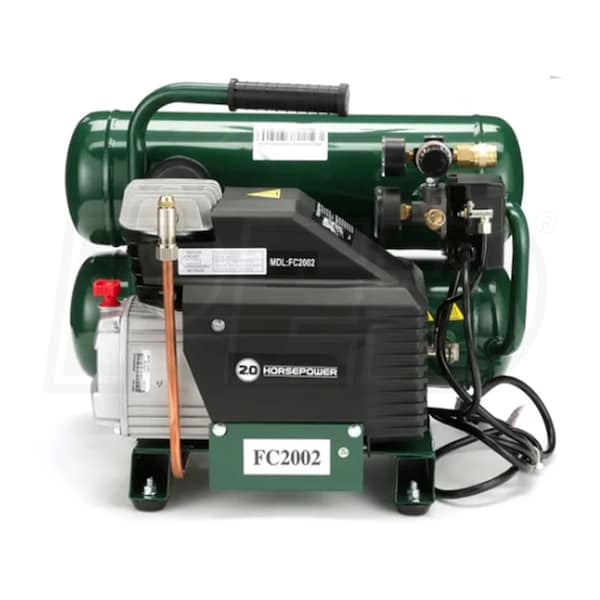

Rolair ( The Bull ) 2-HP 4.3-Gallon Contractor Twin Stack Air Compressor
Rolair ( The Bull ) 2-HP 4.3-Gallon Contractor Twin Stack Air Compressor
+
Share This Product
-
Product Description
-
108Reviews
-
4Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
4.1
CFM Rated @ 90 PSI
Tank Size
4
Gallons
Grade
Contractor
CFM
4.1 CFM Rated @ 90 PSI
Tank Size
4 Gallons
Features
Features
- 2 HP 3400 RPM Motor
- Heavy duty, industrial grade 115V motor stands up to frequent use
- Ball bearings provide greater durability
- Contractor-Grade Single Stage Pump
- Durable stainless reed valves & cast iron cylinder last longer
- Ball bearings, filter/silencer, & splash lube run smooth & quiet
- Overload Protected With Manual Reset
- Protects the air compressor, lets you get back to work quickly
- Portable & Powerful 95-125 PSI Operating Pressure
- Puts out 4.1 CFM @ 90 PSI
- Easy to transport at 62 pounds
- Built-In Regulator With Gauge
- Lets you adjust the air line pressure accurately
- Safety relief valve protects you in case of overload
- Factory Tested 4.3 Gallon Air Tank
- 12 oz. crankcase is pre-filled with oil; arrives ready to work
- 1/4" air outlet; coupler not included
- Continuous Duty Cycle
- Handles the demands of a 100% duty cycle
- Ball valve drain for easy maintenance
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Engine
HP
2
Pump
CFM
4.1
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
62 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
15 Inches
Product Height
17 Inches
Power Type
Electric
UPC
662865416510
Grade
Style
CFM
4.1
CFM Rated @ 90 PSI
Tank Size
4
Gallons
Grade
Contractor
CFM
4.1 CFM Rated @ 90 PSI
Tank Size
4 Gallons
Features
Features
- 2 HP 3400 RPM Motor
- Heavy duty, industrial grade 115V motor stands up to frequent use
- Ball bearings provide greater durability
- Contractor-Grade Single Stage Pump
- Durable stainless reed valves & cast iron cylinder last longer
- Ball bearings, filter/silencer, & splash lube run smooth & quiet
- Overload Protected With Manual Reset
- Protects the air compressor, lets you get back to work quickly
- Portable & Powerful 95-125 PSI Operating Pressure
- Puts out 4.1 CFM @ 90 PSI
- Easy to transport at 62 pounds
- Built-In Regulator With Gauge
- Lets you adjust the air line pressure accurately
- Safety relief valve protects you in case of overload
- Factory Tested 4.3 Gallon Air Tank
- 12 oz. crankcase is pre-filled with oil; arrives ready to work
- 1/4" air outlet; coupler not included
- Continuous Duty Cycle
- Handles the demands of a 100% duty cycle
- Ball valve drain for easy maintenance
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Engine
HP
2
Pump
CFM
4.1
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
62 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
15 Inches
Product Height
17 Inches
Power Type
Electric
UPC
662865416510
Product Specs
+−
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Engine
HP
2
Pump
CFM
4.1
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
62 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
15 Inches
Product Height
17 Inches
Power Type
Electric
UPC
662865416510
Product Q&A
(4)
+−
Search Product Q&A's
Answered by Gabrielle, the Air Compressor Expert
+−
What oil is recommended for this compressor?
Richard P.
from Texas
May 09, 2018
Answer
You need a non-detergent straight weight. For 0-40 degrees I recommend a 10WT. For 40 degrees and above I recommend a 30WT.
Was this answer helpful?
Yes
1
No
0
+−
Will this compressor run a 3/8" impact gun?
Charles Jenkins
from Florida
April 26, 2016
Answer
An air tool requires air flow to work.
Think of a windmill. A slight breeze lacks the power to turn the blades. However, a hurricane-force wind can generate substantial power.
Some air tools consume more air than others. Nailers and staplers require a puff of air. Sandblasters and sanders need massive gusts.
So, you basically want to know how fast the air comes out of the compressor. The air flow is measured in Cubic Feet Per Minute (CFM). The greater the flow -- the greater the power.
You simply select an air compressor that exceeds the CFM of your most powerful air tool. If the flow isn’t strong enough, the air tool simply won’t perform properly.
We recommend sizing the compressor 1.25-1.5 times the CFM of your tool for continuous operation. If the compressor does not produce enough air volume, CFM, then the pressure will drop.
Reciprocating (Piston) compressors are not designed for continuous or 100% duty cycle. The compressor will cycle off & on if it is sized correctly.
Some air tool manufacturers state a minimum CFM & a much larger working CFM specification. Use the working and/or continuous CFM rating when sizing the air compressor.
Think of a windmill. A slight breeze lacks the power to turn the blades. However, a hurricane-force wind can generate substantial power.
Some air tools consume more air than others. Nailers and staplers require a puff of air. Sandblasters and sanders need massive gusts.
So, you basically want to know how fast the air comes out of the compressor. The air flow is measured in Cubic Feet Per Minute (CFM). The greater the flow -- the greater the power.
You simply select an air compressor that exceeds the CFM of your most powerful air tool. If the flow isn’t strong enough, the air tool simply won’t perform properly.
We recommend sizing the compressor 1.25-1.5 times the CFM of your tool for continuous operation. If the compressor does not produce enough air volume, CFM, then the pressure will drop.
Reciprocating (Piston) compressors are not designed for continuous or 100% duty cycle. The compressor will cycle off & on if it is sized correctly.
Some air tool manufacturers state a minimum CFM & a much larger working CFM specification. Use the working and/or continuous CFM rating when sizing the air compressor.
Was this answer helpful?
Yes
0
No
0
+−
How many amps does it pull?
Michael Alexander
from Indiana
August 16, 2014
Answer
Michael,
The motor for the Rolair (The Bull ) 2-HP 4.3-Gallon Contractor Twin Stack Air Compressor is rated at 14.2 amps.
The motor for the Rolair (The Bull ) 2-HP 4.3-Gallon Contractor Twin Stack Air Compressor is rated at 14.2 amps.
Was this answer helpful?
Yes
0
No
0
+−
Does your comressors work from the 240V (in Europe)? It meens that I would like to buy it for Switzerland...
Igor
from Alaska
April 19, 2014
Answer
All of the equipment we sell is designed for 120V/240V 60 Hz AC power. They are not compatible with the 220V 50 Hz current used in Europe & Africa.
Was this answer helpful?
