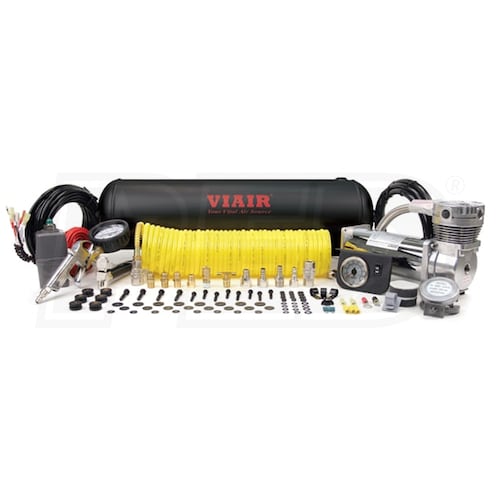

VIAIR 480C Ultra Duty 12-Volt 2.5-Gallon 200-PSI Onboard Air System (100% Duty Cycle @ 100 PSI) Up To 37" Tires

VIAIR 480C Ultra Duty 12-Volt 2.5-Gallon 200-PSI Onboard Air System (100% Duty Cycle @ 100 PSI) Up To 37" Tires
Our Price
Compare Prices
Shipping Info
Model: 20001
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Shop All On Board Compressors
Shop Viair DC Compressors
Discontinued

(as of 10:42 CST - Details)Sales Tax Extra $421.98Visit Site
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Contractor
Style
DC Compressors
CFM
1.13
CFM Rated @ 90 PSI
Tank Size
2.5
Gallons
Grade
Contractor
CFM
1.13 CFM Rated @ 90 PSI
Tank Size
2.5 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Pre-Packaged Compressed Air Solution
  • Includes all components needed to install on your vehicle
  • Constant Duty System - Great For Tires Up To 37 Inches
  • Handy for large RVs, off road vehicles, mobile repair vans, etc.
  • Provides a 100% duty cycle @ 100 PSI (up to 1 hour continuous use)
  • 50% duty cycle at 200 PSI (30 minutes on, 30 minutes off)
  • Can Also Run Pneumatic Tools
  • Supplies the air needed to get the job done; tools must be rated for 1.45 CFM @ 40PSI, or 1.13 CFM @ 90PSI
  • Dependable 12-Volt Permanent Magnetic Motor
  • Designed to work with a low, 23 amp maximum amp draw

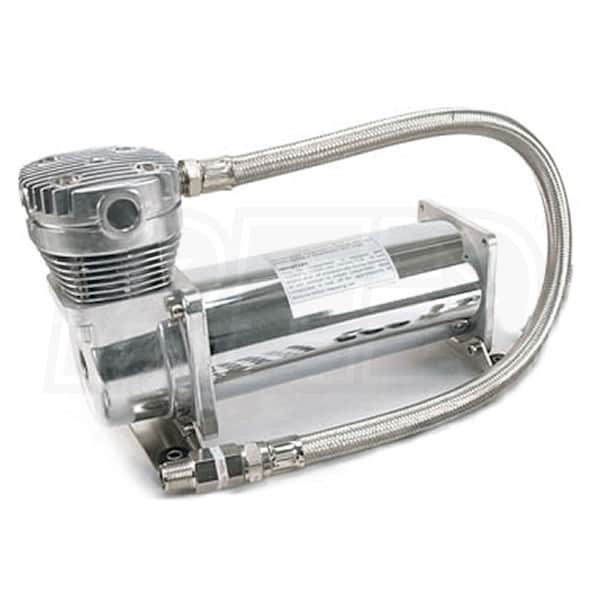

  • 480C Chrome VIAIR Air Compressor With Air Filter
  • Installs with 20 ft.of 12-gauge wire, inline fuse holder & dash panel gauge with ON/OFF switch
  • Automatic Thermal Overload Protector
  • Prevents overheating & damage to the compressor; resets when air compressor cools down
  • 2.5 Gallon 200 PSI VIAIR Air Tank
  • Pressure switch set for 165 PSI on, 200 PSI off; ncludes 30ft. coil hose with quick connects & accessory airline
  • Tire Inflation Gun with 200 PSI Gauge
  • Simplifies tire changes, inflation & repairs
  • Includes 1/8” (F) to 1/4” (M) & 3/8” (F) to 1/4” (M) reducers; 1/4" drain cock, 4” strip of continuous grommet material
  • 1/4” 250 PSI safety valve, (3) 1/4” compression fittings, electrical connections, mounting hardware
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
23
Engine
HP
.25
Pump
CFM
1.13
CFM Rated @
90 PSI
Pump Type
Single-Stage
Max PSI
200 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2.5 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Weight
31.5 Pounds
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114002106
Grade
Contractor
Style
DC Compressors
CFM
1.13
CFM Rated @ 90 PSI
Tank Size
2.5
Gallons
Grade
Contractor
CFM
1.13 CFM Rated @ 90 PSI
Tank Size
2.5 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Pre-Packaged Compressed Air Solution
  • Includes all components needed to install on your vehicle
  • Constant Duty System - Great For Tires Up To 37 Inches
  • Handy for large RVs, off road vehicles, mobile repair vans, etc.
  • Provides a 100% duty cycle @ 100 PSI (up to 1 hour continuous use)
  • 50% duty cycle at 200 PSI (30 minutes on, 30 minutes off)
  • Can Also Run Pneumatic Tools
  • Supplies the air needed to get the job done; tools must be rated for 1.45 CFM @ 40PSI, or 1.13 CFM @ 90PSI
  • Dependable 12-Volt Permanent Magnetic Motor
  • Designed to work with a low, 23 amp maximum amp draw
  • 480C Chrome VIAIR Air Compressor With Air Filter
  • Installs with 20 ft.of 12-gauge wire, inline fuse holder & dash panel gauge with ON/OFF switch
  • Automatic Thermal Overload Protector
  • Prevents overheating & damage to the compressor; resets when air compressor cools down
  • 2.5 Gallon 200 PSI VIAIR Air Tank
  • Pressure switch set for 165 PSI on, 200 PSI off; ncludes 30ft. coil hose with quick connects & accessory airline
  • Tire Inflation Gun with 200 PSI Gauge
  • Simplifies tire changes, inflation & repairs
  • Includes 1/8” (F) to 1/4” (M) & 3/8” (F) to 1/4” (M) reducers; 1/4" drain cock, 4” strip of continuous grommet material
  • 1/4” 250 PSI safety valve, (3) 1/4” compression fittings, electrical connections, mounting hardware
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
23
Engine
HP
.25
Pump
CFM
1.13
CFM Rated @
90 PSI
Pump Type
Single-Stage
Max PSI
200 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2.5 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Weight
31.5 Pounds
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114002106
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
23
Engine
HP
.25
Pump
CFM
1.13
CFM Rated @
90 PSI
Pump Type
Single-Stage
Max PSI
200 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2.5 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Weight
31.5 Pounds
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114002106
