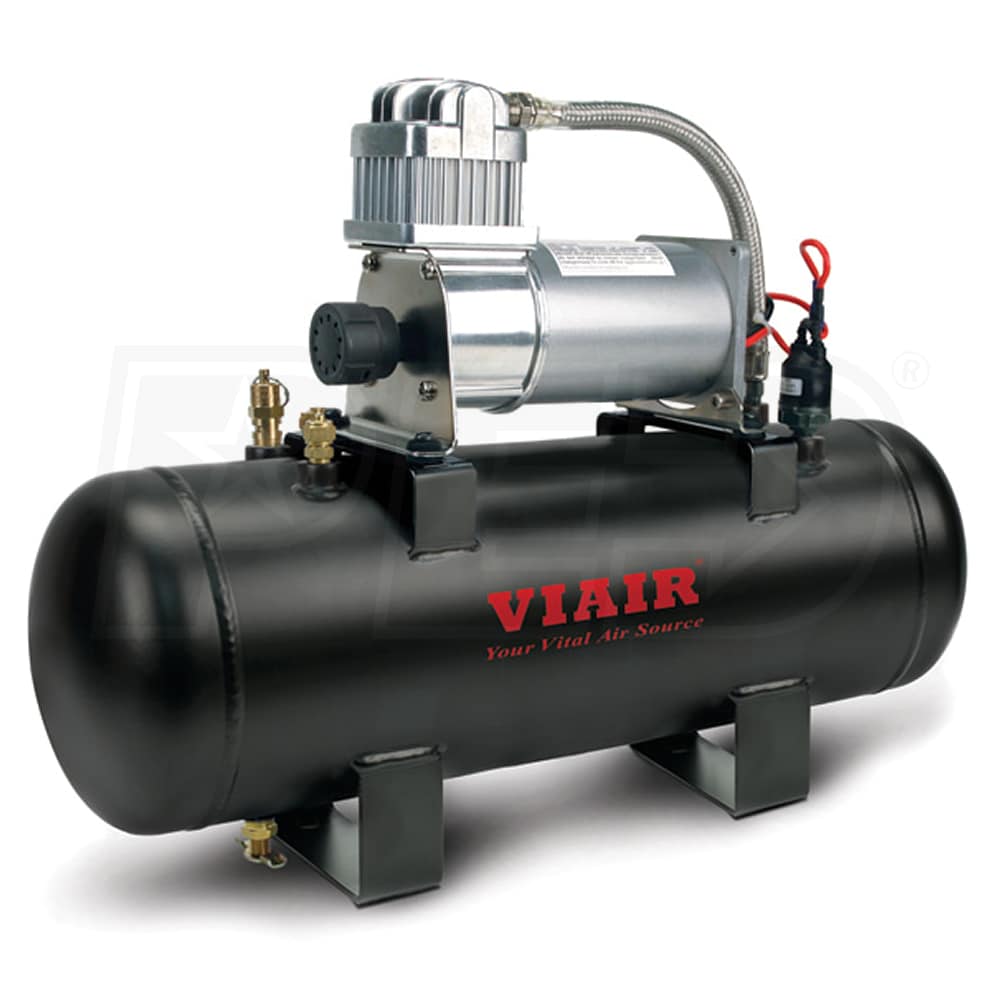

VIAIR 280C 12-Volt 2-Gallon 150-PSI High-Flow Air Source Kit (30% Duty Cycle @ 100 PSI)

VIAIR 280C 12-Volt 2-Gallon 150-PSI High-Flow Air Source Kit (30% Duty Cycle @ 100 PSI)
Our Price
Compare Prices
Shipping Info
Model: 20005
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Shop All On Board Compressors
Shop Viair DC Compressors
Discontinued

(as of 10:42 CST - Details)Sales Tax Extra $162.79Visit Site
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Contractor
Style
DC Compressors
CFM
.76
CFM Rated @ 90 PSI
Tank Size
2
Gallons
Grade
Contractor
CFM
.76 CFM Rated @ 90 PSI
Tank Size
2 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 12-Volt DC 150 PSI Air Source Kit Is Simple To Use
  • Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting
  • Pre-Wired 110 PSI On / 145 PSI Off Pressure Switch
  • A 40-amp relay & appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch
  • 30% At 100 PSI Duty Cycle
  • Allows you to work for 18 minutes on, 42 minutes off; run in a well ventilated area
  • Automatic Thermal Overload Protector
  • Protects the compressor from overheating & damage from excessive use
  • 150 PSI-Rated 2-Gallon Air Tank With 5 Ports

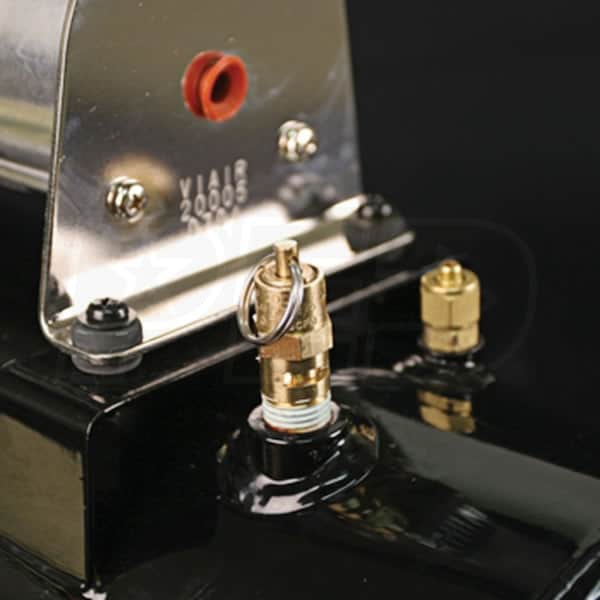

  • 1/4” NPT ASME safety valve set for 175 PSI; 150 PSI max working pressure

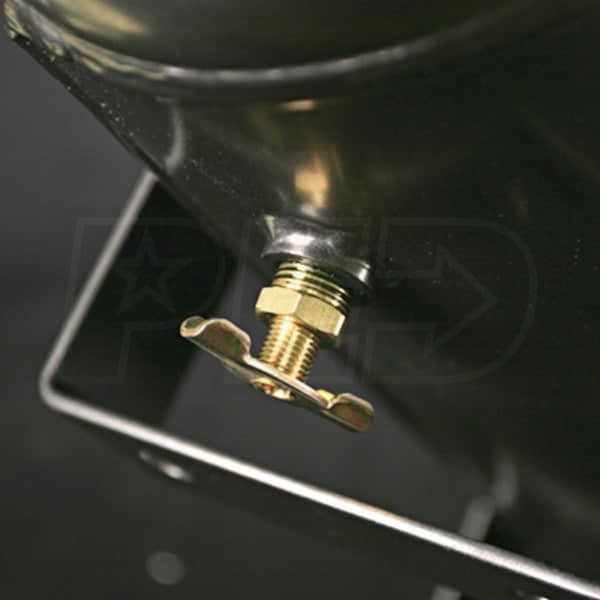

  • 1/4” NPT brass drain cock for easy maintenance
  • 1/2” NPT Port Compression Fitting
  • 3/8” (I.D.) air line connector & leader hose is pre-installed for simple hose hookup
  • Dependable Permanent Magnetic Motor
  • Vehicle engine must be running during operation to maintain performance & prevent amp spikes from harming the system
  • Compact & Versatile
  • Weighs only 19.75 pounds, measures 18.9″L x 5.9″W x 13.7″H to suit a wide variety of applications
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
19
Pump
CFM
.76
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
150 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
25%
Tank
Tank Size
2 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Certification
ASME
Weight
19.75 Pounds
Product Length
18.9 Inches
Product Width
5.9 Inches
Product Height
13.7 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114002014
Grade
Contractor
Style
DC Compressors
CFM
.76
CFM Rated @ 90 PSI
Tank Size
2
Gallons
Grade
Contractor
CFM
.76 CFM Rated @ 90 PSI
Tank Size
2 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 12-Volt DC 150 PSI Air Source Kit Is Simple To Use
  • Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting
  • Pre-Wired 110 PSI On / 145 PSI Off Pressure Switch
  • A 40-amp relay & appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch
  • 30% At 100 PSI Duty Cycle
  • Allows you to work for 18 minutes on, 42 minutes off; run in a well ventilated area
  • Automatic Thermal Overload Protector
  • Protects the compressor from overheating & damage from excessive use
  • 150 PSI-Rated 2-Gallon Air Tank With 5 Ports
  • 1/4” NPT ASME safety valve set for 175 PSI; 150 PSI max working pressure
  • 1/4” NPT brass drain cock for easy maintenance
  • 1/2” NPT Port Compression Fitting
  • 3/8” (I.D.) air line connector & leader hose is pre-installed for simple hose hookup
  • Dependable Permanent Magnetic Motor
  • Vehicle engine must be running during operation to maintain performance & prevent amp spikes from harming the system
  • Compact & Versatile
  • Weighs only 19.75 pounds, measures 18.9″L x 5.9″W x 13.7″H to suit a wide variety of applications
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
19
Pump
CFM
.76
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
150 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
25%
Tank
Tank Size
2 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Certification
ASME
Weight
19.75 Pounds
Product Length
18.9 Inches
Product Width
5.9 Inches
Product Height
13.7 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114002014
Product Specs
+−
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
19
Pump
CFM
.76
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
150 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
25%
Tank
Tank Size
2 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Certification
ASME
Weight
19.75 Pounds
Product Length
18.9 Inches
Product Width
5.9 Inches
Product Height
13.7 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114002014
