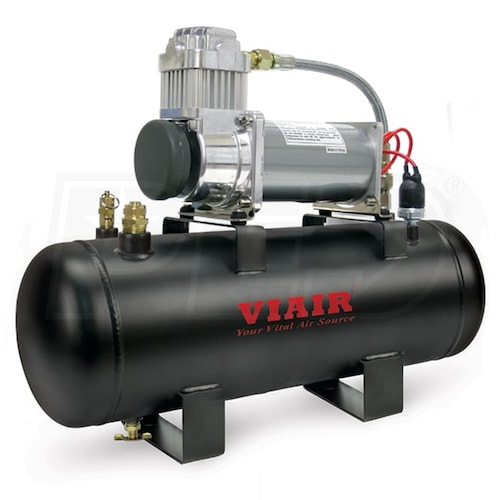

VIAIR 380C 12-Volt 2-Gallon 200-PSI Fast-Fill Air Source Kit (100% Duty Cycle @ 100 PSI)
Model: 20007
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
.88
CFM Rated @ 90 PSI
Tank Size
2
Gallons
Grade
Contractor
CFM
.88 CFM Rated @ 90 PSI
Tank Size
2 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 12-Volt DC 200 PSI Fast-Fill Air Source Kit Is Simple To Use
- Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting
- Fills 0 to 200 PSI in 5 minutes, 30 seconds (±10 sec); 165 to 200 PSI in 1 minute, 25 seconds (±5 sec)

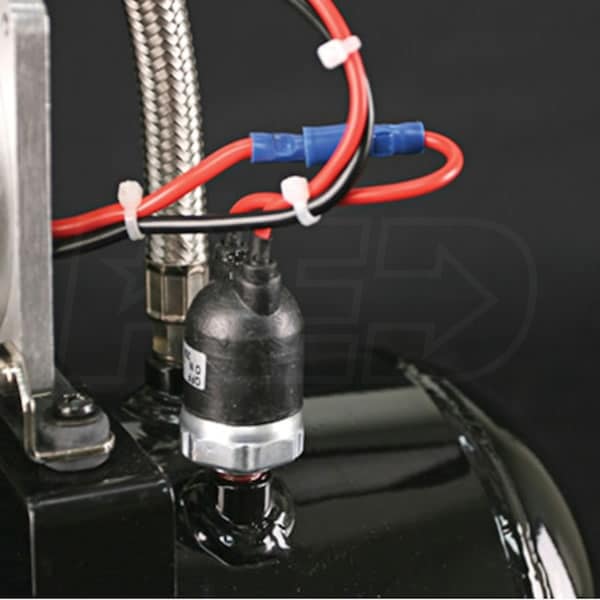

- Pre-Wired 165 PSI On / 200 PSI Off Pressure Switch
- A 40-amp relay & appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch
- 100% At 100 PSI Duty Cycle (55% At 200 PSI)
- 1 hour run-time at 100 PSI; 30 minutes on, 30 minutes off at 200 PSI; run in a well ventilated area
- Automatic Thermal Overload Protector
- Protects the compressor from overheating & damage from excessive use
- 200 PSI-Rated 1.5 Gallon Air Tank With 5 Ports

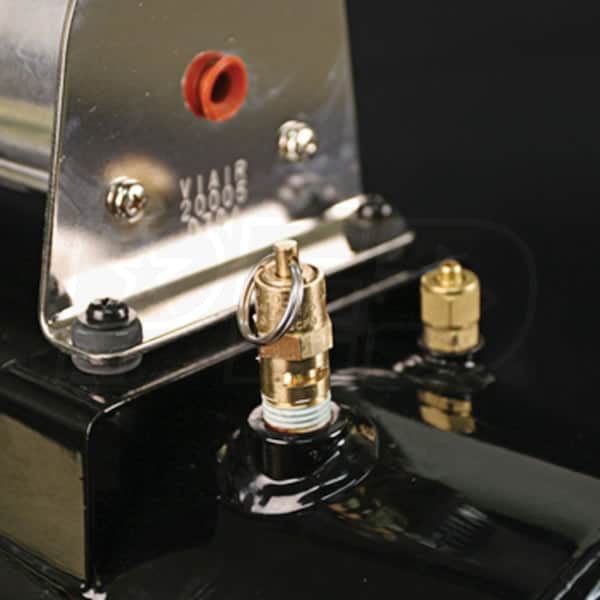

- 1/4” NPT ASME safety valve set for 250 PSI; 200 PSI max working pressure

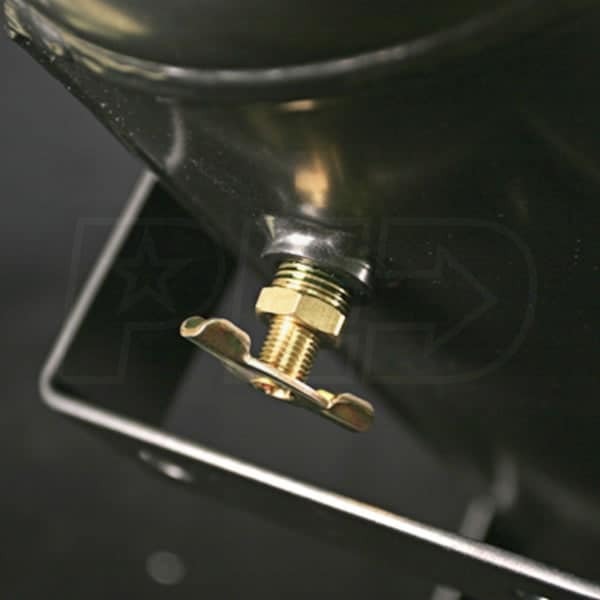

- 1/4” NPT brass drain cock for easy maintenance
- 1/2” NPT Port Compression Fitting
- 3/8” (I.D.) air line connector & leader hose is pre-installed for simple hose hookup
- Dependable Permanent Magnetic Motor
- Vehicle engine must be running during operation to maintain performance & prevent amp spikes from harming the system
- Compact & Versatile
- Weighs only 21.05 pounds, measures 19″L x 5.9″W x 14.2″H to suit a wide variety of applications
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
23
Pump
CFM
.88
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Weight
21.05 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
19 Inches
Product Width
5.9 Inches
Product Height
14.2 Inches
Power Type
Electric
UPC
818114003073
