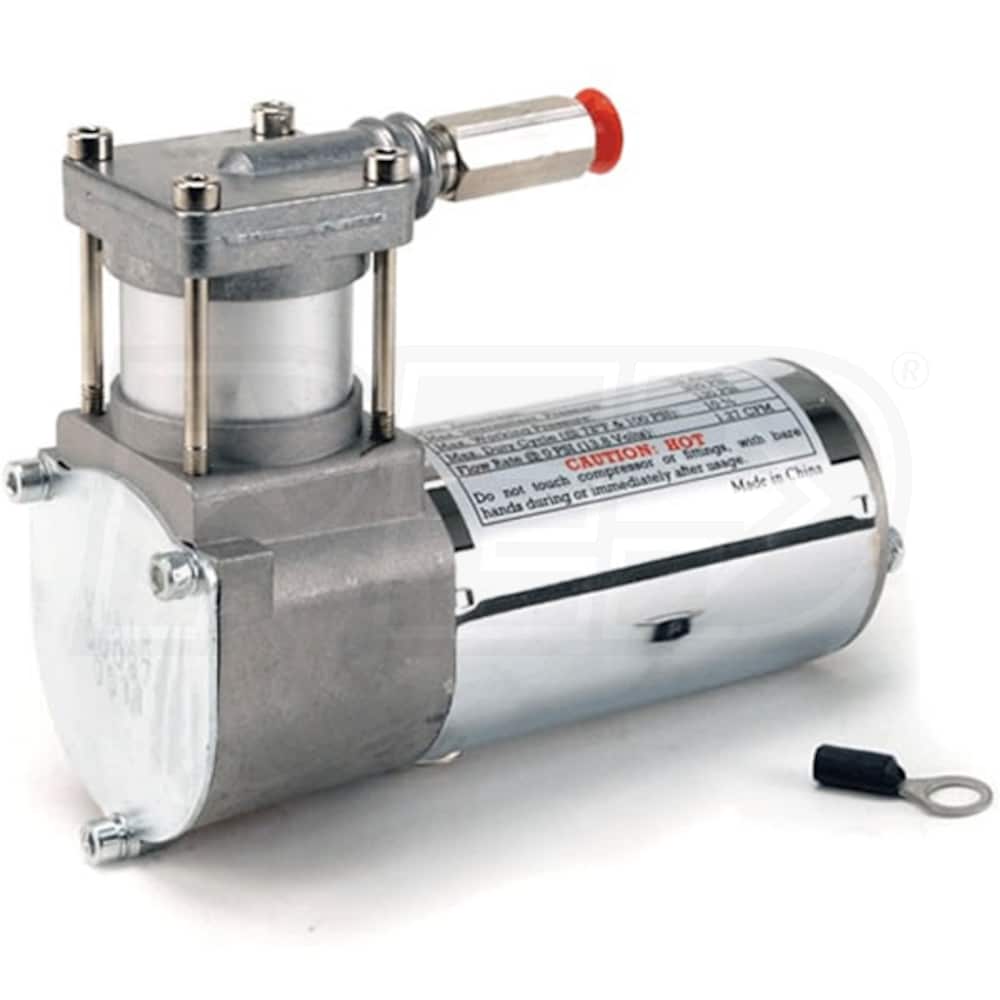

VIAIR 97C 24-Volt 130-PSI Air Compressor Kit (10% Duty Cycle @ 100 PSI) w/ External Check Valve, No Mount Bracket

Model:

02497

Write a Review
$100.95
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
VIAIR 97C 24-Volt 130-PSI Air Compressor Kit (10% Duty Cycle @ 100 PSI) w/ External Check Valve, No Mount Bracket
VIAIR 97C 24-Volt 130-PSI Air Compressor Kit (10% Duty Cycle @ 100 PSI) w/ External Check Valve, No Mount Bracket
Model: 02497
$100.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

.56

Tank Size

0

  • Dependable 24-Volt Permanent Magnetic Motor
  • A light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank
  • Check valve is included; use of a pressure switch & 12V relay is recommended
  • 10% At 100 PSI Duty Cycle; 130 PSI Maximum
  • Work for up to 6 minutes on, 54 minutes off per hour
  • 7 amp maximum 24-volt amp draw
  • Quickly & efficiently puts out 1.27 CFM flow at zero PSI head pressure; .56 CFM @ 90 PSI
  • Compact & Versatile
  • Weighs only 2.25 pounds, measures 5.6″L x 2.2″W x 4.4″H
  • Run in a well ventilated area, works best with engine running
  • Recommended torque for 1/8" fittings is 10-11 ft.lbs.
  • Omega Bracket Mounting Hardware & Vibration Isolators Included
  • Use thread sealant for proper installation, teflon tape not recommended
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

02497
specs product image PID-75087
Motor
Voltage
24 Volt DC
Magnetic Starter
Yes
Amp Draw
7
Pump
CFM
.56
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
130 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
10%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
2.25 Pounds
Consumer Warranty
1 Year
Product Length
5.6 Inches
Product Width
2.2 Inches
Product Height
4.4 Inches
Power Type
Electric
UPC
818114009976
Additional Model Numbers

2497, 02497
