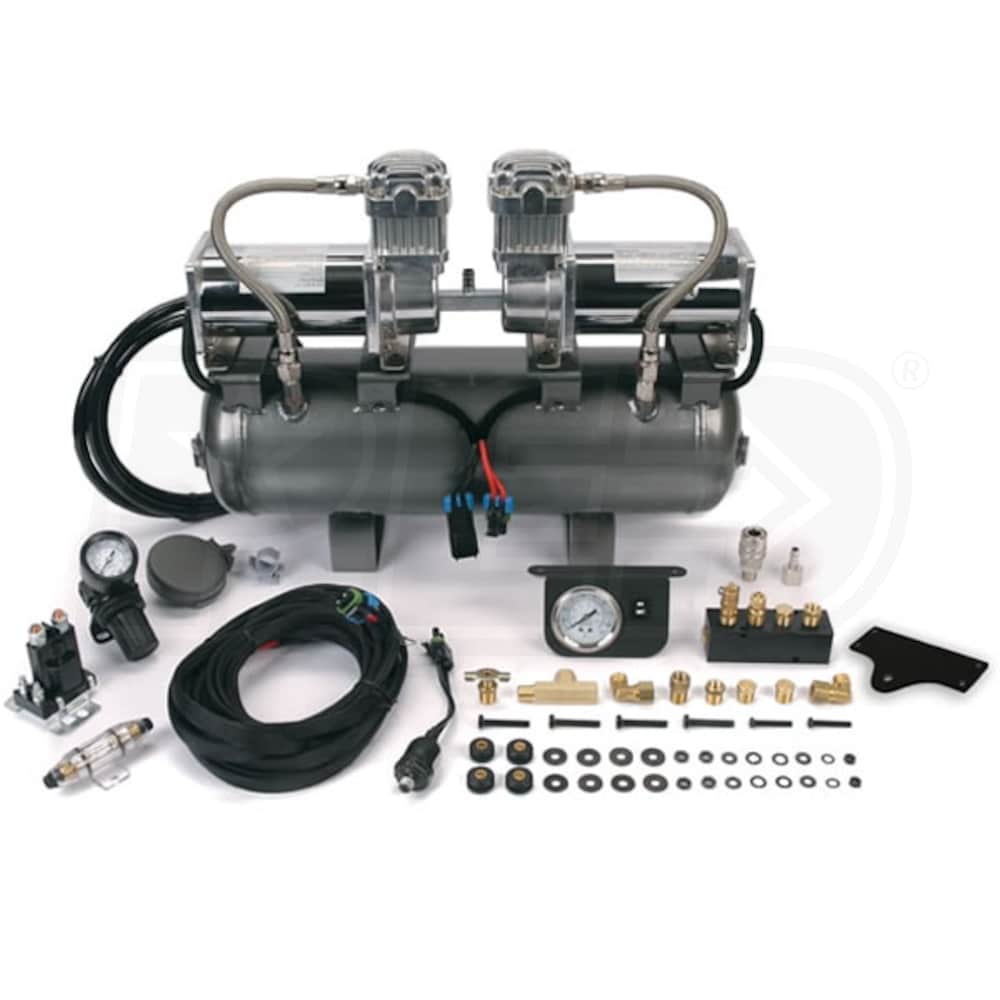

VIAIR 2ON2 Jeep JK 12-Volt 2-Gallon 200-PSI Bolt-On High-Pressure Platform System (100% Duty Cycle @ 100 PSI)
Model: 30005
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
1.61
CFM Rated @ 90 PSI
Tank Size
2
Gallons
Grade
Consumer
CFM
1.61 CFM Rated @ 90 PSI
Tank Size
2 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- High Pressure 12-Volt On-Board System For Up To 40" Tires
- 2 high-output compressors are mounted to a 2-gallon, 200 PSI, 5 port air tank
- All required components are included to complete the installation
- Billet 1/4” NPT x 6-Port Manifold & Mounting Bracket
- Easy-to-install wiring harness & manifold make wiring & plumbing straightforward
- Model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket
- Dependable Permanent Magnetic Motor
- 100% duty cycle at 100 PSI allows a 1-hour run time; sealed pressure switch set for 165-PSI on, 200-PSI off
- Automatic thermal overload protector prevents the compressor from overheating
- Two 380C Air Compressors
- Quickly & efficiently puts out 2.54 CFM flow at zero PSI head pressure; 1.61 CFM @ 90 PSI
- Air Filter Housing with Installed Element
- Two replacement air filter elements are included
- Quality Connections
- Two 1/4” stainless steel braided leader hoses with JIC connectors; 15 feet of DOT air line
- Delphi connectors throughout; also includes two 1/4” BSP adapters for Air Lockers
- Illuminated Dash Panel Air Pressure Gauge
- Marked for 0-160 PSI; easy to read at a glance
- 60-Amp Fuse & Fuse Holder
- 44 amp maximum amp draw; includes an 80-amp relay
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
44
Pump
CFM
1.61
CFM Rated @
90 PSI
Max PSI
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
30 Pounds
Consumer Warranty
1 Year
Product Length
18.5 Inches
Product Width
5.9 Inches
Product Height
13.5 Inches
Power Type
Electric
UPC
818114003158
Grade
Style
CFM
1.61
CFM Rated @ 90 PSI
Tank Size
2
Gallons
Grade
Consumer
CFM
1.61 CFM Rated @ 90 PSI
Tank Size
2 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- High Pressure 12-Volt On-Board System For Up To 40" Tires
- 2 high-output compressors are mounted to a 2-gallon, 200 PSI, 5 port air tank
- All required components are included to complete the installation
- Billet 1/4” NPT x 6-Port Manifold & Mounting Bracket
- Easy-to-install wiring harness & manifold make wiring & plumbing straightforward
- Model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket
- Dependable Permanent Magnetic Motor
- 100% duty cycle at 100 PSI allows a 1-hour run time; sealed pressure switch set for 165-PSI on, 200-PSI off
- Automatic thermal overload protector prevents the compressor from overheating
- Two 380C Air Compressors
- Quickly & efficiently puts out 2.54 CFM flow at zero PSI head pressure; 1.61 CFM @ 90 PSI
- Air Filter Housing with Installed Element
- Two replacement air filter elements are included
- Quality Connections
- Two 1/4” stainless steel braided leader hoses with JIC connectors; 15 feet of DOT air line
- Delphi connectors throughout; also includes two 1/4” BSP adapters for Air Lockers
- Illuminated Dash Panel Air Pressure Gauge
- Marked for 0-160 PSI; easy to read at a glance
- 60-Amp Fuse & Fuse Holder
- 44 amp maximum amp draw; includes an 80-amp relay
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
44
Pump
CFM
1.61
CFM Rated @
90 PSI
Max PSI
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
30 Pounds
Consumer Warranty
1 Year
Product Length
18.5 Inches
Product Width
5.9 Inches
Product Height
13.5 Inches
Power Type
Electric
UPC
818114003158
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
44
Pump
CFM
1.61
CFM Rated @
90 PSI
Max PSI
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
30 Pounds
Consumer Warranty
1 Year
Product Length
18.5 Inches
Product Width
5.9 Inches
Product Height
13.5 Inches
Power Type
Electric
UPC
818114003158
