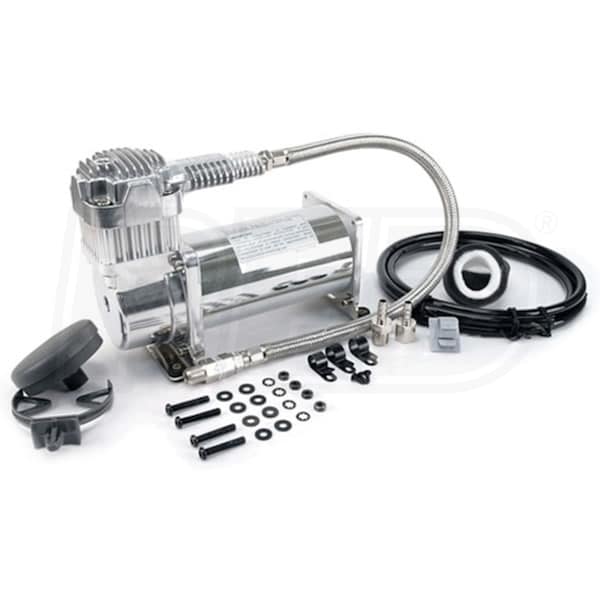

VIAIR 380C 12-Volt 200-PSI Chrome Air Compressor Kit (100% Duty Cycle @ 100 PSI)
Model: 38033
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
.88
CFM Rated @ 90 PSI
Tank Size
0
Gallons
Grade
Consumer
CFM
.88 CFM Rated @ 90 PSI
Tank Size
0 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Dependable Permanent Magnetic Motor
- Horizontal cooling fins and a trapezoidal head design deliver maximum performance; chrome body
- Use of a pressure switch & 12V relay is recommended
- 100% At 100 PSI Duty Cycle
- Allows you to work for up to 1 hour; run in a well ventilated area, works best with engine running
- 23 amp maximum 12-volt amp draw; maximum 5-gallon recommended tank size
- Quickly & efficiently puts out 1.58 CFM flow at zero PSI head pressure; .88 CFM @ 90 PSI
- Automatic Thermal Overload Protector
- Protects the compressor from overheating & damage from excessive use
- 1/4” NPT Stainless Steel Braided Leader Hose
- Includes 1/4" inline check valve and insulated wiring for simple installation
- Remote Mount Air Filter Assembly
- Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
- Installation instructions & air line for remote mount air filter are included
- Compact & Versatile
- Weighs only 8.7 pounds, measures 9″L x 4″W x 6.75″H
- Mounting Hardware & Vibration Isolators Included
- Use thread sealant for proper installation, teflon tape not recommended. Recommended torque is 12-15 ft.lbs.
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Magnetic Starter
Yes
Amp Draw
23
Engine
HP
.25
Pump
CFM
.88
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
8.75 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114003806
Grade

Style

CFM
.88
CFM Rated @ 90 PSI
Tank Size
0
Gallons
Grade
Consumer
CFM
.88 CFM Rated @ 90 PSI
Tank Size
0 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Dependable Permanent Magnetic Motor
- Horizontal cooling fins and a trapezoidal head design deliver maximum performance; chrome body
- Use of a pressure switch & 12V relay is recommended
- 100% At 100 PSI Duty Cycle
- Allows you to work for up to 1 hour; run in a well ventilated area, works best with engine running
- 23 amp maximum 12-volt amp draw; maximum 5-gallon recommended tank size
- Quickly & efficiently puts out 1.58 CFM flow at zero PSI head pressure; .88 CFM @ 90 PSI
- Automatic Thermal Overload Protector
- Protects the compressor from overheating & damage from excessive use
- 1/4” NPT Stainless Steel Braided Leader Hose
- Includes 1/4" inline check valve and insulated wiring for simple installation
- Remote Mount Air Filter Assembly
- Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
- Installation instructions & air line for remote mount air filter are included
- Compact & Versatile
- Weighs only 8.7 pounds, measures 9″L x 4″W x 6.75″H
- Mounting Hardware & Vibration Isolators Included
- Use thread sealant for proper installation, teflon tape not recommended. Recommended torque is 12-15 ft.lbs.
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Magnetic Starter
Yes
Amp Draw
23
Engine
HP
.25
Pump
CFM
.88
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
8.75 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114003806
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Magnetic Starter
Yes
Amp Draw
23
Engine
HP
.25
Pump
CFM
.88
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
8.75 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114003806
