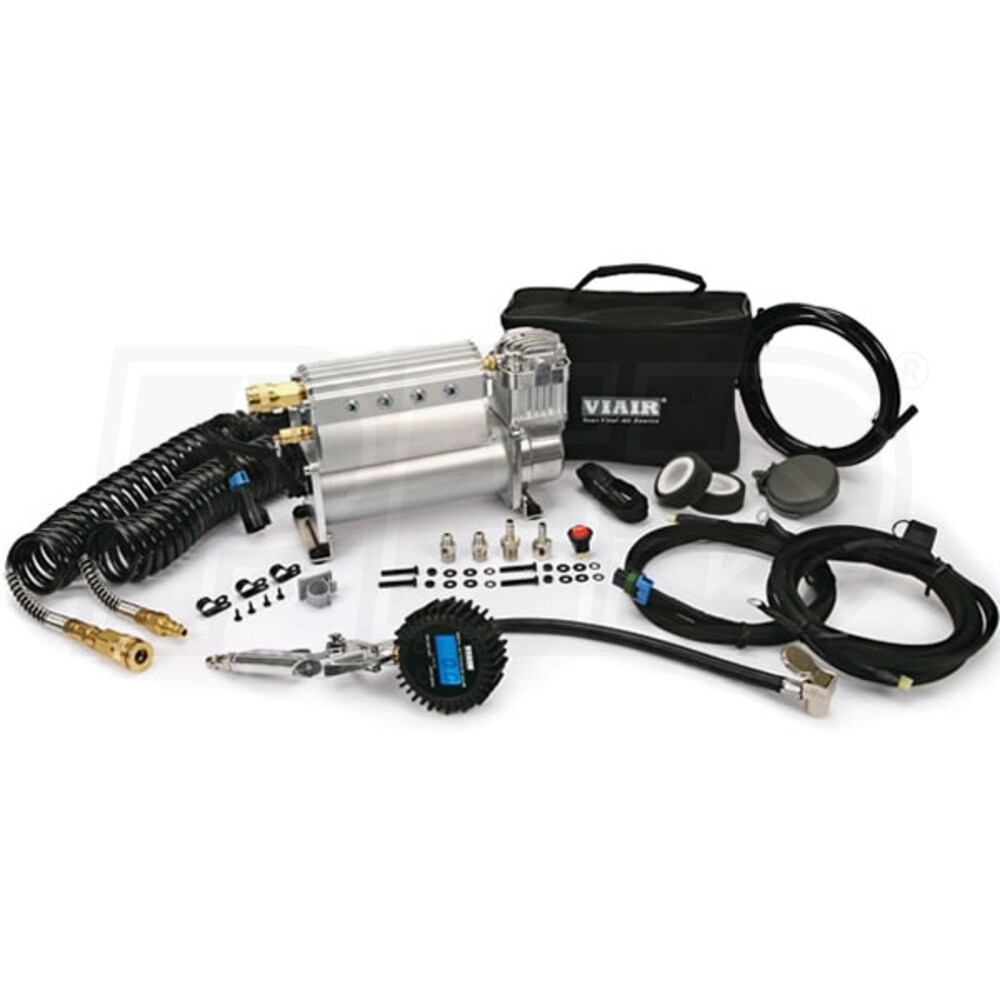

VIAIR Automatic Deployment Air 12-Volt 150-PSI Constant-Duty Universal Mount System w/ Inflation Kit (85/105 PSI Switch - 1.8 CFM) Up To 37" Tires

VIAIR Automatic Deployment Air 12-Volt 150-PSI Constant-Duty Universal Mount System w/ Inflation Kit (85/105 PSI Switch - 1.8 CFM) Up To 37" Tires
Our Price
Compare Prices
Shipping Info
Model: 45055
$445.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$445.99Buy Now
$445.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
DC Compressors
CFM
.97
CFM Rated @ 90 PSI
Grade
Consumer
CFM
.97 CFM Rated @ 90 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Constant-Duty 100% Duty Cycle @ 100 PSI (1 Hour Continuous Use)
  • Tire inflation or air locker actuation is made possible in a very compact space
  • ADA Universal-Mount System Comes Complete
  • Makes installation a plug & play process with a 60-amp fuse holder & 40-amp fuse
  • 1/8” NPT drain cock, 1/4” NPT safety valve, (8) 1/4” NPT hex plugs, (2) 1/4” NPT BSP adapters, 1/4” NPT auto coupler

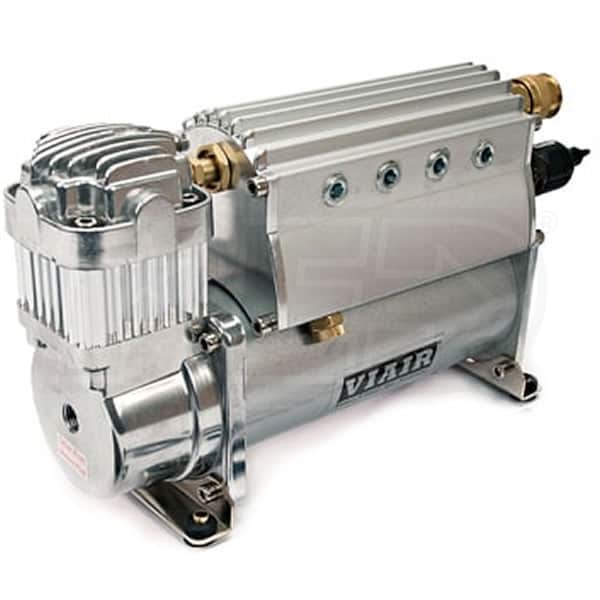

  • 450C 12-Volt Compressor With Toggle Switch
  • Permanent magnetic motor delivers 1.8 CFM at 0 PSI; has a 23-amp maximum draw
  • Automatic thermal overload protector prevents the compressor from overheating
  • 12-Port Extruded Aluminum Air Distribution Tank
  • Provides a compact air locker and tire inflation station for virtually any vehicle
  • Wiring Harness Requires Very Little Install Time
  • 30-amp Delphi connector set, (2) 1/4” ring terminals, 5/16” ring terminal, (3) female spade terminal connectors
  • Onboard 1/4” NPT Sealed Pressure Switch
  • Turns on at 85 PSI, turns off at 105 PSI, will inflate up to 37" tires
  • 30’ Inflation Hose with Automatic Couplers
  • Lets you work in a wide area

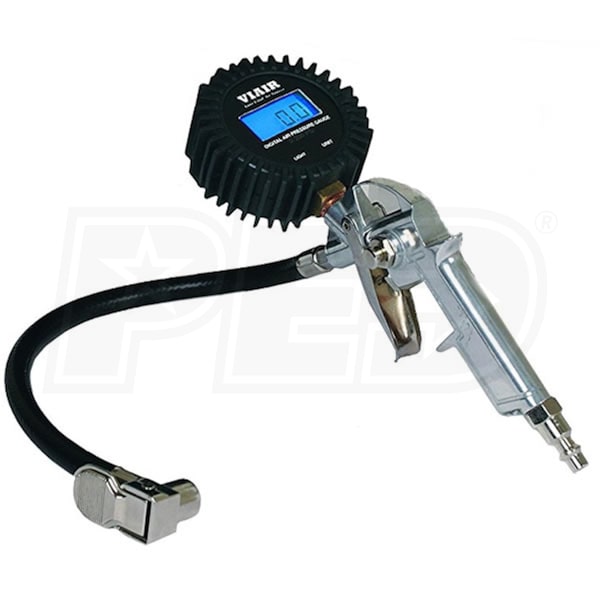

  • Digital Tire Inflation Kit
  • 12-inch hose gets into hard-to-reach areas; easy to read in all light conditions
  • Remote Mount Air Filter
  • Includes air line for remote mount filter, 2 replacement air filter elements, & 2 relocation fittings
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
23
Pump
CFM
.97
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
150 PSI
Tank
Tank Included
Yes
Tank Outlet
1/4 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
12.5 Pounds
Product Length
9.38 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114005558
Grade
Consumer
Style
DC Compressors
CFM
.97
CFM Rated @ 90 PSI
Grade
Consumer
CFM
.97 CFM Rated @ 90 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Constant-Duty 100% Duty Cycle @ 100 PSI (1 Hour Continuous Use)
  • Tire inflation or air locker actuation is made possible in a very compact space
  • ADA Universal-Mount System Comes Complete
  • Makes installation a plug & play process with a 60-amp fuse holder & 40-amp fuse
  • 1/8” NPT drain cock, 1/4” NPT safety valve, (8) 1/4” NPT hex plugs, (2) 1/4” NPT BSP adapters, 1/4” NPT auto coupler
  • 450C 12-Volt Compressor With Toggle Switch
  • Permanent magnetic motor delivers 1.8 CFM at 0 PSI; has a 23-amp maximum draw
  • Automatic thermal overload protector prevents the compressor from overheating
  • 12-Port Extruded Aluminum Air Distribution Tank
  • Provides a compact air locker and tire inflation station for virtually any vehicle
  • Wiring Harness Requires Very Little Install Time
  • 30-amp Delphi connector set, (2) 1/4” ring terminals, 5/16” ring terminal, (3) female spade terminal connectors
  • Onboard 1/4” NPT Sealed Pressure Switch
  • Turns on at 85 PSI, turns off at 105 PSI, will inflate up to 37" tires
  • 30’ Inflation Hose with Automatic Couplers
  • Lets you work in a wide area
  • Digital Tire Inflation Kit
  • 12-inch hose gets into hard-to-reach areas; easy to read in all light conditions
  • Remote Mount Air Filter
  • Includes air line for remote mount filter, 2 replacement air filter elements, & 2 relocation fittings
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
23
Pump
CFM
.97
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
150 PSI
Tank
Tank Included
Yes
Tank Outlet
1/4 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
12.5 Pounds
Product Length
9.38 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114005558
Product Specs
+
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
23
Pump
CFM
.97
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
150 PSI
Tank
Tank Included
Yes
Tank Outlet
1/4 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
12.5 Pounds
Product Length
9.38 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114005558
