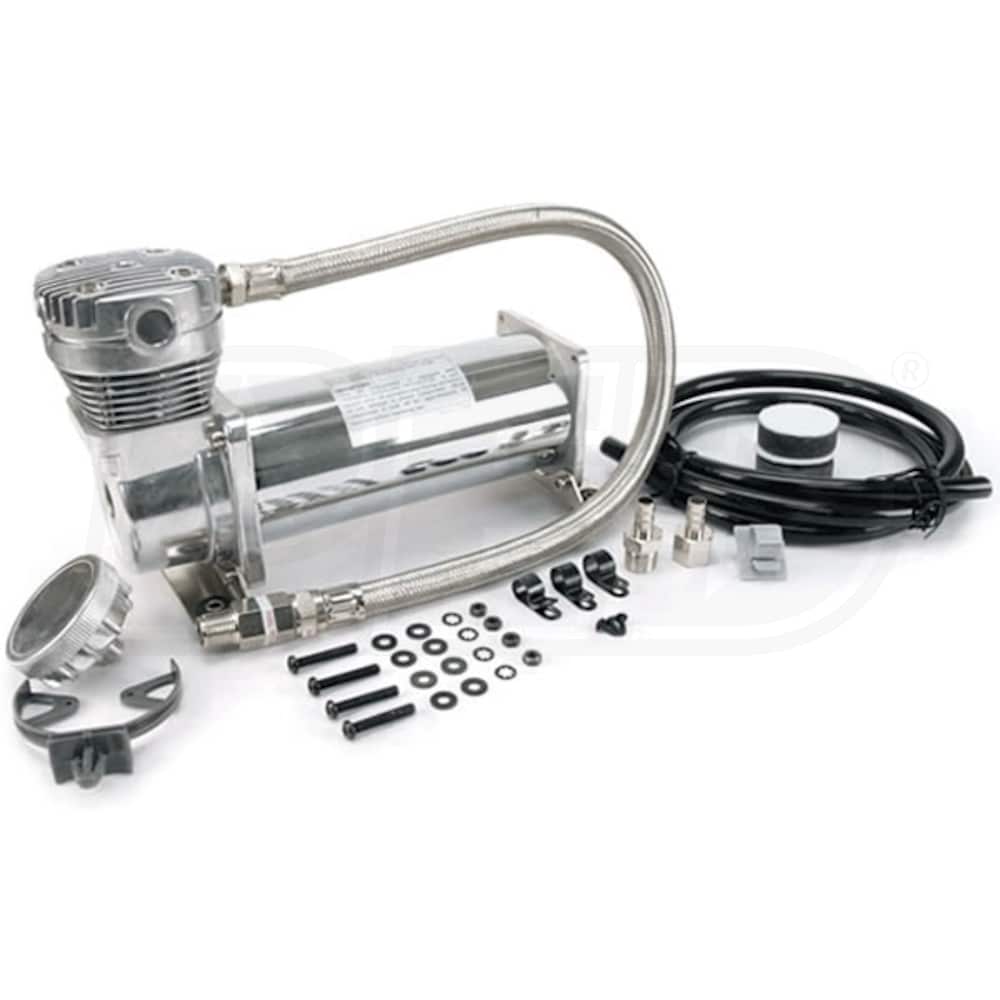

VIAIR 480C 12-Volt 200-PSI Chrome Air Compressor Kit w/ 3/8" Port (100% Duty Cycle @ 100 PSI)

VIAIR 480C 12-Volt 200-PSI Chrome Air Compressor Kit w/ 3/8" Port (100% Duty Cycle @ 100 PSI)
Our Price
Compare Prices
Shipping Info
Model: 48043
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued

(as of 10:42 CST - Details)Sales Tax Extra $221.05Visit Site
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
DC Compressors
CFM
1.13
CFM Rated @ 90 PSI
Grade
Consumer
CFM
1.13 CFM Rated @ 90 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Dependable Permanent Magnetic Motor
  • Horizontal cooling fins and a trapezoidal head design deliver maximum performance; chrome body
  • Use of a pressure switch & 12V relay is recommended
  • 100% At 100 PSI Duty Cycle
  • Allows you to work for up to 1 hour; run in a well ventilated area, works best with engine running
  • 23 amp maximum 12-volt amp draw; maximum 5-gallon recommended tank size
  • Quickly & efficiently puts out 1.86 CFM flow at zero PSI head pressure; 1.13 CFM @ 90 PSI
  • Automatic Thermal Overload Protector
  • Protects the compressor from overheating & damage from excessive use
  • 3/8 NPT Stainless Steel Braided Leader Hose
  • Includes 3/8" inline check valve and insulated wiring for simple installation
  • Remote Mount Air Filter Assembly
  • Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
  • Installation instructions & air line for remote mount air filter are included
  • Compact & Versatile
  • Weighs only 11.5 pounds, measures 10.87″L x 4.2″W x 6.75″H
  • Mounting Hardware & Vibration Isolators Included
  • Use thread sealant for proper installation, teflon tape not recommended. Recommended torque is 12-15 ft.lbs.
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
23
Engine
HP
.25
Pump
CFM
1.13
CFM Rated @
90 PSI
Max PSI
200 PSI
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
3/8 Inch
Accessories
Pressure Gauge
No
Air Filter
Yes
Overview
Weight
11.5 Pounds
Product Length
10.87 Inches
Product Width
4.2 Inches
Product Height
6.75 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114004834
Grade
Consumer
Style
DC Compressors
CFM
1.13
CFM Rated @ 90 PSI
Grade
Consumer
CFM
1.13 CFM Rated @ 90 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Dependable Permanent Magnetic Motor
  • Horizontal cooling fins and a trapezoidal head design deliver maximum performance; chrome body
  • Use of a pressure switch & 12V relay is recommended
  • 100% At 100 PSI Duty Cycle
  • Allows you to work for up to 1 hour; run in a well ventilated area, works best with engine running
  • 23 amp maximum 12-volt amp draw; maximum 5-gallon recommended tank size
  • Quickly & efficiently puts out 1.86 CFM flow at zero PSI head pressure; 1.13 CFM @ 90 PSI
  • Automatic Thermal Overload Protector
  • Protects the compressor from overheating & damage from excessive use
  • 3/8 NPT Stainless Steel Braided Leader Hose
  • Includes 3/8" inline check valve and insulated wiring for simple installation
  • Remote Mount Air Filter Assembly
  • Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
  • Installation instructions & air line for remote mount air filter are included
  • Compact & Versatile
  • Weighs only 11.5 pounds, measures 10.87″L x 4.2″W x 6.75″H
  • Mounting Hardware & Vibration Isolators Included
  • Use thread sealant for proper installation, teflon tape not recommended. Recommended torque is 12-15 ft.lbs.
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
23
Engine
HP
.25
Pump
CFM
1.13
CFM Rated @
90 PSI
Max PSI
200 PSI
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
3/8 Inch
Accessories
Pressure Gauge
No
Air Filter
Yes
Overview
Weight
11.5 Pounds
Product Length
10.87 Inches
Product Width
4.2 Inches
Product Height
6.75 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114004834
Product Specs
+
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
23
Engine
HP
.25
Pump
CFM
1.13
CFM Rated @
90 PSI
Max PSI
200 PSI
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
3/8 Inch
Accessories
Pressure Gauge
No
Air Filter
Yes
Overview
Weight
11.5 Pounds
Product Length
10.87 Inches
Product Width
4.2 Inches
Product Height
6.75 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114004834
