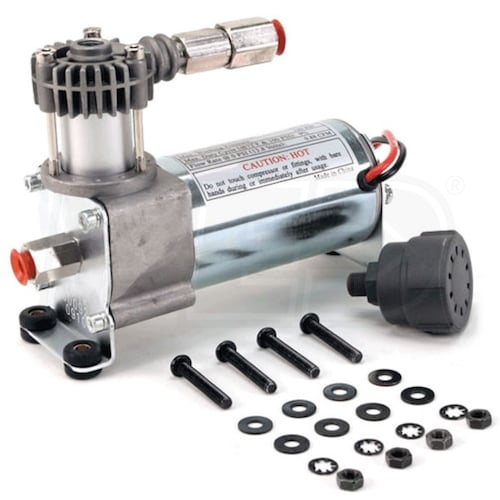

VIAIR 92C 12-Volt 120-PSI Air Compressor Kit (9% Duty Cycle @ 100 PSI) w/ External Check Valve & Intake Filter
VIAIR 92C 12-Volt 120-PSI Air Compressor Kit (9% Duty Cycle @ 100 PSI) w/ External Check Valve & Intake Filter
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
.43
CFM Rated @ 90 PSI
Grade
Consumer
CFM
.43 CFM Rated @ 90 PSI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Dependable 12-Volt Permanent Magnetic Motor
- A light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank
- Check valve is included; use of a pressure switch & 12V relay is recommended
- 9% At 100 PSI Duty Cycle; 120 PSI Maximum
- Work for up to 5 minutes on, 55 minutes off per hour
- 10 amp maximum 12-volt amp draw
- Quickly & efficiently puts out 1.53 CFM flow at zero PSI head pressure; .43 CFM @ 90 PSI
- Compact & Versatile
- Weighs only 2.45 pounds, measures 7.6″L x 2.0″W x 4.6″H
- Run in a well ventilated area, works best with engine running
- Recommended torque for 1/8" fittings is 10-11 ft.lbs.
- Omega Bracket Mounting Hardware & Vibration Isolators Included
- Use thread sealant for proper installation, teflon tape not recommended
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
10
Pump
CFM
.43
CFM Rated @
90 PSI
Max PSI
120 PSI
Oil Type
Oil Free
Duty Cycle
10%
Tank
Tank Included
No
Accessories
Pressure Gauge
No
Air Filter
Yes
Overview
Weight
2.45 Pounds
Consumer Warranty
1 Year
Product Length
7.6 Inches
Product Width
2 Inches
Product Height
4.6 Inches
Power Type
Electric
UPC
818114000928
Additional Model Numbers
92, 00092
Grade
Style
CFM
.43
CFM Rated @ 90 PSI
Grade
Consumer
CFM
.43 CFM Rated @ 90 PSI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Dependable 12-Volt Permanent Magnetic Motor
- A light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank
- Check valve is included; use of a pressure switch & 12V relay is recommended
- 9% At 100 PSI Duty Cycle; 120 PSI Maximum
- Work for up to 5 minutes on, 55 minutes off per hour
- 10 amp maximum 12-volt amp draw
- Quickly & efficiently puts out 1.53 CFM flow at zero PSI head pressure; .43 CFM @ 90 PSI
- Compact & Versatile
- Weighs only 2.45 pounds, measures 7.6″L x 2.0″W x 4.6″H
- Run in a well ventilated area, works best with engine running
- Recommended torque for 1/8" fittings is 10-11 ft.lbs.
- Omega Bracket Mounting Hardware & Vibration Isolators Included
- Use thread sealant for proper installation, teflon tape not recommended
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
10
Pump
CFM
.43
CFM Rated @
90 PSI
Max PSI
120 PSI
Oil Type
Oil Free
Duty Cycle
10%
Tank
Tank Included
No
Accessories
Pressure Gauge
No
Air Filter
Yes
Overview
Weight
2.45 Pounds
Consumer Warranty
1 Year
Product Length
7.6 Inches
Product Width
2 Inches
Product Height
4.6 Inches
Power Type
Electric
UPC
818114000928
Additional Model Numbers
92, 00092
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Amp Draw
10
Pump
CFM
.43
CFM Rated @
90 PSI
Max PSI
120 PSI
Oil Type
Oil Free
Duty Cycle
10%
Tank
Tank Included
No
Accessories
Pressure Gauge
No
Air Filter
Yes
Overview
Weight
2.45 Pounds
Consumer Warranty
1 Year
Product Length
7.6 Inches
Product Width
2 Inches
Product Height
4.6 Inches
Power Type
Electric
UPC
818114000928
Additional Model Numbers
92, 00092
