Quincy 2-HP 24-Gallon (Belt Drive) Portable Air Compressor
Model: Q12124VPQ
+
Share This Product
-
Product Description
-
4Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
7.4
CFM Rated @ 100 PSI
Tank Size
24
Gallons
Grade
Consumer
CFM
7.4 CFM Rated @ 100 PSI
Tank Size
24 Gallons
Features
Features
- Perfect For Light Commercial Or Do It Yourself Applications
- Strong & durable single stage compressor that last
- Perfect for larger projects, spray painting, HVLP spray gun and nail guns
- Cast Iron Cylinder, Valve Plate & Crankshaft
- Valve plate design provides efficiency & maximum strength
- Assures smooth, trouble-free operation with 10,000+ hour pump rating
- Aluminum Head & Special Fin Design
- Helps dissipate heat; keeps compressor running cool
- 100% factory tested at full pressure
- 8.3 CFM @ 40 PSI; 7.4 CFM @ 100 PSI
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- 24-Gallon ASME Vertical Tank
- Compact design with sturdy tires for easy portability
- Easy-access manual drain simplifies routine maintenance
- Start-Stop Pressure Switch & Pressure Regulator
- Automatically starts the compressor when system pressure drops
- 1/4" pressure regulator lets you maintain constant air pressure
- 1 Year Factory Warranty
- Covers defect in materials & workmanship
- Quincy "No Bull" Extended Warranty Available
- Must include EWK-1 Maintenance Kit at time of purchase
- Must register online; see Warranty PDF under Specs tab for info
- Quincy Part #: 1129740226 Quincy Model #: Q12124VPQ
Specifications
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
19
Recommended Breaker
30 Amp Breaker
Engine
HP
2
Pump
CFM
7.4
CFM Rated @
100 PSI
CFM @ 40 PSI
8.3
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
148 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.6 Inches
Product Width
22 Inches
Product Height
47.8 Inches
Power Type
Electric
UPC
040232369414
Grade
Style
CFM
7.4
CFM Rated @ 100 PSI
Tank Size
24
Gallons
Grade
Consumer
CFM
7.4 CFM Rated @ 100 PSI
Tank Size
24 Gallons
Features
Features
- Perfect For Light Commercial Or Do It Yourself Applications
- Strong & durable single stage compressor that last
- Perfect for larger projects, spray painting, HVLP spray gun and nail guns
- Cast Iron Cylinder, Valve Plate & Crankshaft
- Valve plate design provides efficiency & maximum strength
- Assures smooth, trouble-free operation with 10,000+ hour pump rating
- Aluminum Head & Special Fin Design
- Helps dissipate heat; keeps compressor running cool
- 100% factory tested at full pressure
- 8.3 CFM @ 40 PSI; 7.4 CFM @ 100 PSI
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- 24-Gallon ASME Vertical Tank
- Compact design with sturdy tires for easy portability
- Easy-access manual drain simplifies routine maintenance
- Start-Stop Pressure Switch & Pressure Regulator
- Automatically starts the compressor when system pressure drops
- 1/4" pressure regulator lets you maintain constant air pressure
- 1 Year Factory Warranty
- Covers defect in materials & workmanship
- Quincy "No Bull" Extended Warranty Available
- Must include EWK-1 Maintenance Kit at time of purchase
- Must register online; see Warranty PDF under Specs tab for info
- Quincy Part #: 1129740226 Quincy Model #: Q12124VPQ
Specifications
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
19
Recommended Breaker
30 Amp Breaker
Engine
HP
2
Pump
CFM
7.4
CFM Rated @
100 PSI
CFM @ 40 PSI
8.3
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
148 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.6 Inches
Product Width
22 Inches
Product Height
47.8 Inches
Power Type
Electric
UPC
040232369414
Product Specs
+−
Specifications
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
19
Recommended Breaker
30 Amp Breaker
Engine
HP
2
Pump
CFM
7.4
CFM Rated @
100 PSI
CFM @ 40 PSI
8.3
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
148 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.6 Inches
Product Width
22 Inches
Product Height
47.8 Inches
Power Type
Electric
UPC
040232369414
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Joshua
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Joshua A.
Manuals
+−
+
Ask Joshua, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
Quincy 2-HP 24-Gallon (Belt Drive) Portable Air Compressor
×

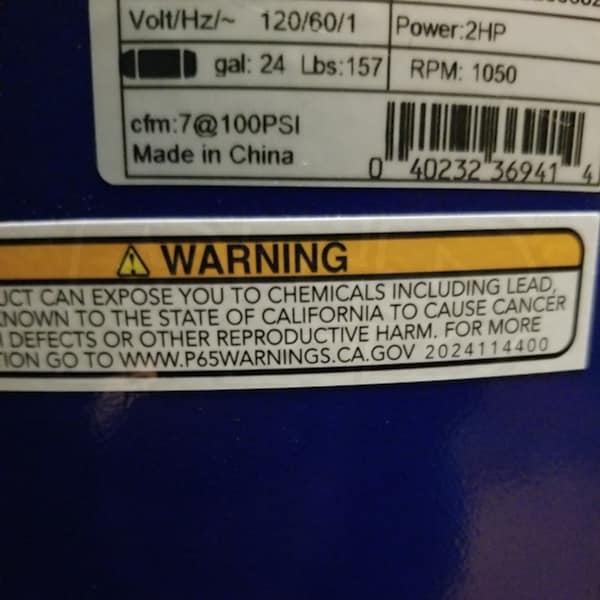

Customer Review Images
