VIAIR 275C 12-Volt 1.5-Gallon 120-PSI Fast-Fill Air Source Kit (25% Duty Cycle @ 100 PSI)

VIAIR 275C 12-Volt 1.5-Gallon 120-PSI Fast-Fill Air Source Kit (25% Duty Cycle @ 100 PSI)
Our Price
Compare Prices
Shipping Info
Model: 20003
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$203.99
$183.59
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$203.99$183.59Buy Now
$183.59Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
DC Compressors
CFM
.79
CFM Rated @ 90 PSI
Tank Size
1.5
Gallons
Grade
Contractor
CFM
.79 CFM Rated @ 90 PSI
Tank Size
1.5 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 12-Volt DC 120 PSI Air Source Kit Is Simple To Use
  • Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting
  • Fills 0 to 120 PSI in 2 minutes, 10 seconds (±10 sec); 90 to 120 PSI in 35 seconds (±5 sec)
  • Pre-Wired 90 PSI On / 120 PSI Off Pressure Switch
  • A 40-amp relay & appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch
  • 25% At 100 PSI Duty Cycle
  • Allows you to work for 15 minutes on, 45 minutes off; run in a well ventilated area
  • Automatic Thermal Overload Protector
  • Protects the compressor from overheating & damage from excessive use
  • 150 PSI-Rated 1.5 Gallon Air Tank With 5 Ports

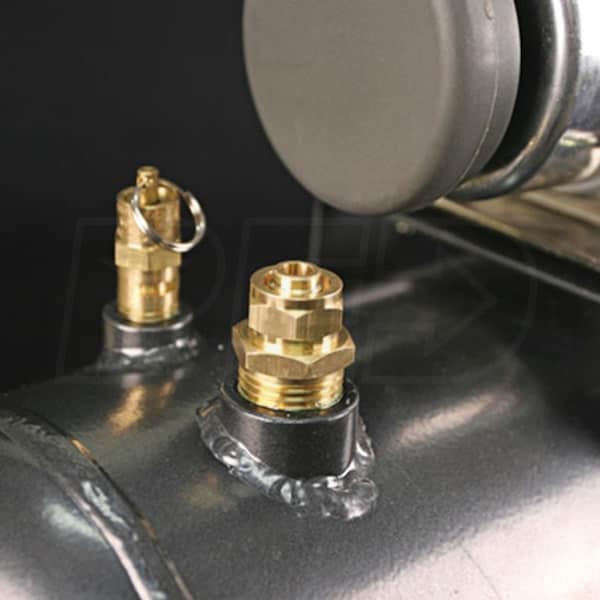

  • 1/4” NPT ASME safety valve set for 145 PSI; 120 PSI max working pressure
  • 1/4” NPT brass drain cock for easy maintenance
  • 1/2” NPT Port Compression Fitting
  • 3/8” (I.D.) air line connector & leader hose is pre-installed for simple hose hookup
  • Dependable Permanent Magnetic Motor
  • Vehicle engine must be running during operation to maintain performance & prevent amp spikes from harming the system
  • Compact & Versatile
  • Weighs only 15.65 pounds, measures 15.2″L x 5.9″W x 12.8″H to suit a wide variety of applications
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
19
Pump
CFM
.79
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
25%
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Weight
15.65 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
15.2 Inches
Product Width
5.9 Inches
Product Height
12.8 Inches
Power Type
Electric
UPC
818114002007
Grade
Contractor
Style
DC Compressors
CFM
.79
CFM Rated @ 90 PSI
Tank Size
1.5
Gallons
Grade
Contractor
CFM
.79 CFM Rated @ 90 PSI
Tank Size
1.5 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 12-Volt DC 120 PSI Air Source Kit Is Simple To Use
  • Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting
  • Fills 0 to 120 PSI in 2 minutes, 10 seconds (±10 sec); 90 to 120 PSI in 35 seconds (±5 sec)
  • Pre-Wired 90 PSI On / 120 PSI Off Pressure Switch
  • A 40-amp relay & appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch
  • 25% At 100 PSI Duty Cycle
  • Allows you to work for 15 minutes on, 45 minutes off; run in a well ventilated area
  • Automatic Thermal Overload Protector
  • Protects the compressor from overheating & damage from excessive use
  • 150 PSI-Rated 1.5 Gallon Air Tank With 5 Ports
  • 1/4” NPT ASME safety valve set for 145 PSI; 120 PSI max working pressure
  • 1/4” NPT brass drain cock for easy maintenance
  • 1/2” NPT Port Compression Fitting
  • 3/8” (I.D.) air line connector & leader hose is pre-installed for simple hose hookup
  • Dependable Permanent Magnetic Motor
  • Vehicle engine must be running during operation to maintain performance & prevent amp spikes from harming the system
  • Compact & Versatile
  • Weighs only 15.65 pounds, measures 15.2″L x 5.9″W x 12.8″H to suit a wide variety of applications
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
19
Pump
CFM
.79
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
25%
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Weight
15.65 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
15.2 Inches
Product Width
5.9 Inches
Product Height
12.8 Inches
Power Type
Electric
UPC
818114002007
Product Specs
+
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
19
Pump
CFM
.79
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
25%
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Weight
15.65 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
15.2 Inches
Product Width
5.9 Inches
Product Height
12.8 Inches
Power Type
Electric
UPC
818114002007
